Table 12 on page 21 describes the built-in Ethernet port LEDs.
Table 12: SRX210 Services Gateway Built-In Ethernet Port LEDs
DescriptionStateColorFunctionNumber
Link is active. Data
communication is taking place.
BlinkingGreenTX/RX/LINK
LED
1
Link is active. No data
communication is taking place.
Steady
Link is inactive.OffUnlit
Power over Ethernet is on and the
connected power device is
receiving power.
SteadyGreenPoE LED2
PoE (Power over Ethernet) is on,
but the connected power device
is not receiving power (device
fault or not enough power).
SteadyYellow
PoE is off.OffUnlit
NOTE: The PoE LED is enabled only on the Power over Ethernet (PoE) model
of the SRX210 Services Gateway. For non-PoE models, the PoE LED remains
off.
Voice Interface Port LEDs
On the SRX210 Services Gateway, each Voice Interface (FXO and FXS) port has a single
LED indicating the status.

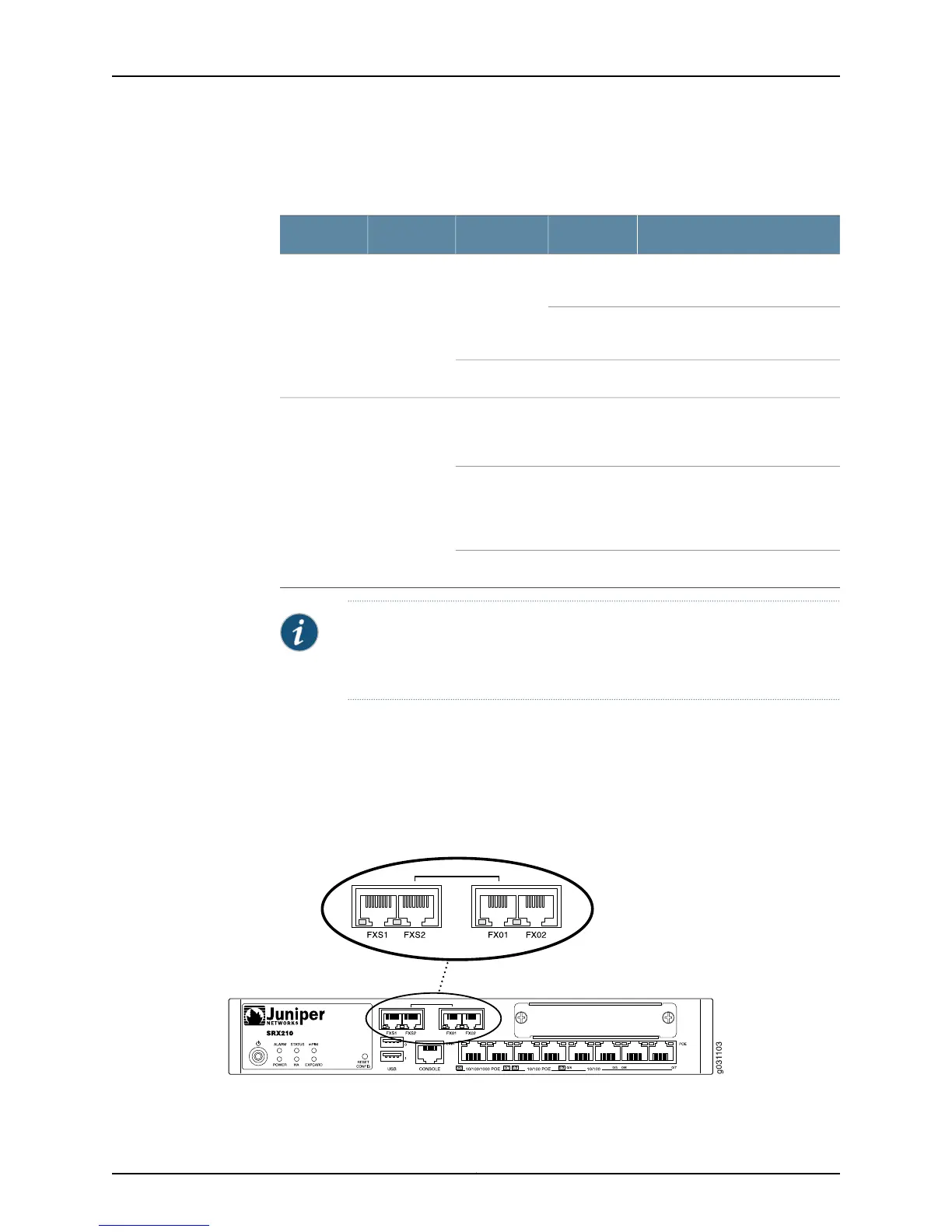

Figure 9 on page 21 shows the SRX210 Services Gateway Voice Interface port LEDs.
Figure 9: SRX210 Services Gateway Voice Interface Port LEDs
Table 13 on page 22 describes the Voice Interface port LEDs.
