Installing the SRX210 Services Gateway on a Wall
You can install the SRX210 Services Gateway on a wall.
NOTE: The wall-mounting kit is not shipped with the device and must be
ordered separately.
To install the device on a wall:
1. Place the device on a flat and level surface with Juniper Networks logo embossed on
the top cover facing up. Ensure that rubber feet are attached to the bottom of the
chassis.
2. Position a mounting bracket on each side of the chassis as shown in Figure 23 on
page 76.

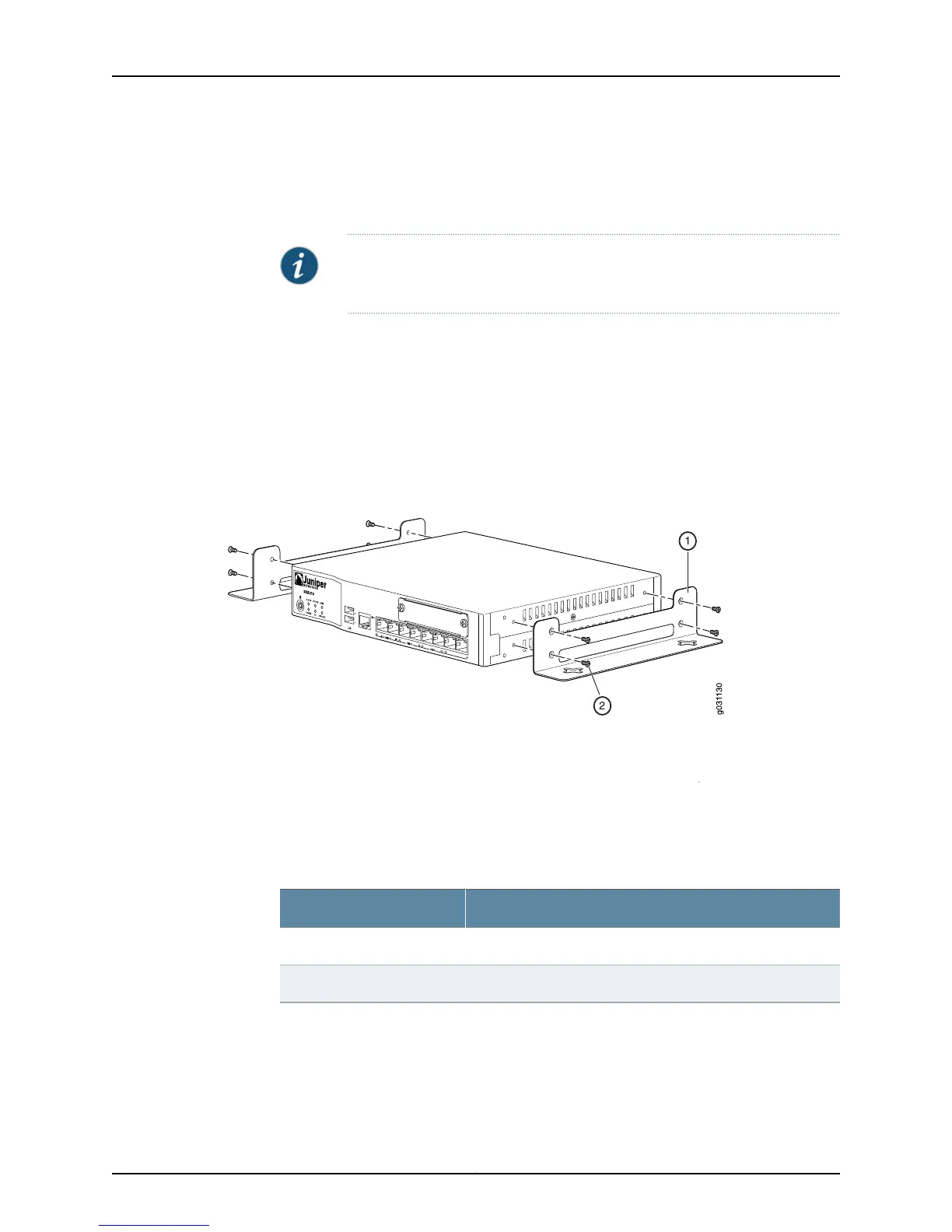

Figure 23: SRX210 Services Gateway Wall Installation — Attaching
Mounting Brackets
Table 32 on page 76 lists the parts used for installing the SRX210 Services Gateway
on a wall. The numbers in Figure 23 on page 76 correspond to the numbers in Table
32 on page 76.
Table 32: SRX210 Services Gateway Wall Installation Parts
PartNumbers
Mounting brackets1
Screws (mounting bracket)2
3. Use a number-1 Phillips screwdriver to install the screws that secure the mounting
brackets to the chassis.
4. If you are using wall anchors to support the chassis, install two pairs of anchors on
the wall with the mounting brackets attached.
Copyright © 2010, Juniper Networks, Inc.76
SRX210 Services Gateway Hardware Guide
