Figure 16 on page 71 shows the adjustments to the power supply adapter tray required
for the 150-watt power supply.

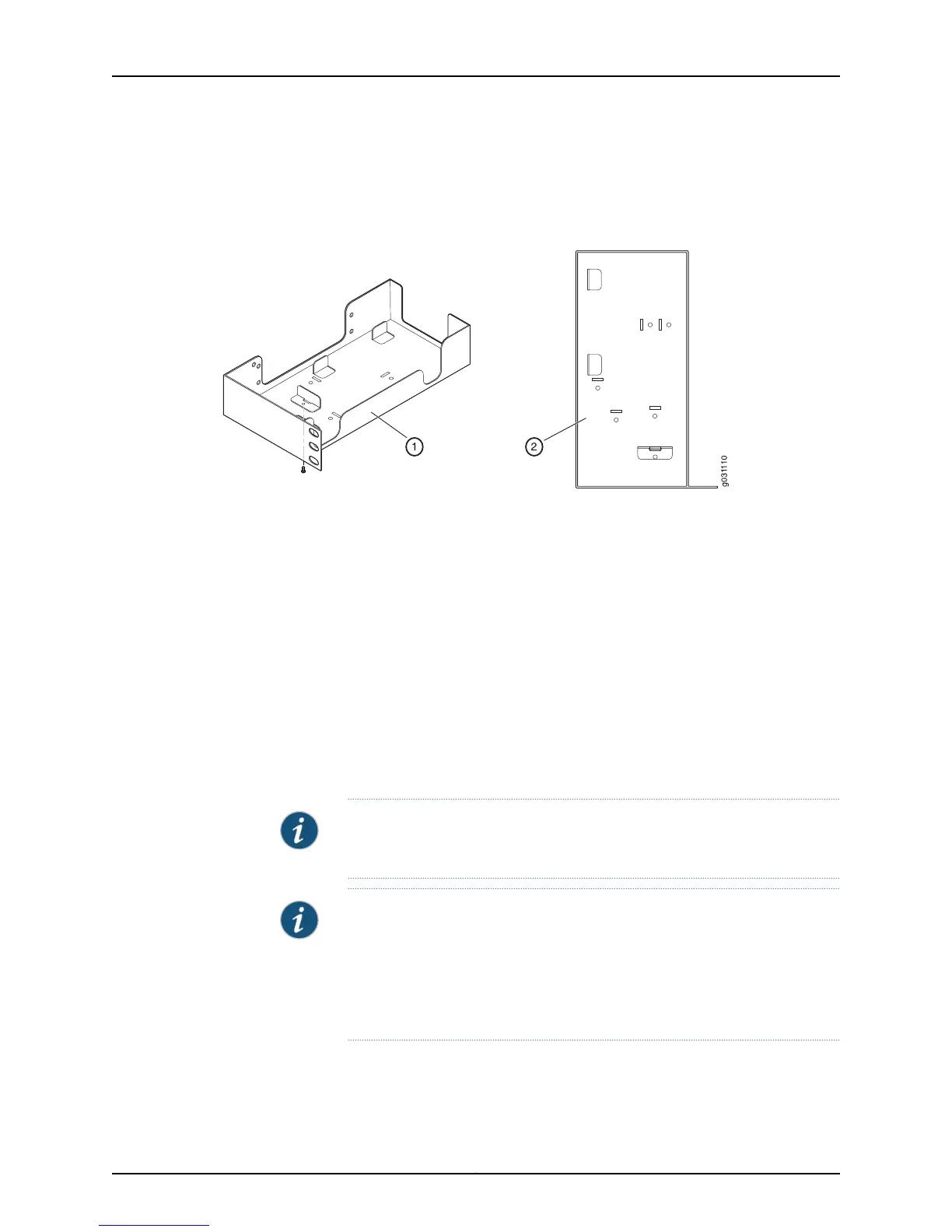

Figure 16: Adjusting the Power Supply Adapter Tray to Accommodate the
150-Watt Power Supply
1. Locations for the adapter stopper brackets in the power supply adapter tray
2. Fully configured power supply adapter tray
Related
Documentation
Preparing the SRX210 Services Gateway for Rack-Mount, Desk-Mount, and Wall-Mount
Installation on page 65
•
• Preparing the SRX210 Services Gateway for Rack-Mount Installation on page 65
Installing the SRX210 Services Gateway in a Rack
You can front-mount the SRX210 Services Gateway in a rack. Many types of racks are
acceptable, including four-post (telco) racks, enclosed cabinets, and open-frame racks.
For more information about the type of rack or cabinet the SRX210 Services Gateway
can be installed into, see “SRX210 Services Gateway Rack Requirements” on page 52.
NOTE: The rack-mounting kit is not shipped with the device and must be
ordered separately.
NOTE:
•
If you are installing multiple devices in one rack, install the lowest one first
and proceed upward in the rack.
•
Ensure that the rubber feet from the base of the chassis are removed for
rack installation.
