DCE80-100E
Technical Handbook
Transmission
Description
4
P.Group 40
TDCE01
04GB

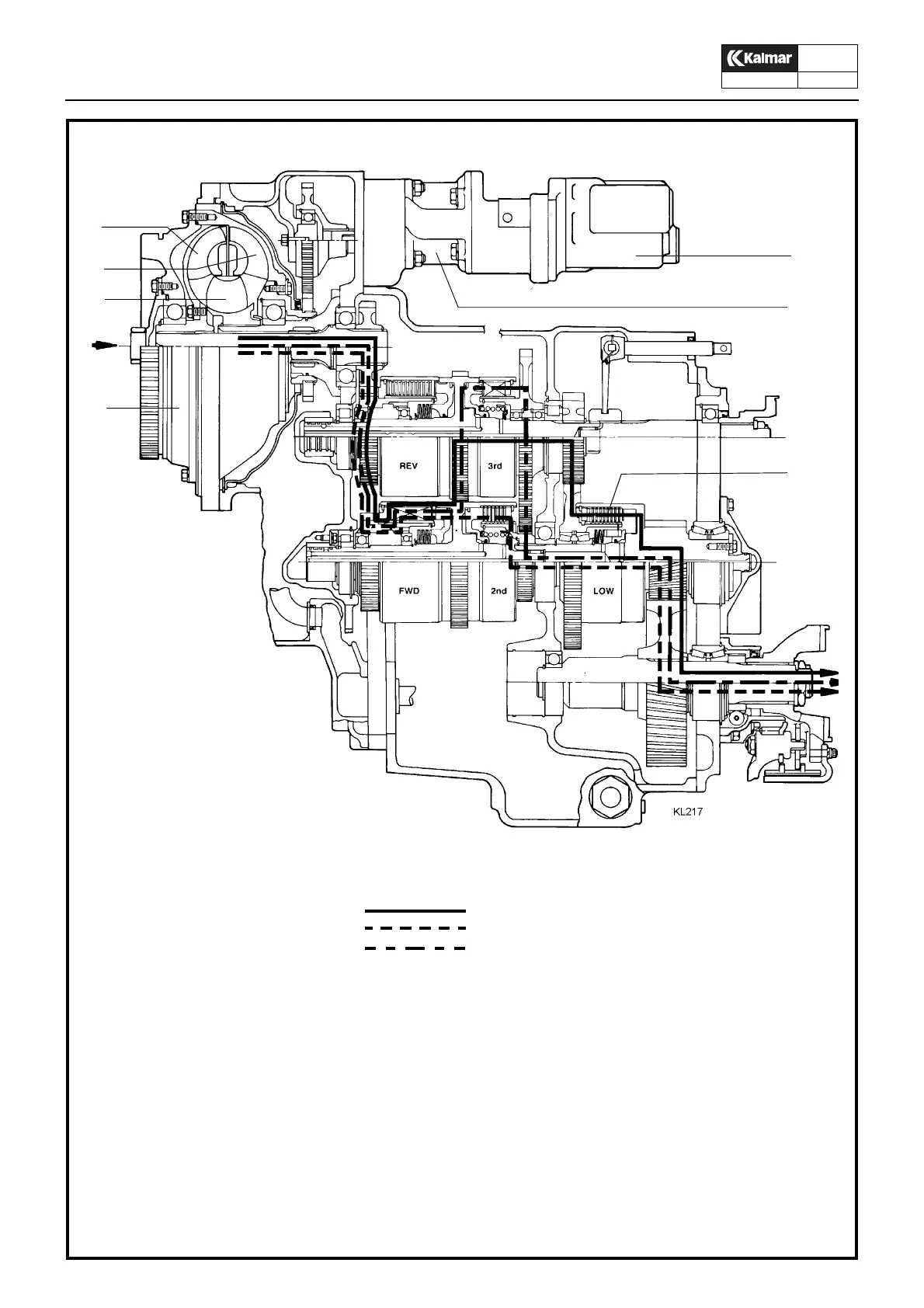

Gearbox Clark 28000/32000
KEY
1ST
2ND
3RD
1. Turbine wheel
2. Pump impeller
3. Stator
4. Torque converter
5. Oil filter
6. Oil pump
7. Clutch disc
1
2
3
4
5
6
7
