DCE80-100E
Technical Handbook
Transmission
Description
5
P.Group 40
TDCE01
04GB
The valve body mounted on the side of the gearbox includes
spool valves which guide the oil flow to the various clutches. The
spools, in turn, are electrically activated from the selector lever in
the cab. A mechanical gear-changing system is available as an
option.
The gearbox has three ratios in each direction and is also provid-
ed with disengagement, which is actuated by a separate inching
pedal at the left brake pedal and comes into operation at a certain
brake pressure.
The electrical gear-changing system is either manual or automat-
ical, see Group 20.
Clark 32000
Gear Activated
solenoids
F3 F
F2 F, 2
F1 F, 1, 2
N3 -
N2 2
N1 1, 2
R3 R
R2 R, 2
R1 R, 1, 2

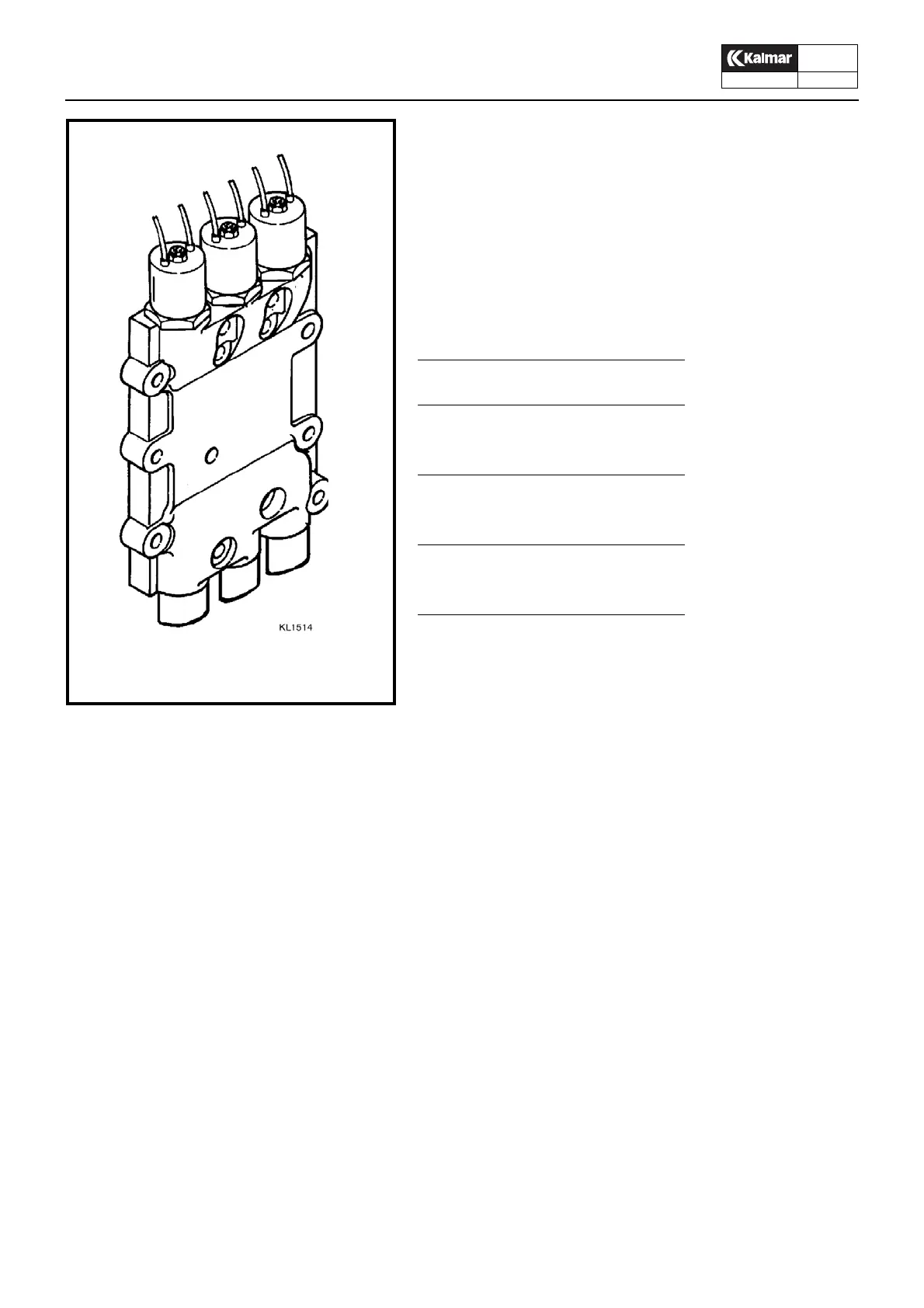

The gearbox valve housing,
Clark 32000
F
N
1
R
2
3
