Kalmar DCE80-100E - Page 232

DCE80-100E
Technical Handbook
Hydraulic cylinders
Service
40
P.Group 70
TDCE01
04GB

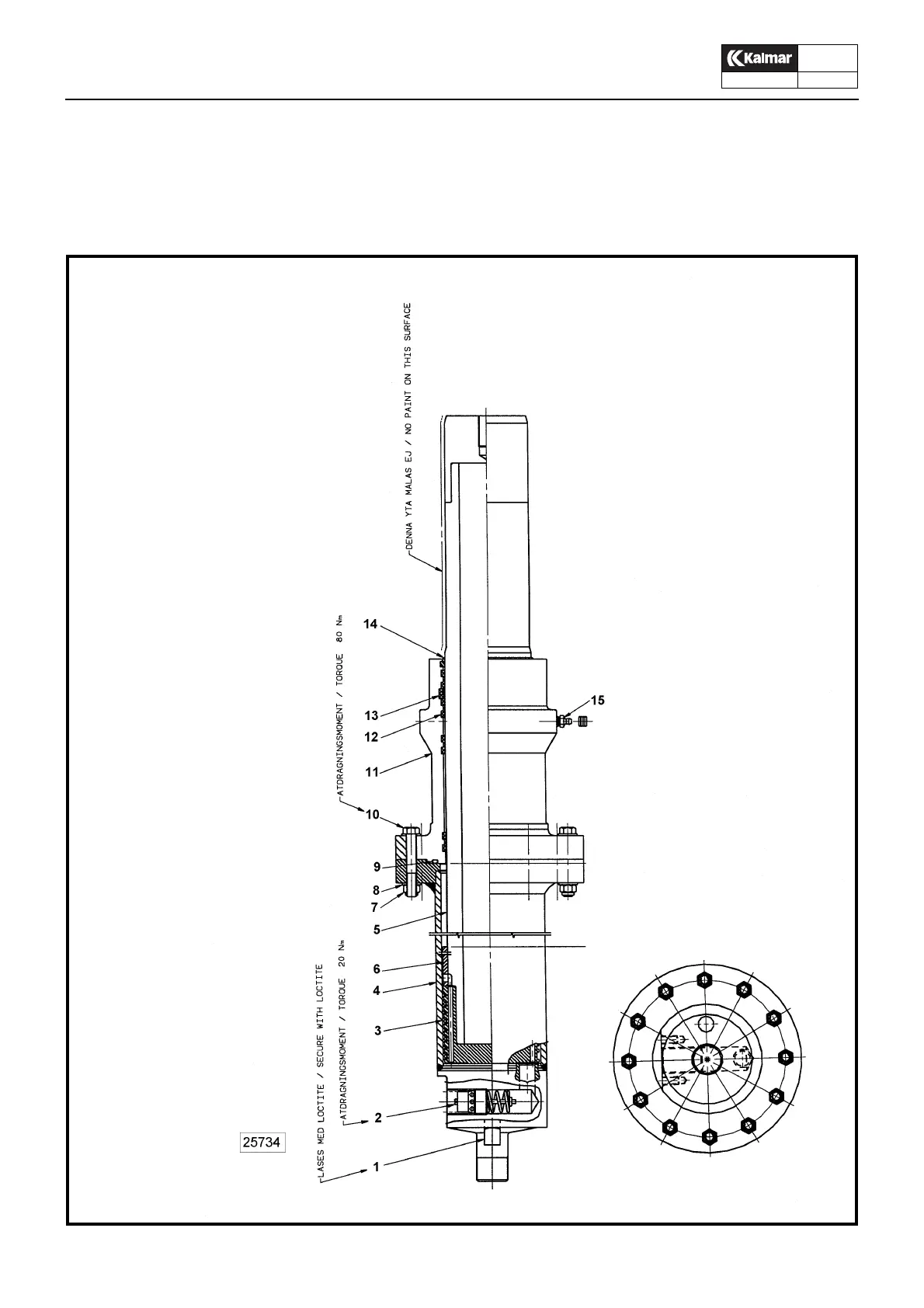

Lifting cylinder
1. The cylinder head is fitted ito the cylinder tube with 12
screws and nuts
2. Note that the lowering brake valve is integrated in the cylin-
der tube
1. Pin
2. Lowering brake valve
3. Piston rod guide
4. Cylinder tube
5. Piston rod tube
6. Spacer
7. Nut
8. Washer
9. O-ring
10. Screw
11. Cylinder head
12. Piston rod guide
13. Seal
14. Wiper
15. Air venting valve
Lift cylinder
