DCE80-100E
Technical Handbook
Hydraulic cylinders
Service
41
P.Group 70
TDCE01
04GB
Steering cylinder
1. The steering cylinder has a double-acting piston, with the
piston seal in the centre.
2. ,On each side of the cylinder tube there is a cyllinder head
which is fixed to the cylinder tube by means of a locking ring.
At disassembly, the O-ring could be jammed in the locking
ring groove thus making it very difficult to pull the piston out
of the cylinder tube. For instructions on disassembly, see
Supplement Technical Handbook, Hydraulic cylinders, publ
No. 920937-9279.

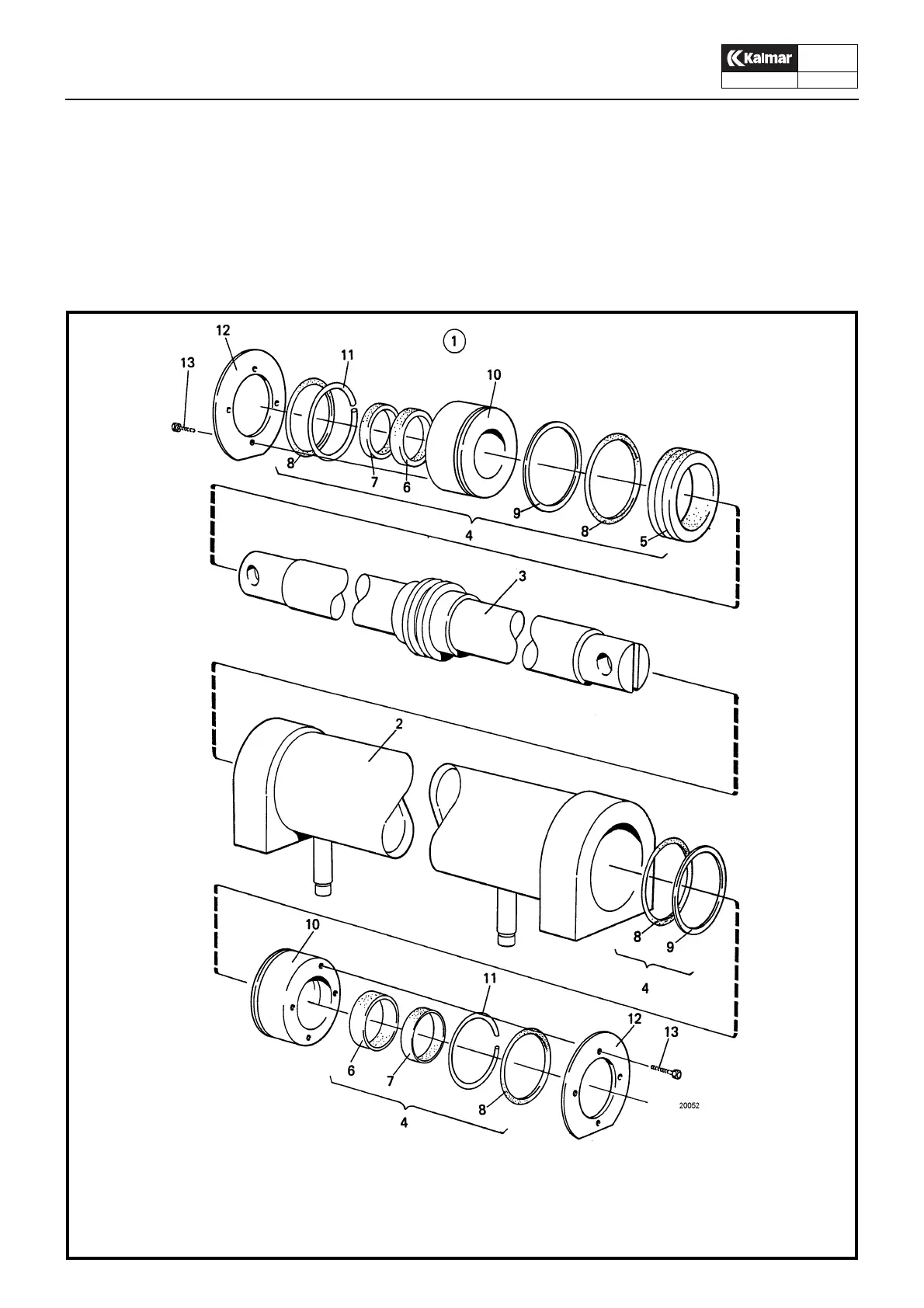

1. Steering cylinder
2. Cylinder tube
3. Piston rod
4. Seal kit
5. Piston seal
6. Seal
7. Wiper
8. O-ring
9. Back-up ring
10. Cylinder head
11. Locking ring
12. Washer
Steering cylinder
