DCE80-100E
Technical Handbook
Hydraulic cylinders
Service
42
P.Group 70
TDCE01
04GB

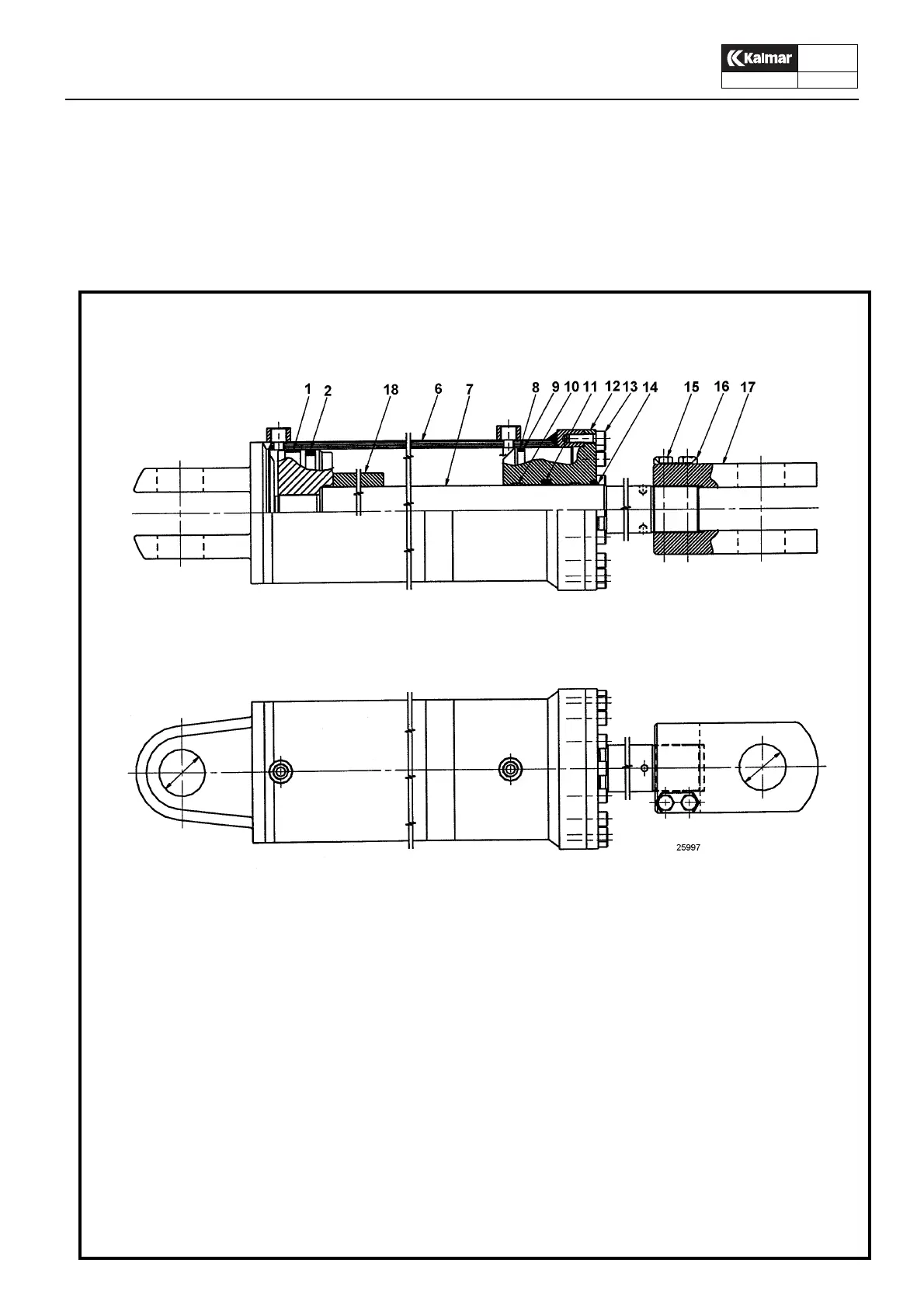

Tilt cylinder
1. The tilt cylinder is fitted with a clevis mounts. The piston rod
clevis is threaded onto the piston rod and is secured by lock-
nuts and locking plate.
2. The cylinder head is threaded and attached to the cylinder
tube with flange screws.
See also group 80 for Control of tilt cylinders
1. Guide
2. Piston seal
6. Cylinder tube
7. Piston rod
8. O-ring
9. Back-up ring
10. Guide
11. Piston rod seal
12. Cylinder head
13. Skruv
14. Wiper
15. Screw
16. Washer
17. Clevis mount
Tilt cylinder
