DCE80-100E
Technical Handbook
Mast and carriage
Description
5
P.Group 80
TDCE01
04GB

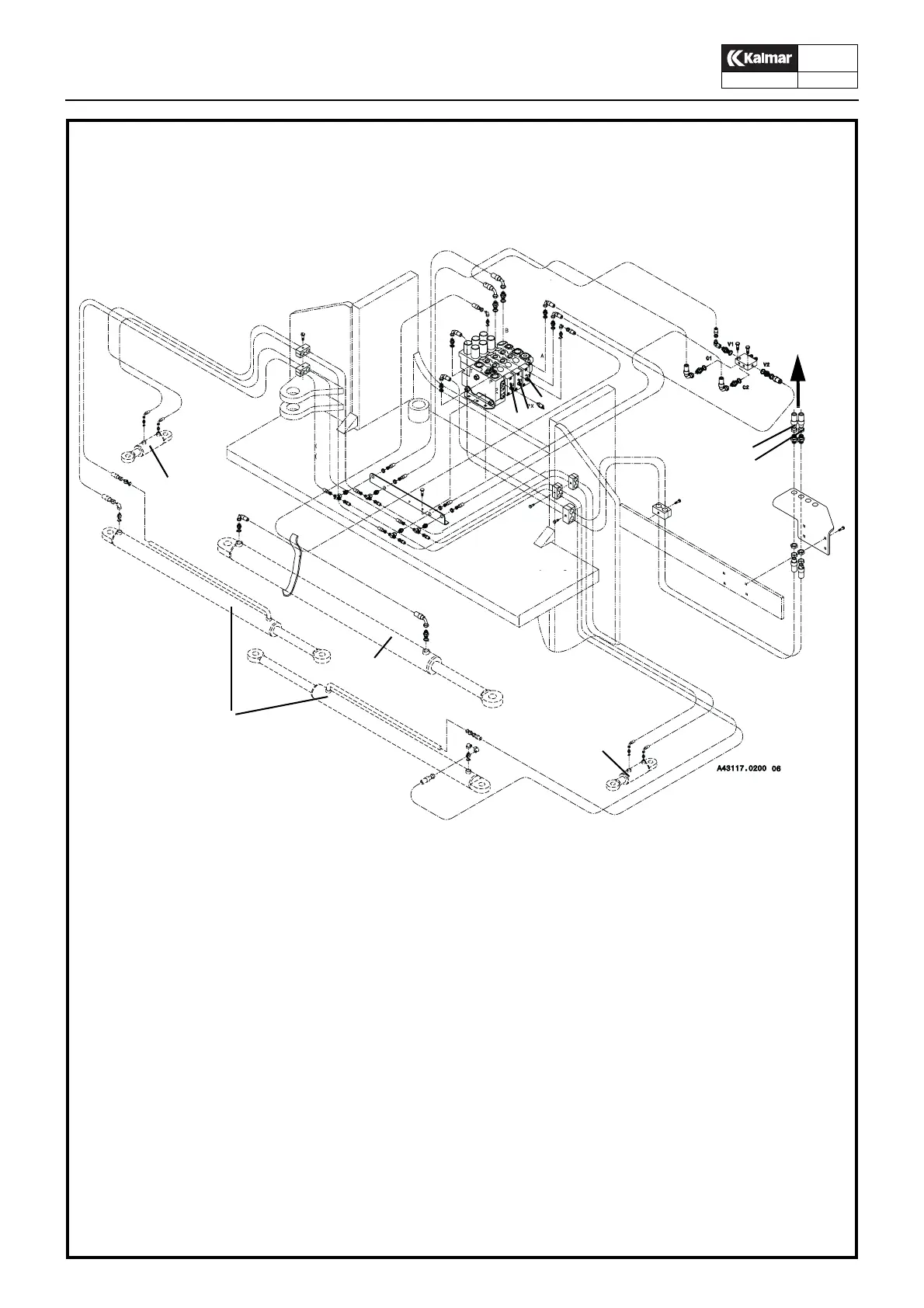

Hoses in carriage, Separate side-lift hydraulics
Carriage without levelling
1. Control valve, LENGTH ADJUSTMENT
2. Control valve, TWIST-LOCKS
3. Control valve, SIDESHIFT
4. RETURN from sidelift
5. FEED to sidelift
6. Hydraulic cylinder, TWIST-LOCKS/LOCKING PLATES
7. Hydraulic cylinder, SIDESHIFT
8. Hydraulic cylinder, LENGTH ADJUSTMENT
9. Hoses over mast
1
2
3
4
5
9
8
6
7
6
