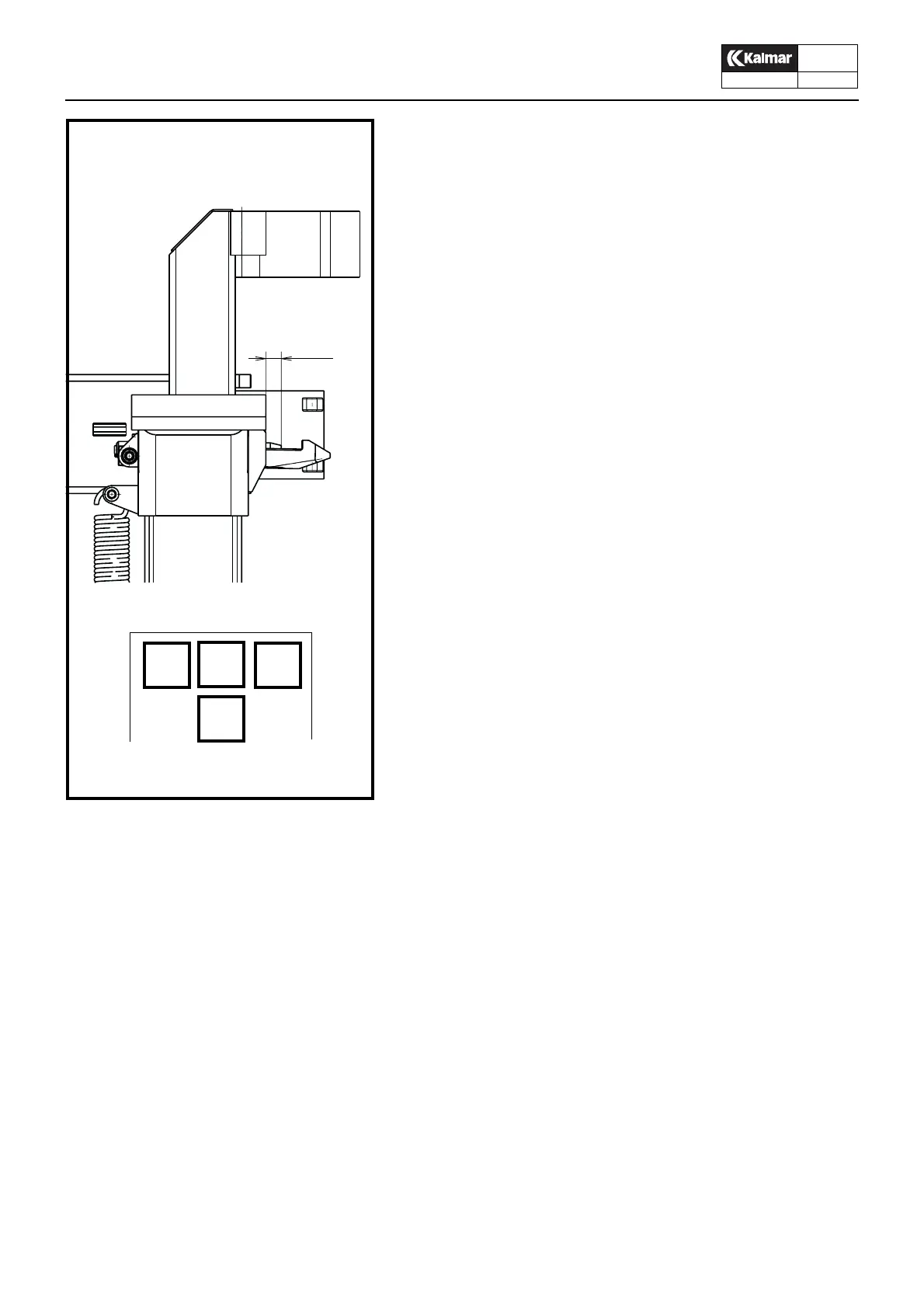

Control and adjustment of alignment against
container, hook attachment
1. Check the sensor for alignment and adjust if necessary.
2. The measure A over the contact pin in its outer position should
be 35 mm.
3. When the measure A is reduced to 28 mm, the lamp B2 for
alignment against the container should light up
4. Adjustment:
Depress the contact pin until the measure A = 28 mm and fix
in a suitable way. Then release the sensor from its bracket and
move it along the oval hole. Tighten the sensor in exact the
position it has reached when the lamp B2 lights up.
KL1809
A
A
B1
C
B2
