DCE80-100E
Technical Handbook
Sidelift attachment
Service
20
P.Group 80
TDCE01
04GB

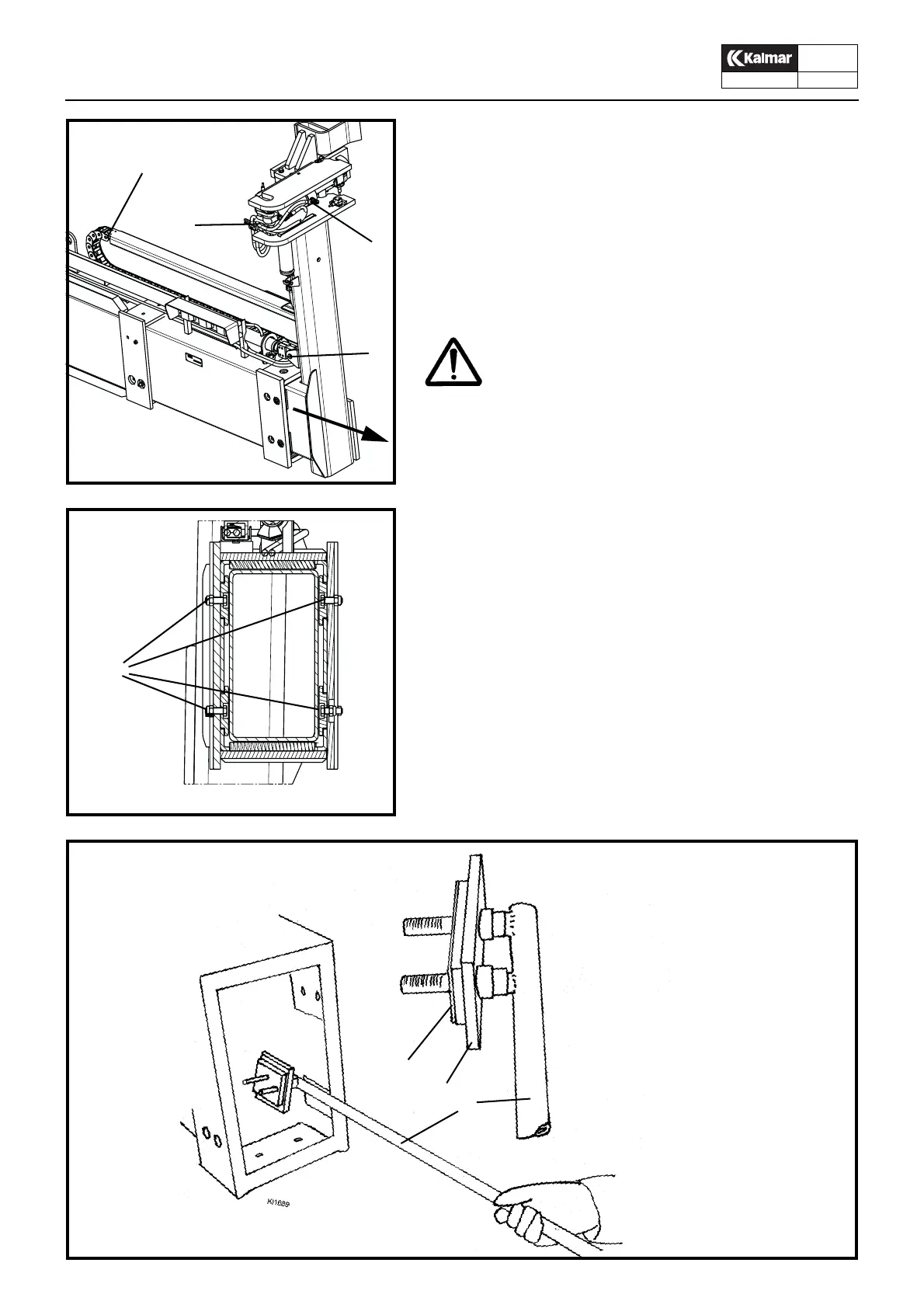

Changing the main beam sliding plates
Older main beam design
1. Release the piston rod from the extension beam.
2. Unscrew nuts and bolts from the cable chain.
3. Release the hoses from the locking cylinder. Plug the hoses
with end plugs.
4. Remove the hose clips.
5. Use a suitable lifting device and pull the extension beam out
of the main beam.
WARNING!
Be extremely careful when the extension beam gets clear
from the main beam
6. Unscrew nuts and bolts holding the sliding plates
See N.B. concerning special tool below.
N.B. In order to reach the inner sliding plates screws is
recommendable to use a tool as illustrated on the picture
below. The tools, one for side plates and one for bottom and
top plates can be ordered from Kalmar Industries.
KL1678
1
2
3
4
5
KL1681
6
1
2
1. Shims
2. Sliding plate
3. Tool for removing/fitting of
sliding plates
3
