DCE80-100E
Technical Handbook
Sidelift attachment
Service
21
P.Group 80
TDCE01
04GB

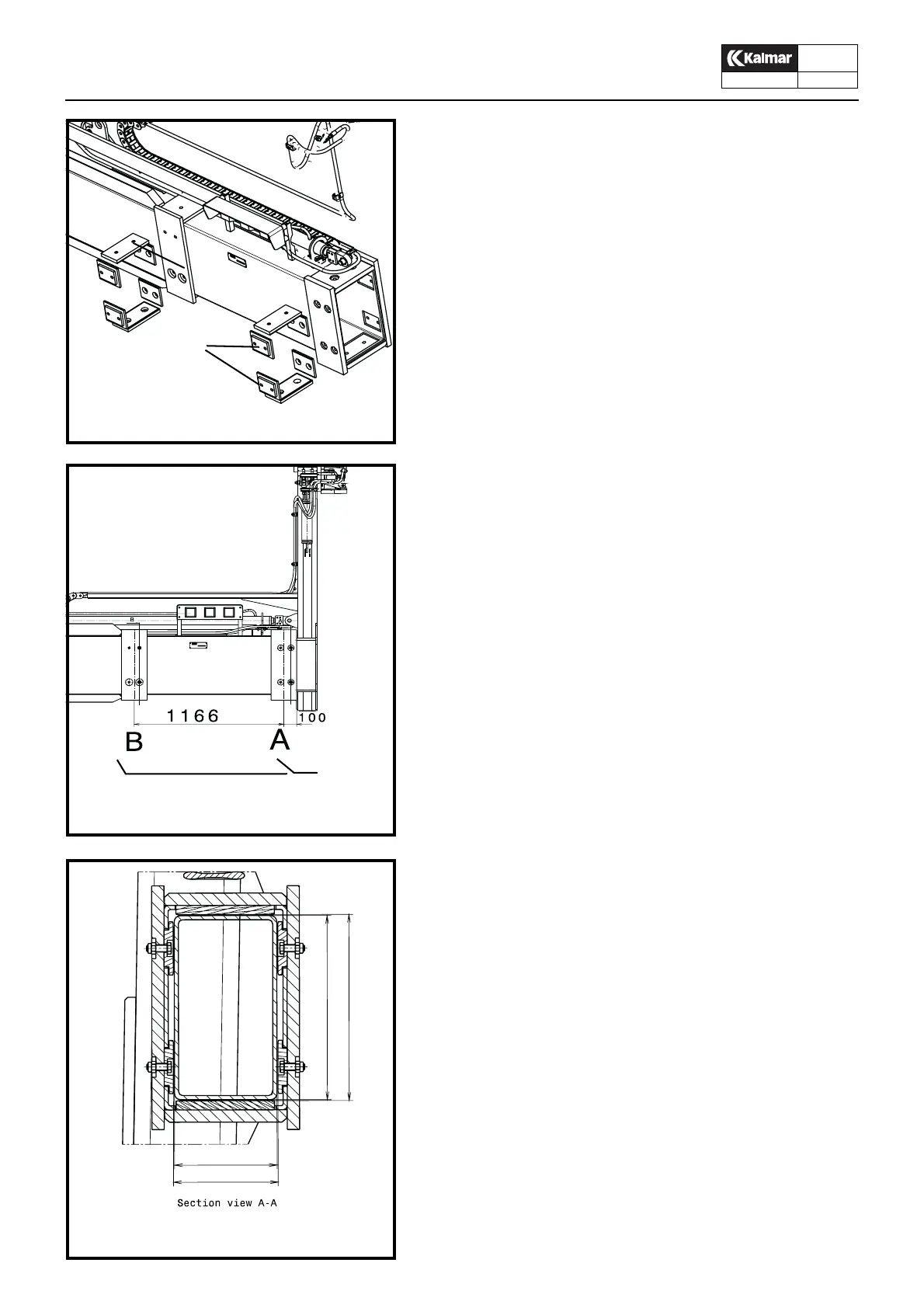

7. Remove sliding plates and shims from the main beam.
8. Measure the extension beam’s width X and height Y at the
sliding plate positions, see picture, measuring position A and
B.
9. Refit the sliding plates and put a sufficient number of shims
under the sliding plates in order to achieve a 5 mm play be-
tween sliding plates and main beam both sideways and ver-
tically. This corresponds to the measures
X + 5 mm and Y + 5 mm inside between the sliding plates.
10. Push the extension beam into the main beam and refit 1-2-
3-4.
7
8
KL1682
X
X + 5 mm
Y
Y + 5mm
