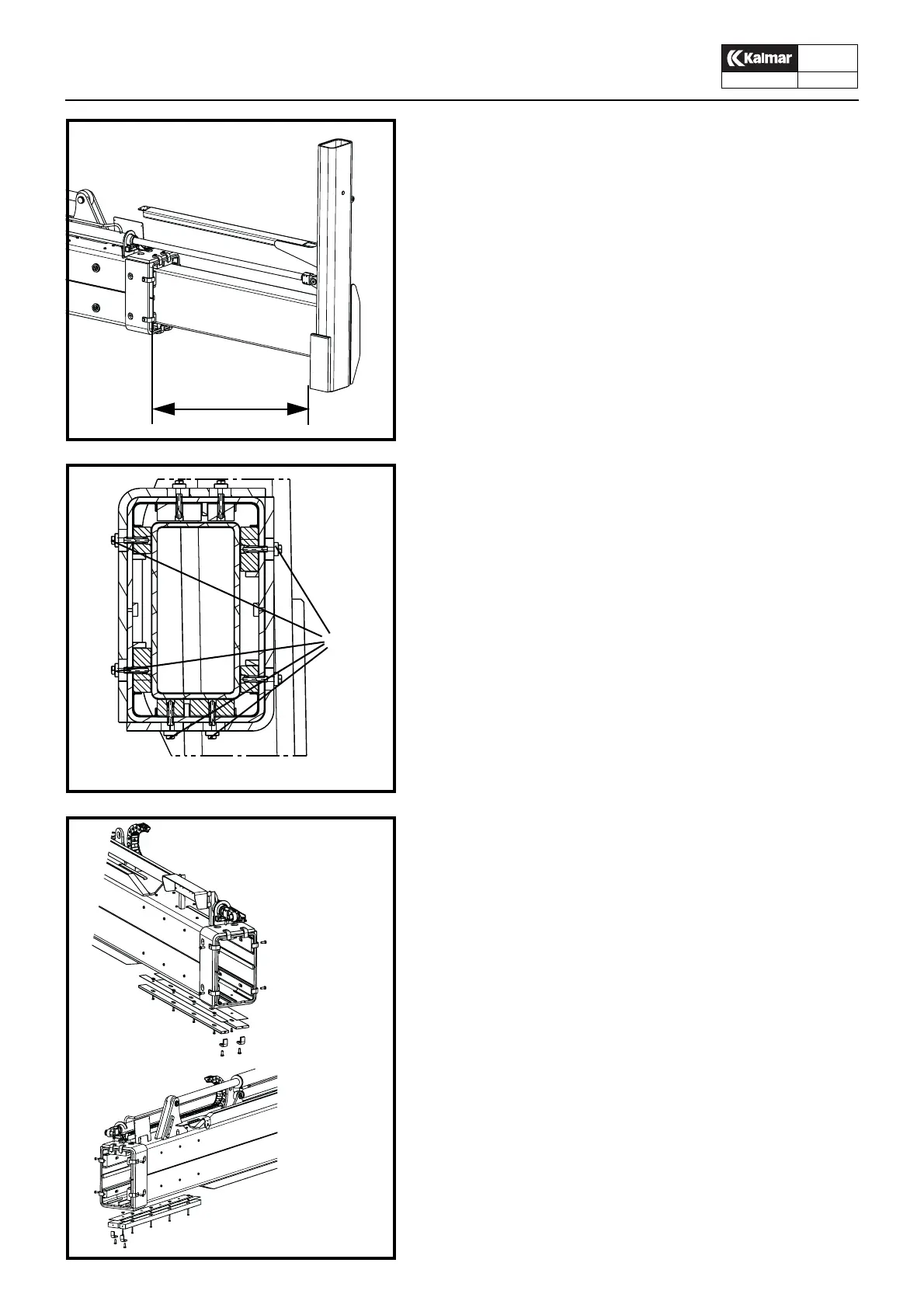

Changing the main beam sliding plates .
New main beam design from 2005
1. Using the LENGTH ADJUSTMENT function, extend the inner
beam approx 1000 mm.
No cables or hoses have to be disconnected..
2. Unscrew screws and nuts holding the sliding plates.
3. Remove the sliding plates and shims from the main beam.
Lift the inner beam slightly to relieve the load from the sliding
plates.
KL1797
1000 mm
KL1798
2
KL1799
KL1800
Right side
Left side
