Sidelift with hooks, type C
The sidelift attachment has been designed for easy, safe and rap-
id handling, good visibility, low weight and ease of maintenance.
The attachment is integrated with the carriage.
The attachment has hooks for container connection allowing for
the simultaneous lifting of two containers.
A hydraulic cylinder between the attachment and the carriage al-
lows ±600 mm side-shift.
A system with hydraulically controlled side locking plates ensures
that the container is locked onto the sidelift prior to lifting. When
lifting two containers, both are locked by the side locking plates..
A lamp panel displays alignment, locked and released container
respectively.
For lever functions, see instruction Manual.

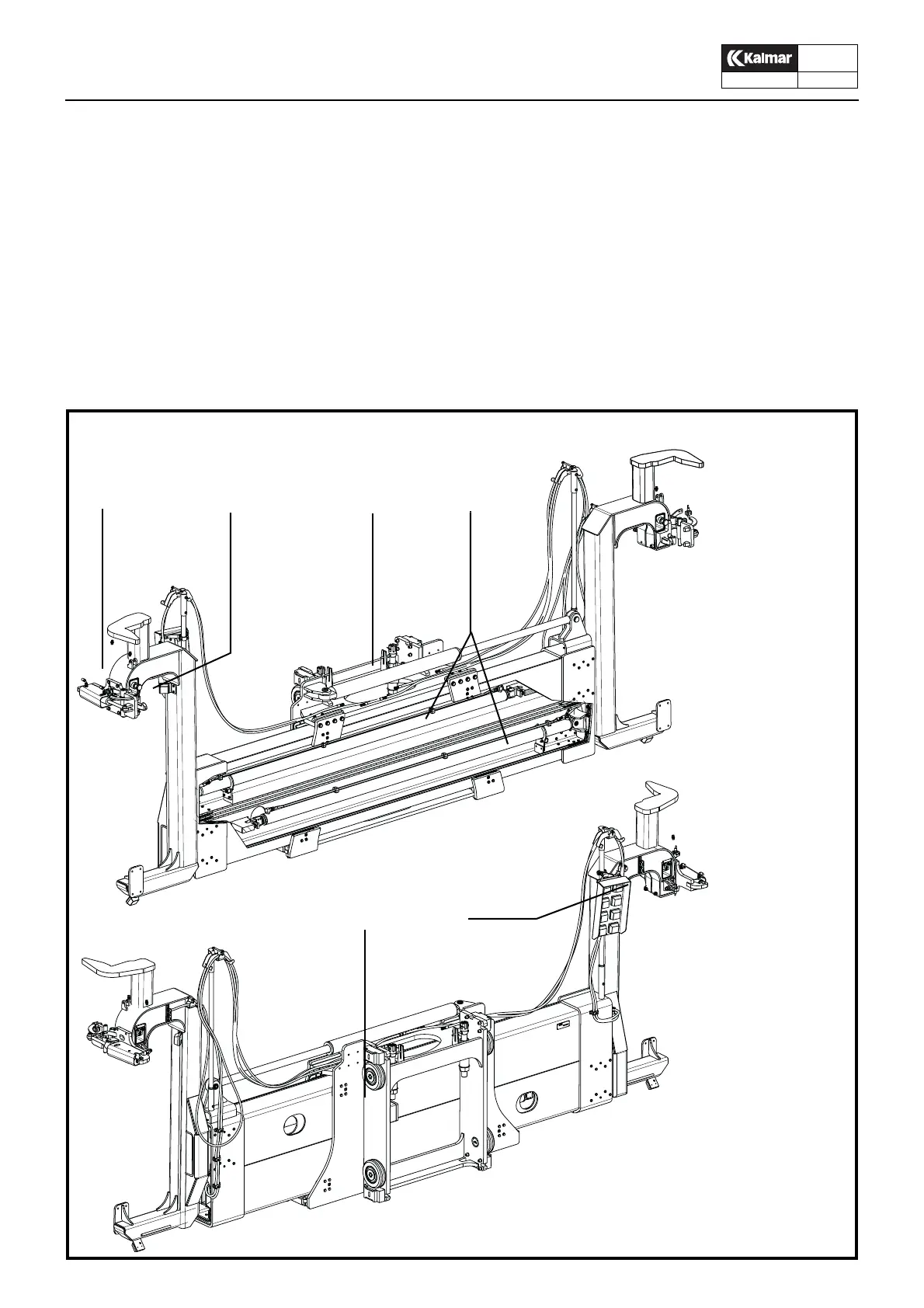

KL1790
1. Side locking plate with
hydraulic cylinder
2. Lifting hook
3. Hydraulic cylinder,
sideshift
4. Hydraulic cylinder.
length adjustment
5. Carriage
6. Lamp panel
12
3 4
5
6
