Changing the main beam sliding plates

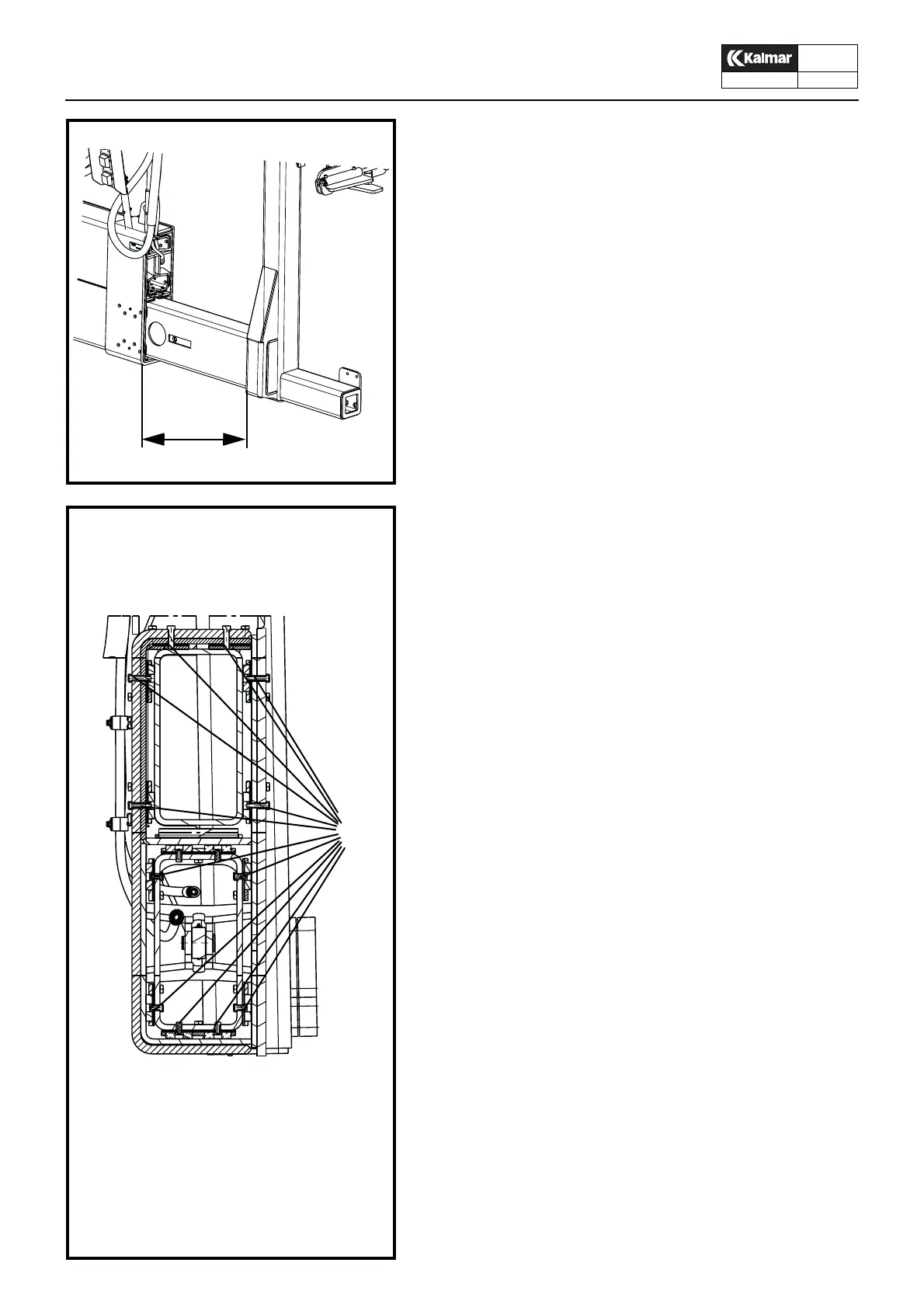

1. Using the LENGTH ADJUSTMENT function extend the inner
beam 1000 mm.
2. Unscrew screws and nuts that hold the sliding plates.
.
KL1803
1000 mm
