Sidelift, hooks, type C
Service
30
P.Group 80
TDCE01
04GB

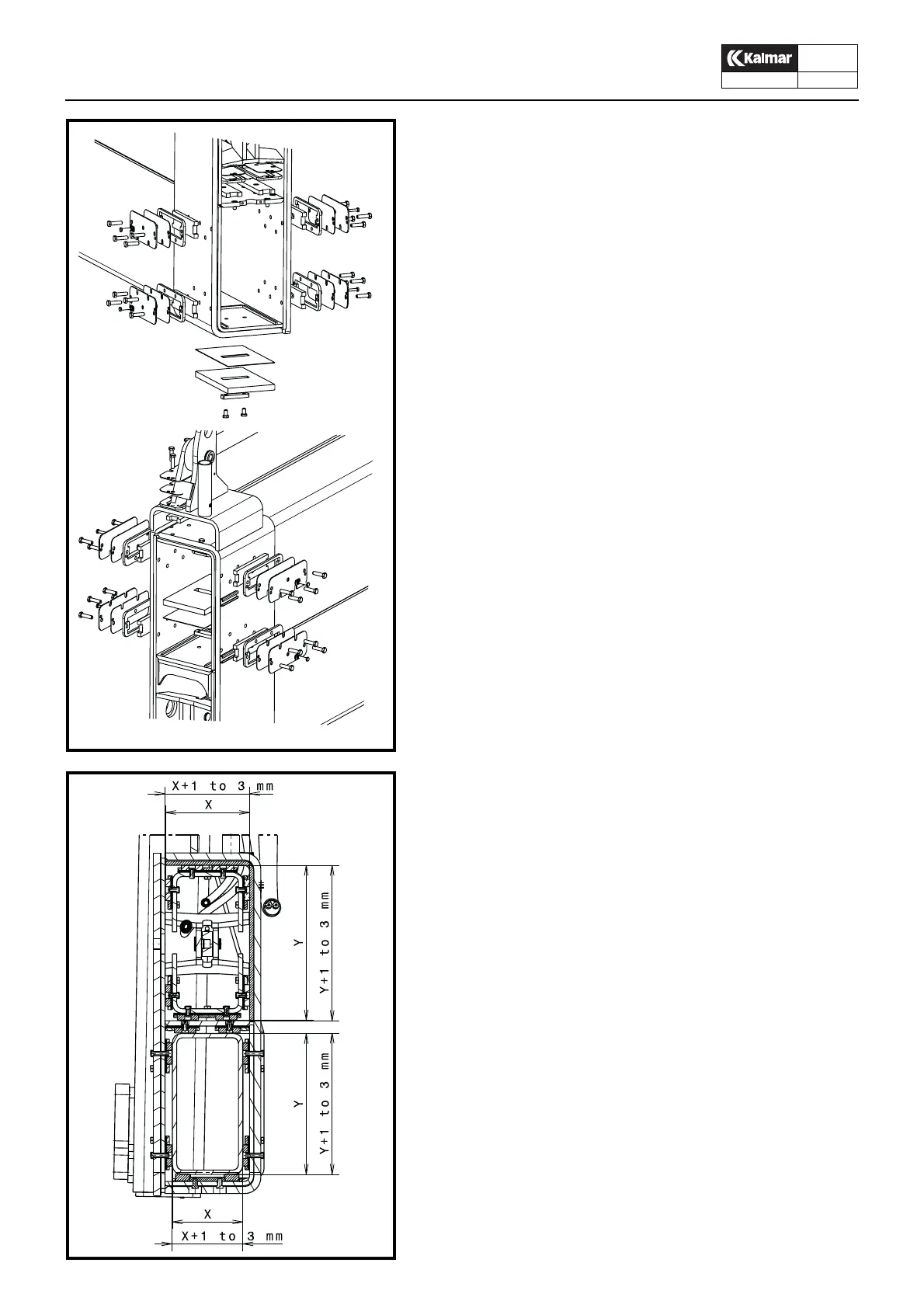

3. Remove sliding plates ans shims from the main beam..
Lift the inner beam slightly to relive the load from the sliding
plates.
4. Reinstall the sliding plates. Fit sufficient number of shims un-
der the sliding plates to achieve 1-3 mm clearance between
sliding plates and main beam both horisontally and vertically.
This corresponds to the inside measures between the sliding
plates X + (1-3) mm and Y + (1-3) mm.
5. Skjut in utskjutningsdelen i huvudbalken med hjälp av funktio-
nen LÄNGDINSTÄLLNING.
KL1805
KL1806
Höger sida
Vänster sida
KL1807
