DCE80-100E
Technical Handbook
Electrical system
Description
4
P.Group 20
TDCE01
04GB
1. Sensor, warning lamp low oil pressure and gearbox oil pressure gauge
2. Sensor, warning lamp high oil temperatur and gearbox oil temperature gauge
3. Fuse
4. Relay preheater element
5. Sensor, coolant temp gauge
6. Sensor, high coolant temp warning lamp
7. Sensor, engine oil pressure instrument
8. Starter motor
9. Sensor, low coolant level warning lamp
10. Engine wiring

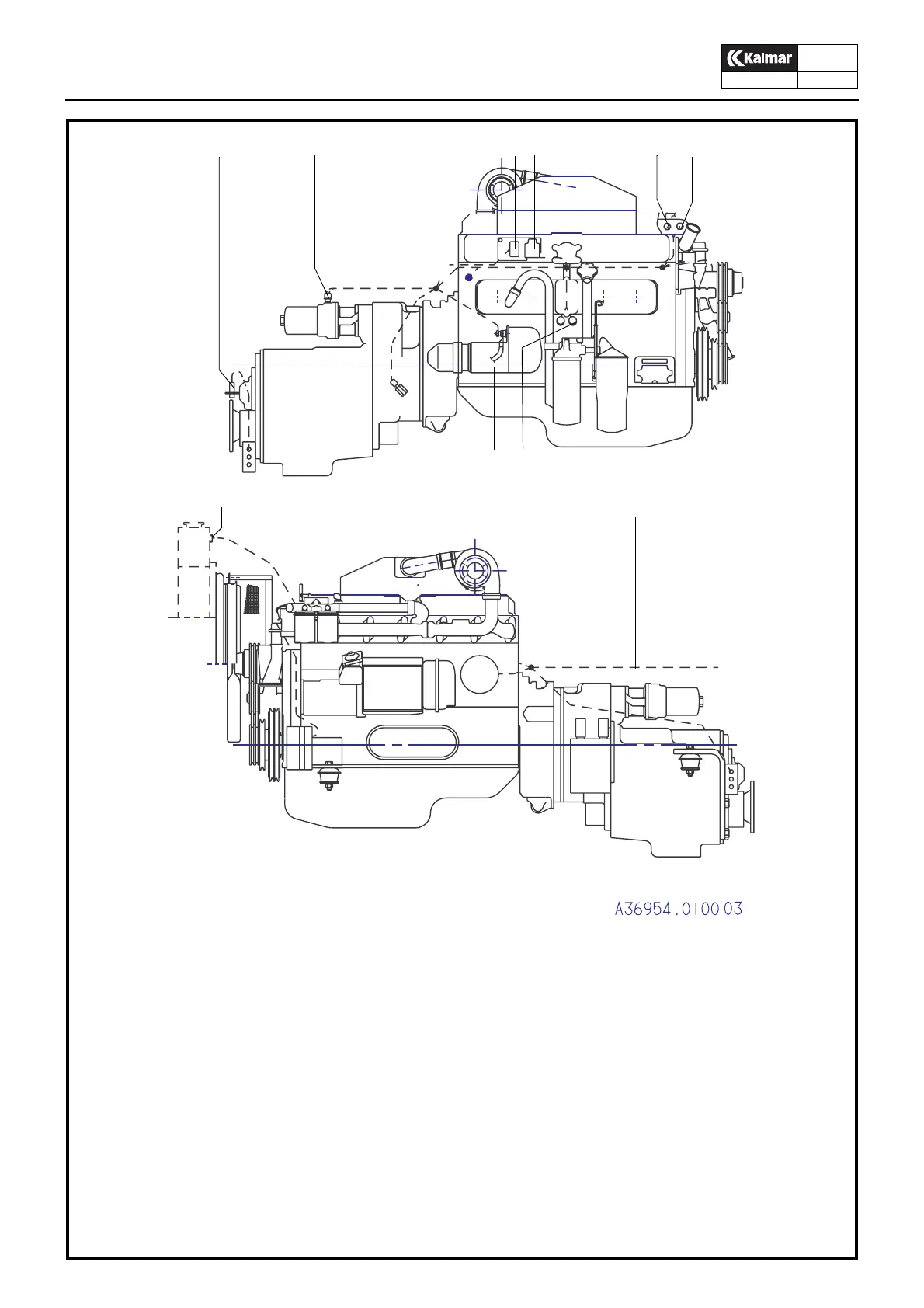

Electrical components, Volvo TWD731VE
12 34 56
78
910
