DCE80-100E
Technical Handbook
Electrical system
Description
5
P.Group 20
TDCE01
04GB

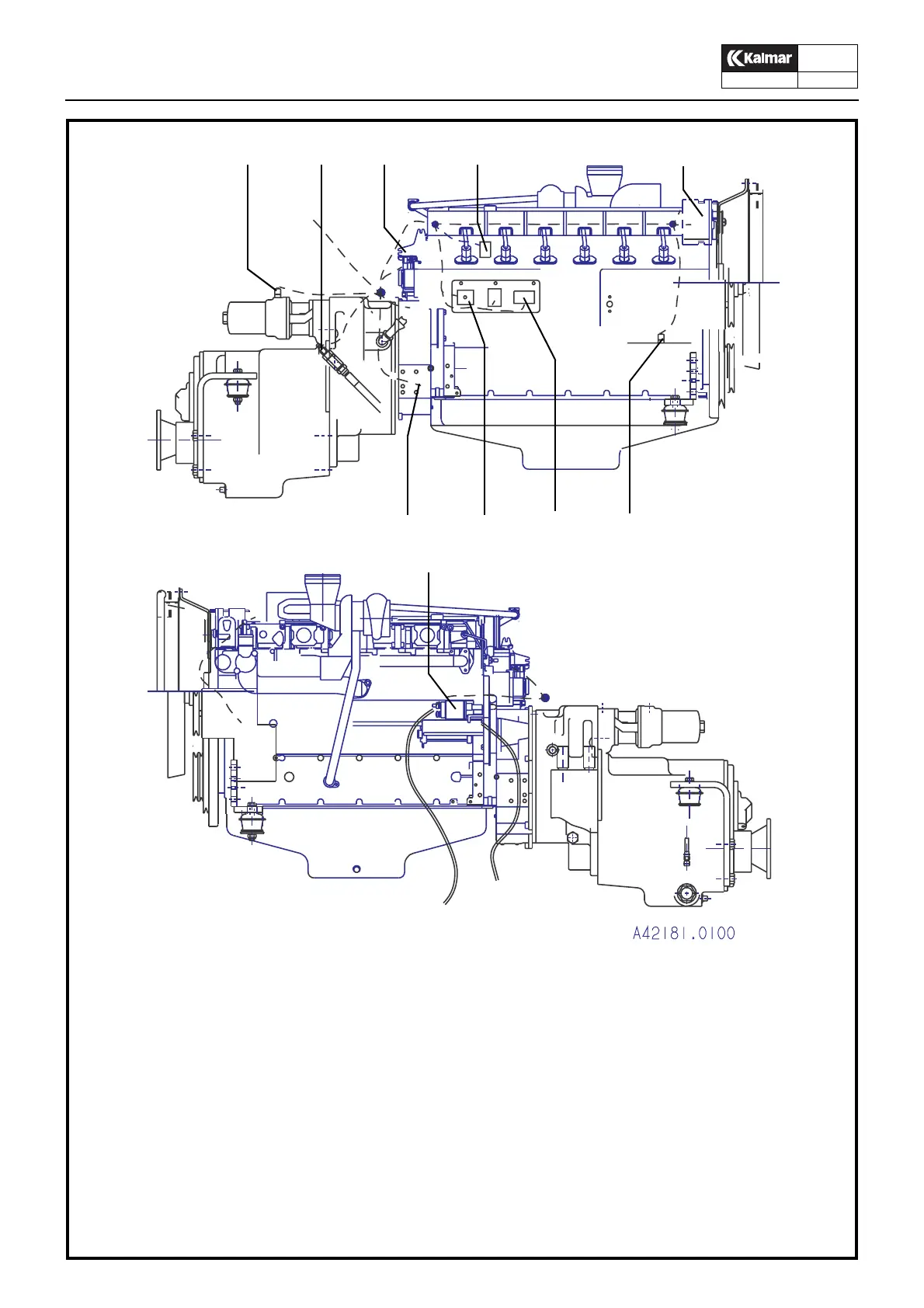

Electrical components, Volvo TAD720VE
1
1. Sensor, warning lamp low oil pressure and gearbox oil pressure gauge
2. Sensor, warning lamp high oil temperatur and gearbox oil temperature gauge
3. Sensor, coolant temp gauge
4. Solenoid, fuel shut off valve
5. Alternator
6. Sensor, engine oilpressure
7. Relay, preheater element
8. Main fuse
9. Sensor, outgoing engine speed
10. Starter motor
2 3 4 5
6789
10
