DCE80-100E
Technical Handbook
Electrical system
Description
6
P.Group 20
TDCE01
04GB

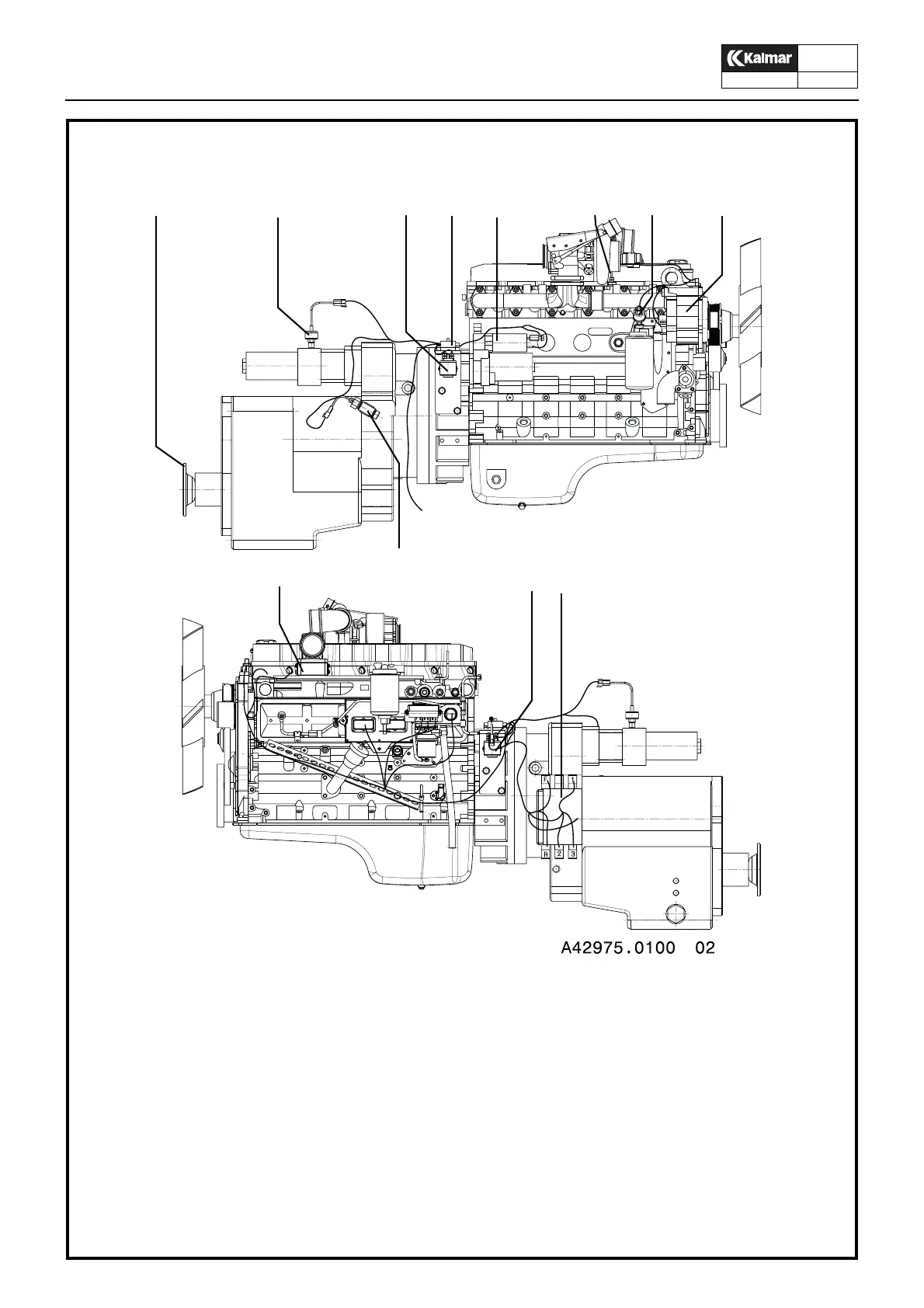

Electrical components, Cummins QSB 5.9
1. Sensor, outgoing speed gearbox.
2. sensor, warning lamp low oil pressure and gearbox oil pressure gauge
3. Starter motor relay
4. Main fuse
5. Starter motor
6. Sensor, coolant temperature gauge
7. Sensor, engine oil pressure
8. Generator
9. Sensor, warning lamp high oil temperature and gearbox oil temperature gauge
10. Preheater element
11. Sensor, outgoing engine speed
12. Solenoid valve housing,gearbox
1 2 3 4 5 6 7 8
9
10 11 12
