KCM 70Z7 - Switches, Steering Wheel and Pedals

OPERATOR'S STATION
1-40

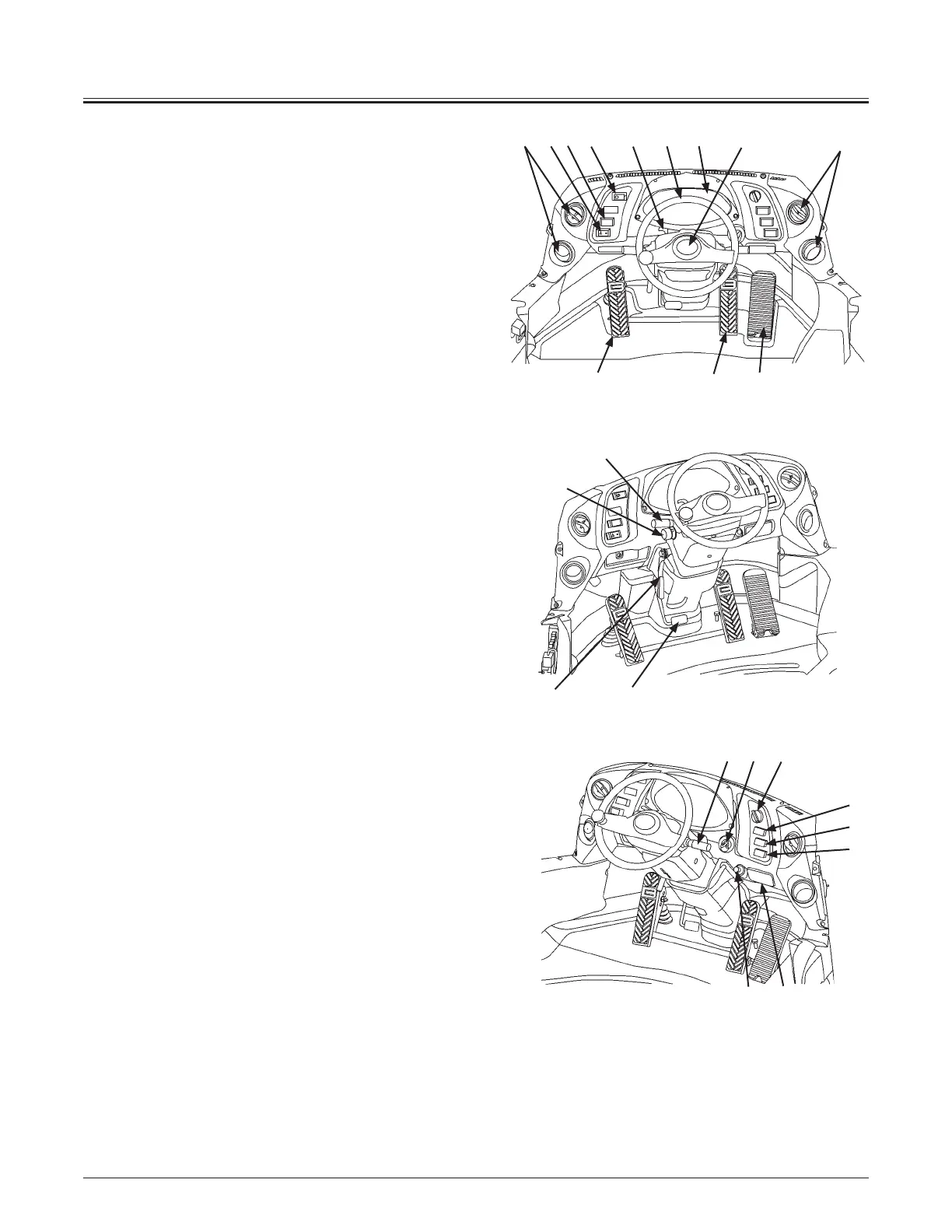

Switches, Steering Wheel and Pedals
1- Air Conditioner Front Vent
2- Hazard Switch
3- Work Light Switch
4- Parking Brake Switch
5- Neutral Lever Lock (Forward/Reverse Lever)
6- Steering Wheel
7- Monitor Panel
8- Horn Switch
9- Accelerator Pedal
10- Brake Pedal
11- Front/Rear Window Wiper Switch
12- Forward/Reverse Lever/ Shift Switch
13- Steering Column Tilt Pedal
14- Tilt, Telescopic Lever
15- Turn Signal Lever/ Light Switch/ High-Low Beam Switch
16- Key Switch
17- Travel Mode Selector
18- Auto Idling Stop Switch
19- Declutch position Switch
20- Shift Change Delay Mode Switch
21- Ash Tray
22- Cigar Lighter
23- Brake/Declutch Pedal
