OPERATING THE MACHINE
5-1

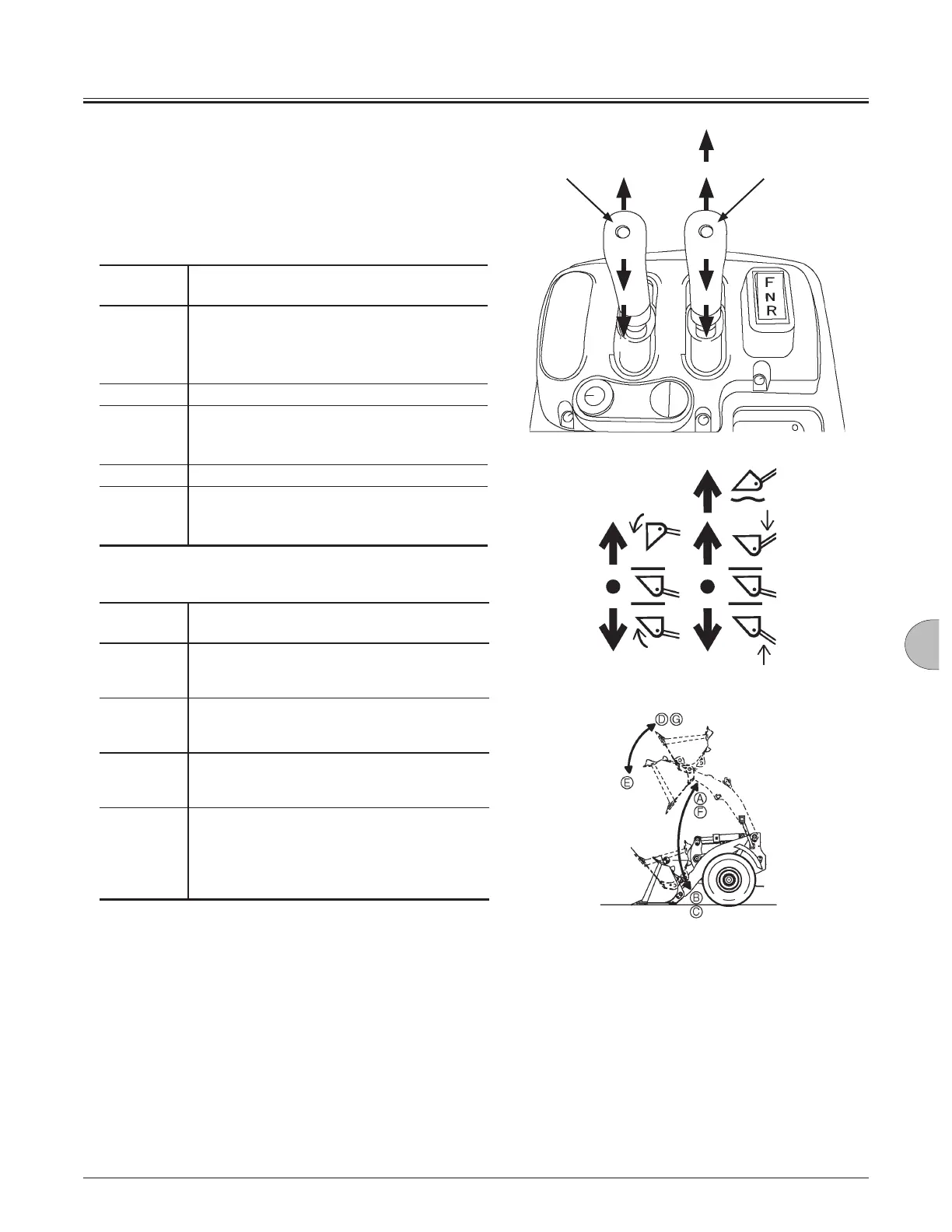

Loading Control Levers
Fingertip Control Type
The fingertrip control lever is used to operate the lift arm
and/or bucket.
Lift Arm Control Lever (1)
Lever
Position
Lift Arm Operation
C
Float (Detent):
The lift arm free falls and can be moved as
loads are applied. The lever will stay in this
position.
B Lift Arm Lower
N
Hold:
The lift arm is stopped and held in that
position.
A Lift Arm Raise
F
Detent:
The lift arm is held in the raise position with
the detent.
Bucket Control Lever (2)
Lever
Position
Bucket Operation
E
Bucket Dump:
The bucket is tilted forward to dump the
bucket.
N
Hold:
The bucket is stopped and held in that
position.
D
Bucket Tilt (or Roll Back):
The bucket is tilted back; (also this is the
transportation position.)
G
Detent:
When the bucket control lever is moved from
the bucket dump position to the bucket tilt
position, the bucket control lever is held in
this position with the detent.
21
MNEC-03-003
C
BE
NN
A
FG
D
M4GB-01-072
C
BE
NN
AD
M4GB-01-073
