KCM 70Z7 - Specifications

SPECIFICATIONS
12-1
Specifications
70Z7
Model - 70Z7
Bucket Capacity: heaped m
3
(Y
3
) 3.2 (4.2)
Operating Weight kg (lbs) 14420 (31790) [14730 (32475)]
Tipping Load (Full Turn) kg (lbs) 10240 (22575) [10340 (22795)]
Engine CUMMINS QSB6.7
A: Overall Length mm (in) 7940 (313) [8020 (315)]
B: Overall Width (Bucket) mm (in) 2730 (108)
C: Overall Height mm (in) 3280 (129)
D: Wheel Base mm (in) 3100 (122)
E: Tread mm (in) 2050 (81)
F: Ground Clearance mm (in) 395 (16)
G: Bucket Hinge Height mm (in) 3920 (154)
H: Dumping Clearance (45 °) mm (in) 2730 (107.5)
I: Dumping Reach (45 °) mm (in) 1140 (45)
R1: Minimum Rotation Radius mm (in) 5300 (209)
R2: Minimum Rotation Radius mm (in) 6230 (245)
Travel Speed Forward/Reverse km/h (mph) 38.5/26.5 (23.9/16.5)
Transmission Speeds (F/R) - 5/3
Articulation Angle (Left/Right) deg ( ° ) 40
Tire Size - 20.5-25-12PR (L2)

NOTE: x LSC, Bolt-On Edges

x These specifications are subject to change without notice.

x The value in [ ] shows the specification when the machine is equipped with additional counterweight.

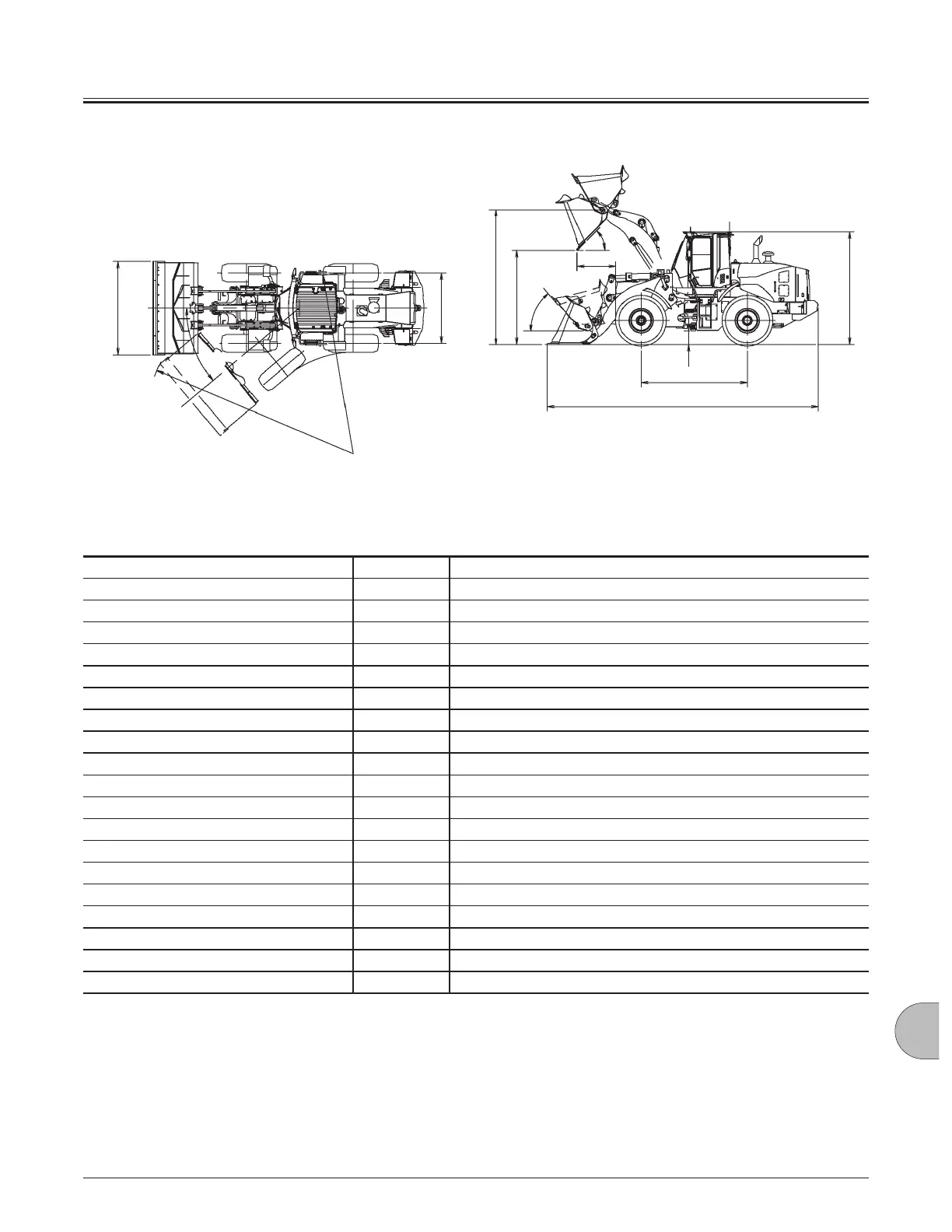

B
G
C
40°
50°
R2
R1
E
H
45°
I
F
D
A

NOTE: This illustration includes optional equipment.

(Optional equipment differs depending on the destination of the machine.)
MNDB-12-001
