KCM 70Z7 - Loading Control Levers

OPERATOR'S STATION
1-59
21

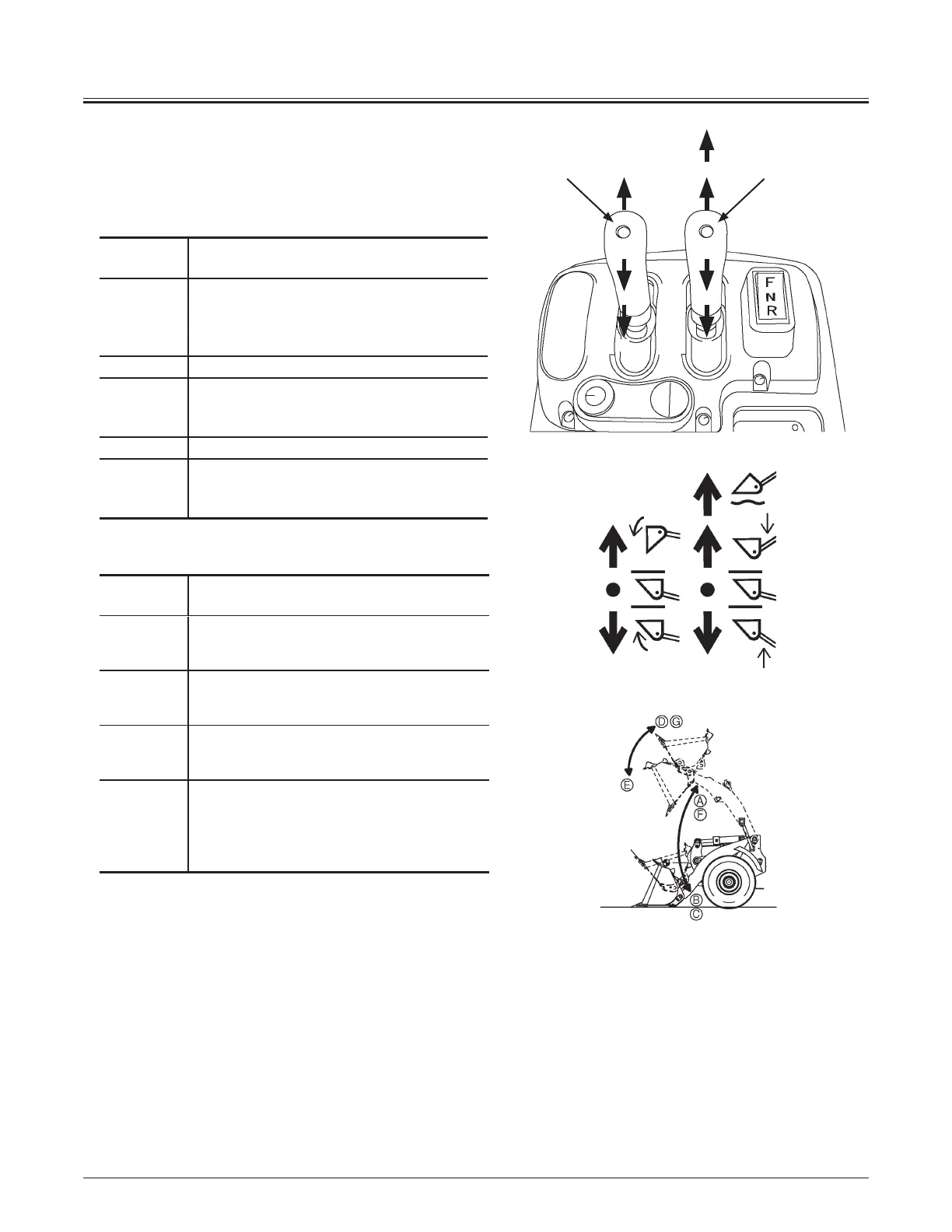

Loading Control Levers
The lift arm control lever and the bucket control lever are used
to operate the lift arm and/or bucket.
Lift Arm Control Lever (1)
Lever
Position
Lift Arm Operation
C
Float (Detent):
The lift arm free falls and can be moved as
loads are applied. The lever will stay in this
position.
B Lift Arm Lower
N
Hold:
The lift arm is stopped and held in that
position.
A Lift Arm Raise
F
Detent:
The lift arm is held in the raise position with
the detent.
Bucket Control Lever (2)
Lever
Position
Bucket Operation
E
Bucket Dump:
The bucket is tilted forward to dump the
bucket.
N
Hold:
The bucket is stopped and held in that
position.
D
Bucket Tilt (or roll back):
The bucket is tilted back; (also this is the
transportation position).
G
Detent:
When the bucket control lever is moved from
the bucket dump position to the bucket tilt
(or roll back) position, the bucket control
lever is held in this position with the detent.

NOTE:
xWhen applying the lift arm control lever (1) in the "Raise"
position (A), the lever is moved (F) until the lift arm reaches
the position set at the height kickout. When the lift arm
moves to the preset position, lift arm control lever (1)
automatically moves to "Neutral" (N) position.
xWhen applying the bucket control lever (2) in the "Tilt"
position (D) after bucket dump operation; the lever is
moved (G) until the bucket moves to the position preset
by the bucket auto leveler. When the bucket moves to the
preset position, bucket control lever (2) automatically
moves to "Neutral" (N) position.
M4GB-01-073
M4GB-01-072
C
BE
NN
AD
MNEC-03-003
C
BE
NN
A
FG
D
