OPERATOR'S STATION
1-99

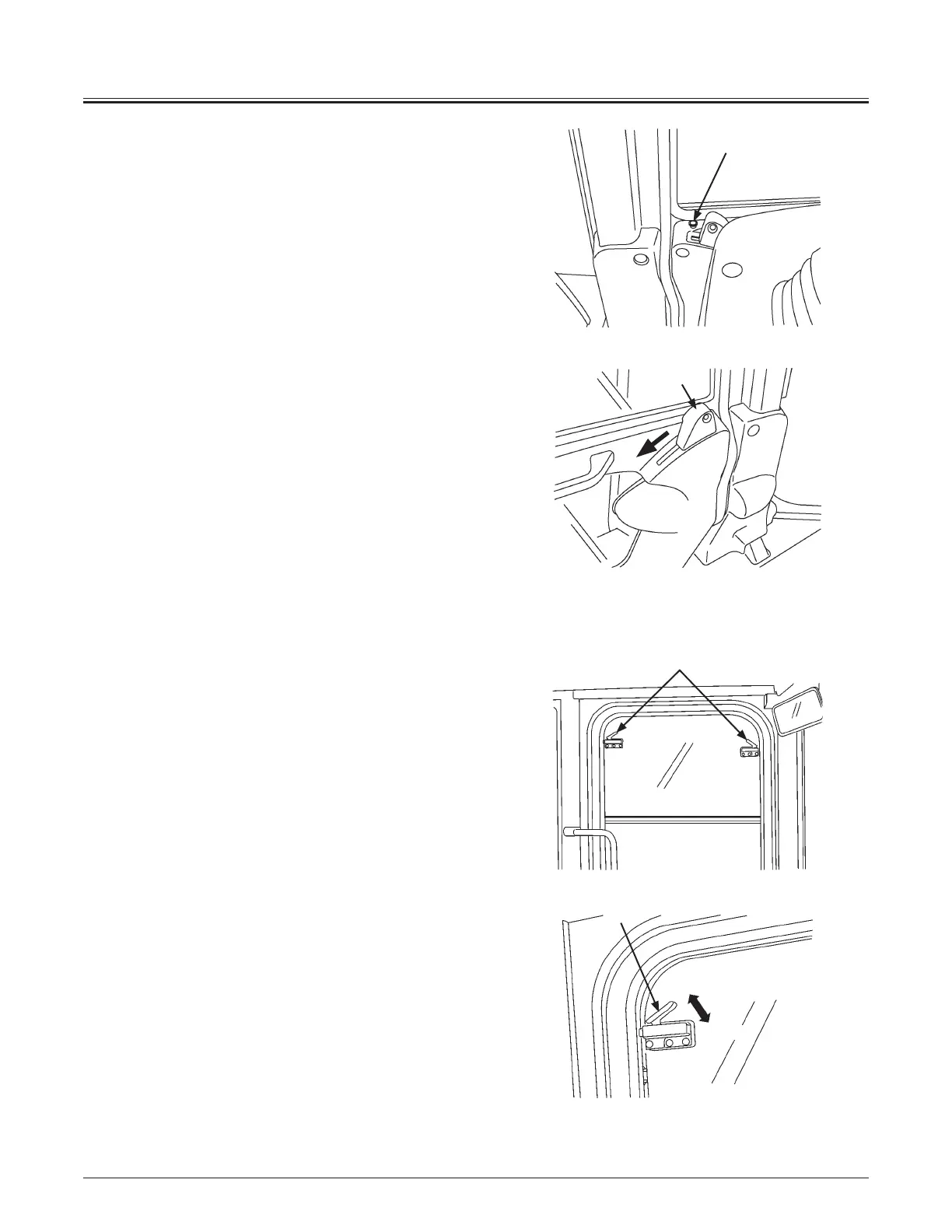

Door Lock Knob
CAUTION: After closing the door, always check that
the door lock is securely engaged.
Depress door lock knob (5) to engage the door lock.
Door Open/Close Lever
When opening the door, while lifting door lock knob (5), pull
lever (6) to disengage the door lock.
Window Open/Close Levers
When window open/close levers (7) on both sides are
simultaneously pressed, the window is unlocked, allowing the
windowpanes to move.
When window open/close levers (7) are released, stoppers are
engaged in the nearest steps so that the window is locked in
that position.
M4GB-01-128
M4GB-01-129
5
6
M4EK-01-048
M4FJ-01-016
7
7
Lock
Unlock
