OPERATOR'S STATION
1-103

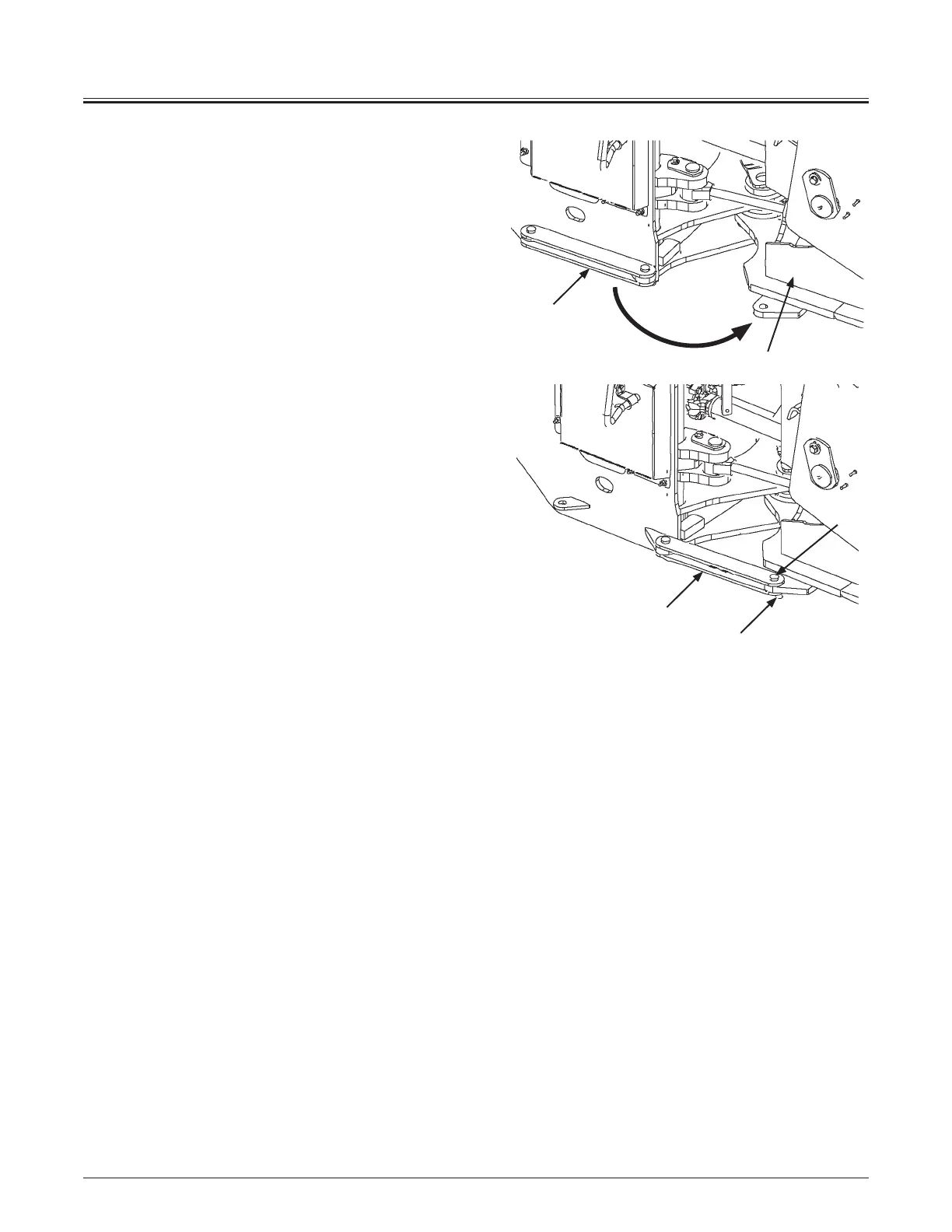

Articulation Lock Bar
WARNING:
y Before servicing or transporting the machine, be
sure to engage lock bar (1).
y Before operating the machine, be sure to disengage
lock bar (1) from front chassis (4) and fasten the lock
bar to rear chassis with pin (2) and β-form lock clip
(3).
Articulation lock bar (1) locks the front and rear chassis to
prevent articulation between the front and rear chassis when
servicing or transporting the machine.
MNEC-01-060
MNEC-01-061
1
1
3
2
4
