KCM 70Z7 - Monitor Panel

OPERATOR'S STATION
1-8

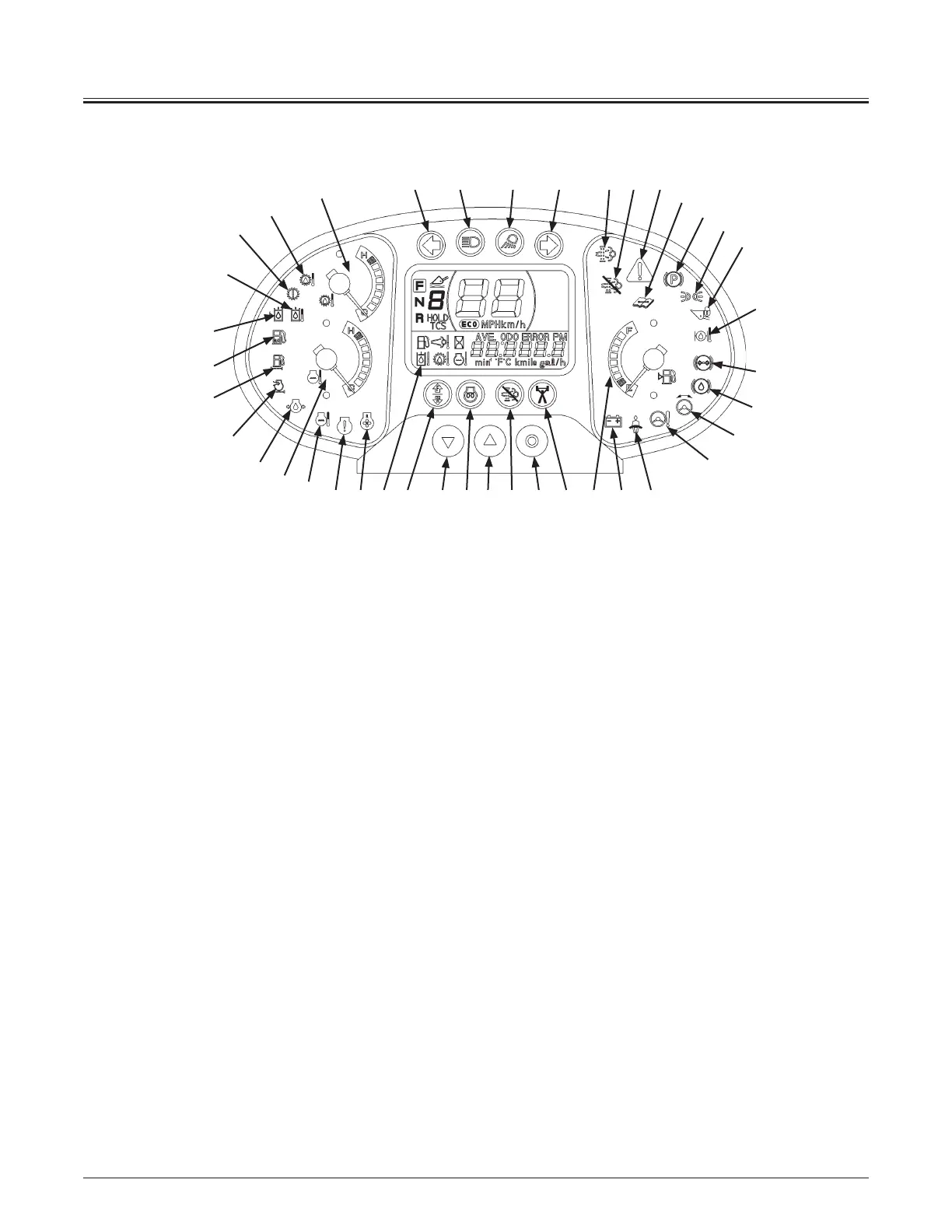

Monitor Panel
1- Left Turn Signal Indicator
2- High Beam Indicator
3- Work Light Indicator
4- Right Turn Signal Indicator
5- Not Used
6- Not Used
7- Service Indicator
8- Maintenance Indicator
9- Parking Brake Indicator
10- Clearance Light Indicator
11- Control Lever Lock Indicator
12- Axle Oil Temperature Indicator
13- Brake Oil Low Pressure Indicator
14- Not Used
15- Secondary Steering Indicator (Option)
16- Low Steering Oil Pressure Indicator (Option)
17- Seat Belt Indicator
18- Discharge Warning Indicator
19- Fuel Gauge
20- Power Mode Indicator
21- Monitor Mode Selector
22- Not Used
23- Monitor Display Selector (Up)
24- Preheat Indicator
25- Monitor Display Selector (Down)
26- Forward/Reverse Selector Switch Indicator
27- Monitor Display
28- Fan Reverse Rotation Indicator
29- Engine Warning Indicator
30- Overheat Indicator
31- Coolant Temperature Gauge
32- Engine Oil Low Pressure Indicator
33- Air Filter Restriction Indicator
34- Not Used
35- Water Separator Indicator
36- Hydraulic Oil Level Indicator
37- Hydraulic Oil Temperature Indicator
38- Transmission Warning Indicator
39- Transmission Oil Temperature Indicator
40- Transmission Oil Temperature Gauge
12 34 567
8
9
10
11
12
13
14
15
16
171820212223242526272829
30
31
32
33
19
34
35
36
37
38
39
40
MNDB-01-034
