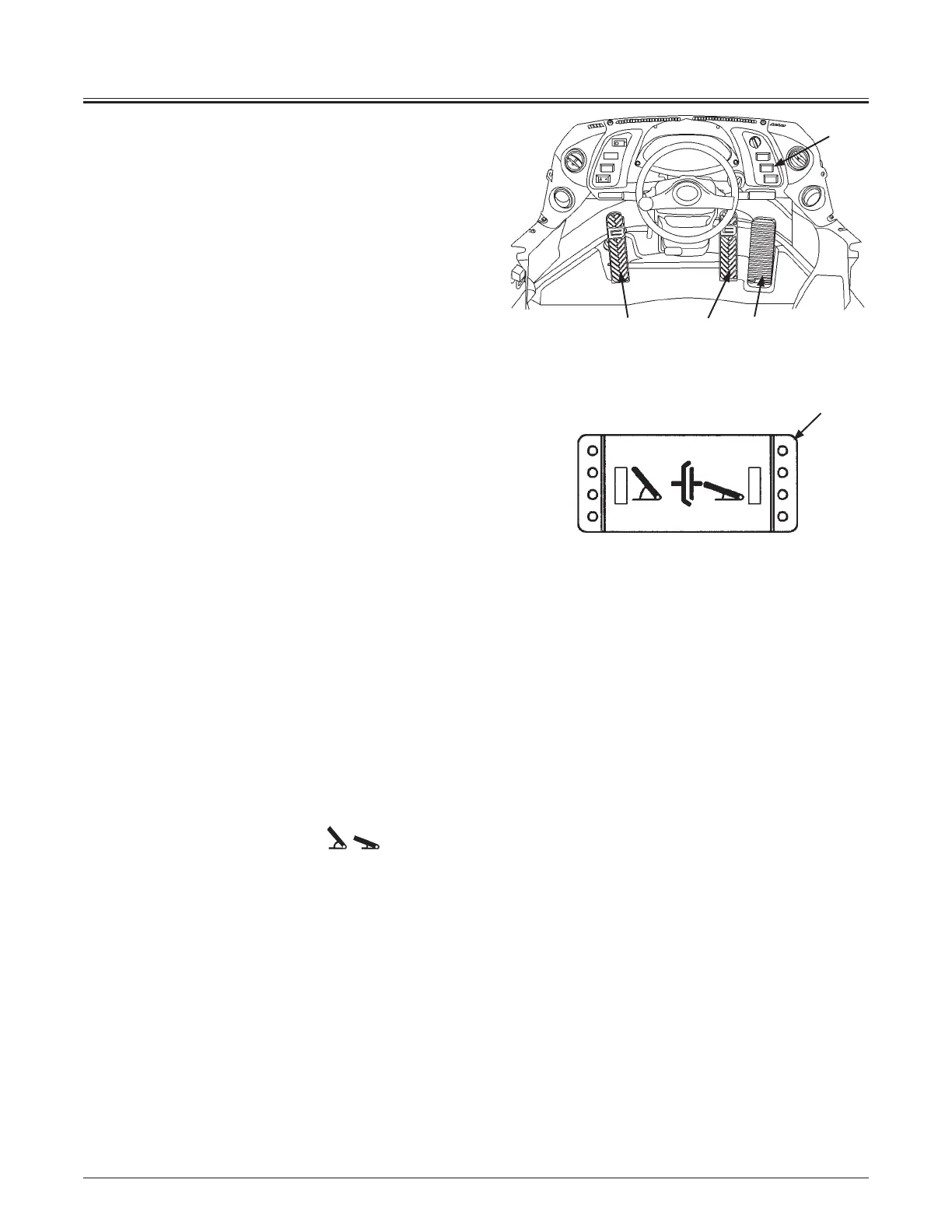

Accelerator Pedal
When accelerator pedal (3) is applied, the engine speed
increases. When released, the engine speed decreases.
NOTE: The engine speed may change due to the machine
control regardless of the operation of the accelerator pedal.
Brake Pedal
WARNING:
y Avoid sudden brake application when moving
machine, possibly creating a hazardous situation.
The machine may lose its balance.
y Unless necessary, do not rest your foot on the brake
pedal to prevent the brake pads, discs, and clutch
from wearing out prematurely.
y Keep the areas around the brake pedals clean
to prevent dust and/or grit from accumulating.
The brake may not be fully released and become
inoperable.
Left and right brake pedals (1), (2) can function as the service
brake. Left pedal (1) also functions as declutch brake by
switching declutch position switch (4).
Service Brake
Brake pedals (1), (2) function as normal brake by setting
declutch position switch (4) to OFF (Neutral) position. Be
sure to turn clutch cut position switch (4) OFF (Neutral)
before traveling down or on a slope.
Declutch Brake
Brake pedal (1) functions as a declutch brake by setting
declutch position switch to the ON
, . Use this mode
when performing loading work or while stopping machine.
123
ON OFF ON
MNDB-01-001
4
4
MNDB-01-019
