OPERATOR'S STATION
1-16

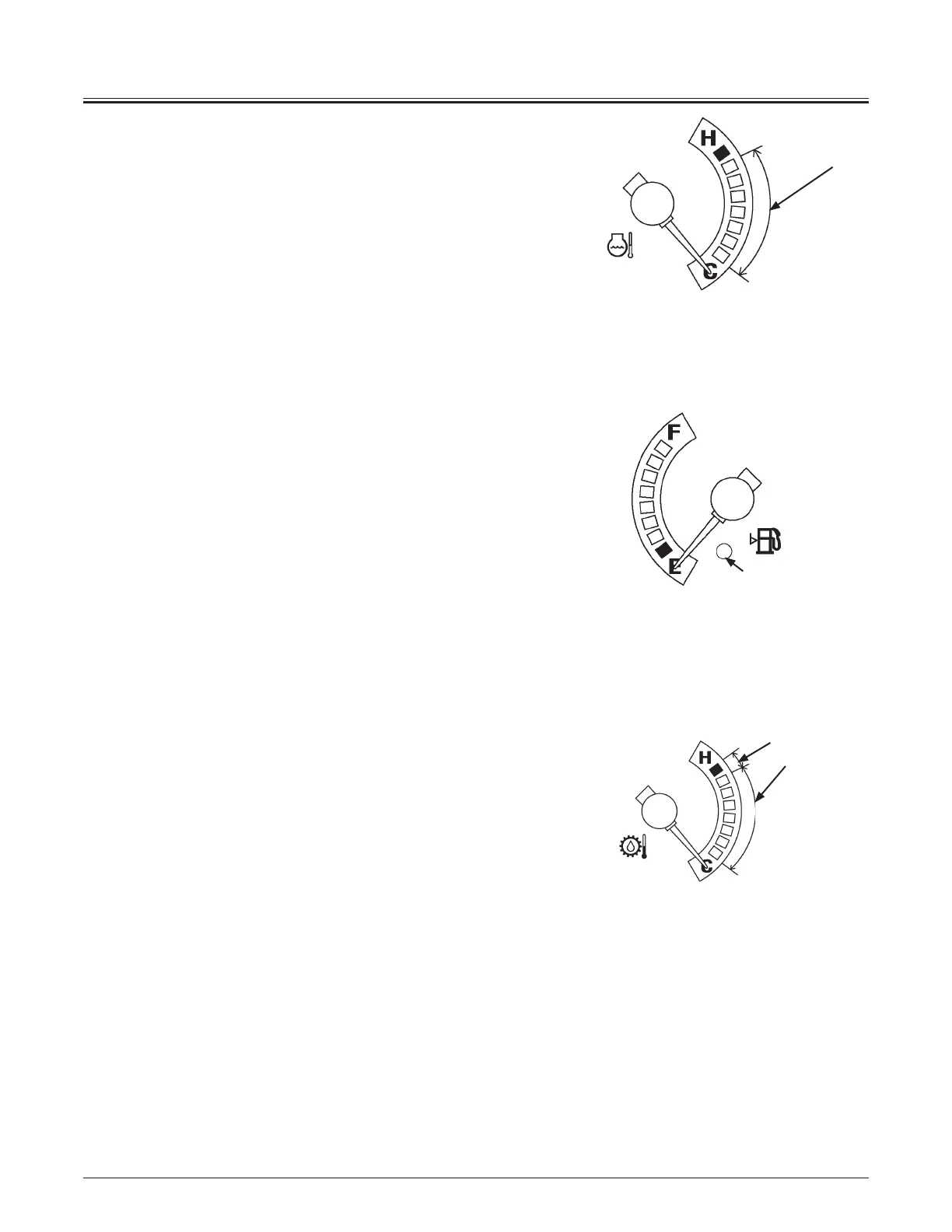

Coolant Temperature Gauge
The engine coolant temperature is indicated with a needle.
When the needle stays in the range (1) during operation, the
coolant temperature is normal.
If the engine coolant temperature becomes abnormally high,
the service indicator will flash and the alarm buzzer will sound.
Stop machine operation and run the engine at low idle to
lower the coolant temperature. After the coolant temperature
lowers, stop the engine for inspection. Visually inspect coolant
level in reservoir. In case the needle does not move at all, error
in the electrical system is suspected. Contact your nearest
authorized dealer for machine inspection.
Fuel Gauge
The fuel level is indicated by the needle. Refuel before the
needle reaches in the red range "E". When the needle reaches
in the red range (E), the fuel level indicator lights.
NOTE: The fuel level indicator may light even if the indicator
needle does not reach the red range (E), depending on the tilt
angle of machine.
Transmission Oil Temperature Gauge
The transmission oil temperature is indicated with a needle.
When the needle stays in range (3) during operation, the oil
temperature is normal. If the transmission oil temperature
abnormally increases to range (2) and is kept higher than the
specification for a short period of time, the service indicator
comes ON. Stop machine operation and run the engine at low
idle to lower the oil temperature. After the oil temperature
lowers, stop the engine.
M4GB-01-028
1
MNEC-01-002
Fuel Level Indicator
2
3
M4GB-01-029
