KCM 70Z7 - Multi-Function Joystick Type

OPERATOR'S STATION
1-7

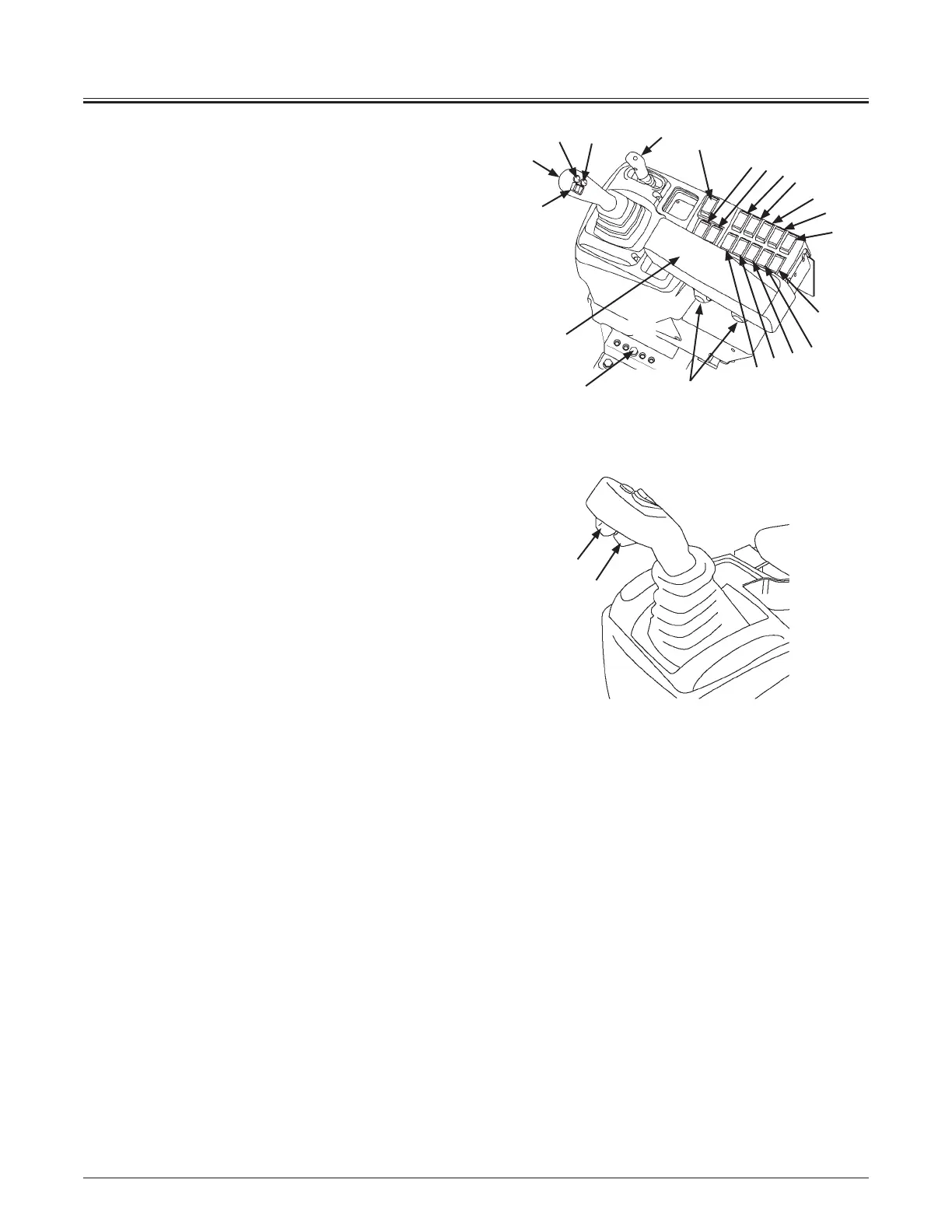

Right Console
Multi-Function Joystick Type
(70Z7: Standard)
(70TM7: Option)
1- Forward/Reverse Switch
2- Multi-Function Joystick Lever
3- Quick Power Switch
4- DSS (Down Shift Switch)
5- Auxiliary Control Lever (Option)
6- Control Lever Lock Switch
7- Auxiliary
8- Auxiliary
9- Power Mode Selector
10- Forward/Reverse Selector Switch
11- Fan Reverse Rotation Switch
12- Auxiliary
13- Auxiliary
Quick Coupler Switch (70TM7)
14- Secondary Steering Operation Check Switch (Option)
15- Lift Arm Auto Leveler (Height Kickout) Switch
16- Lift Arm Auto Leveler (Lower Kickout) Switch
17- 1st Speed Fixed Switch
18- Ride Control Switch (Option)
19- Armrest Adjust Handle
20- Armrest
21- Hold Switch (Under the Lever)
22- Horn Button (Under the Lever)
