MAINTENANCE
7-11
Rear Grille
CAUTION:
y Open or close rear grille (2) only after stopping the
engine. Failure to do so may create a very dangerous
situation as entanglement with the cooling fan may
result.
y Before running the machine, always check that rear
grille (2) is not open.
y Rear grille (2) may spring open. Take care not to be
hit by the rear grille.
Opening the rear grille

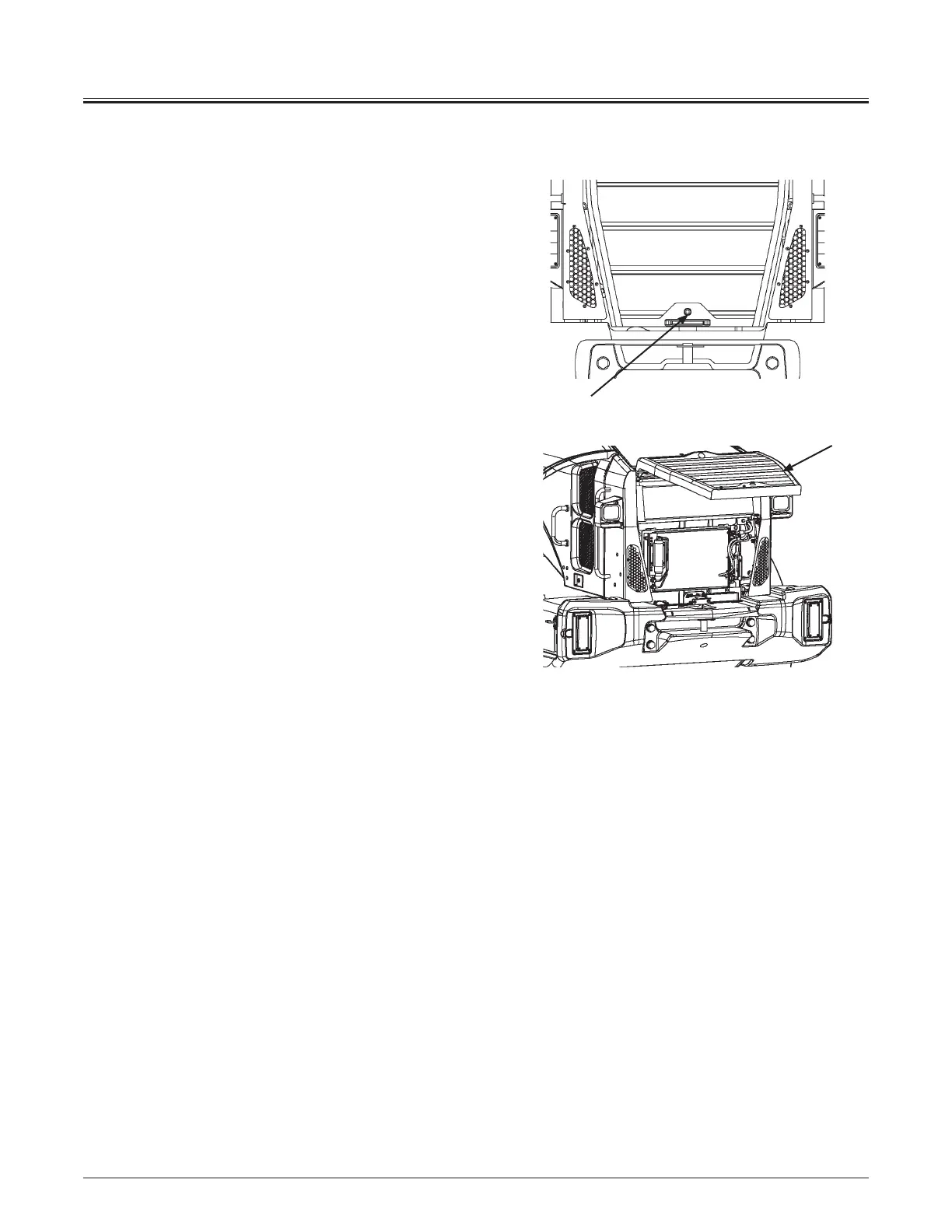

Push open/close button (1) laterally to open rear grille (2)
upward. This provides access to the area under the grille
allowing the fuel tank to be refilled and/or the cooling fan
to be cleaned.
Closing the rear grille
While holding rear grille (2), slowly close rear grille (2)
downward until a “click” sound is heard.
1
2
MNEC-01-510
MNDB-01-017
