OPERATOR'S STATION
1-102
ON
2
1
OFF

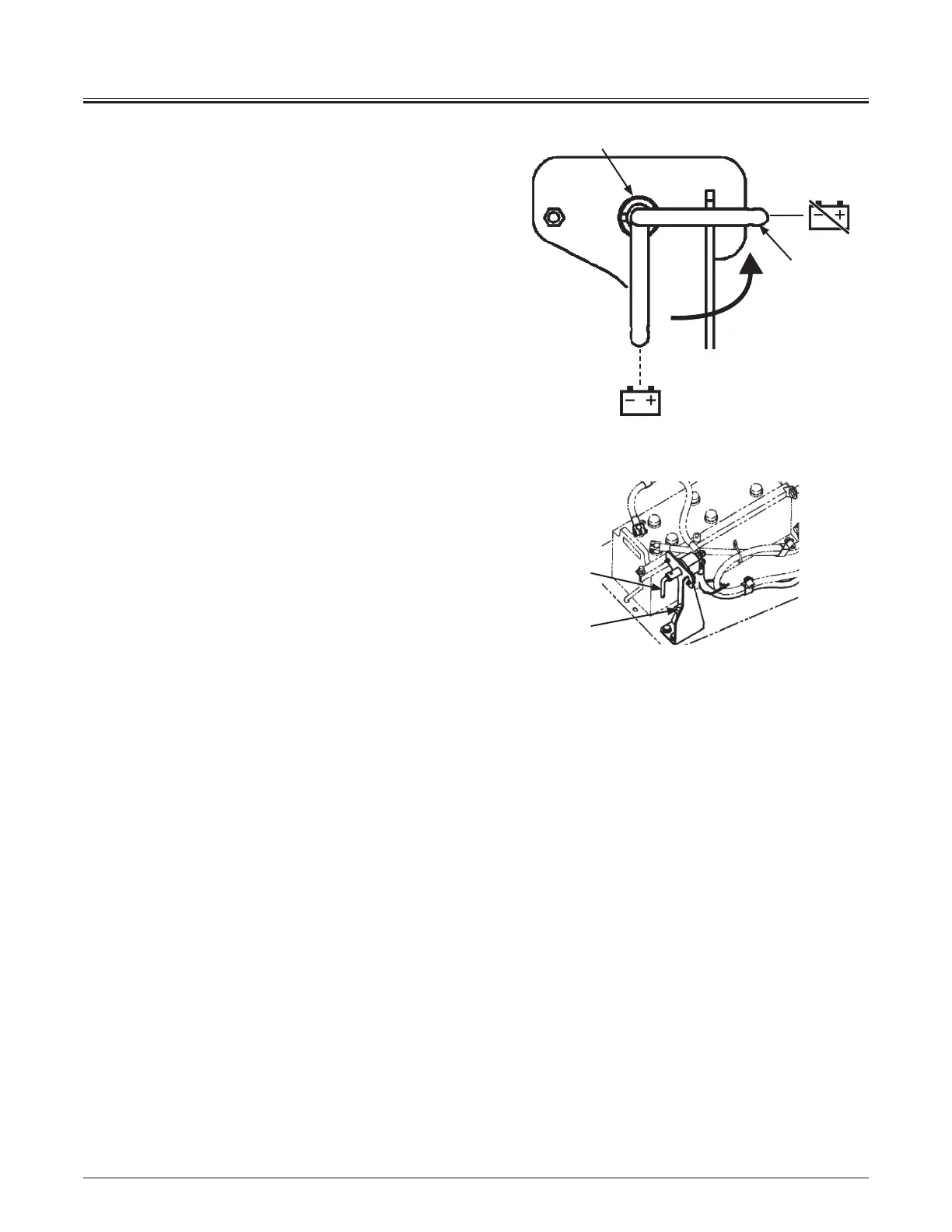

Switch Operation
1. Open the battery box cover.
When lever (1) is vertical to the ground, battery
disconnect switch (2) turns ON. The lever can not be
removed when lever (1) points downward.
When operating the machine with battery disconnect
switch (2) ON, close the battery box cover.
2. When turning lever (1) 90° counterclockwise (the lever is
lateral to the ground), battery disconnect switch (2) turns
OFF. Lever (1) can be removed from battery disconnect
switch (2) when it is in OFF position.
3. Insert lever (1) removed from switch (2) into hole (3) of
the holder.
4. Close the battery box cover.
70MNEC-01-520
70MNEC-01-13
3
1
