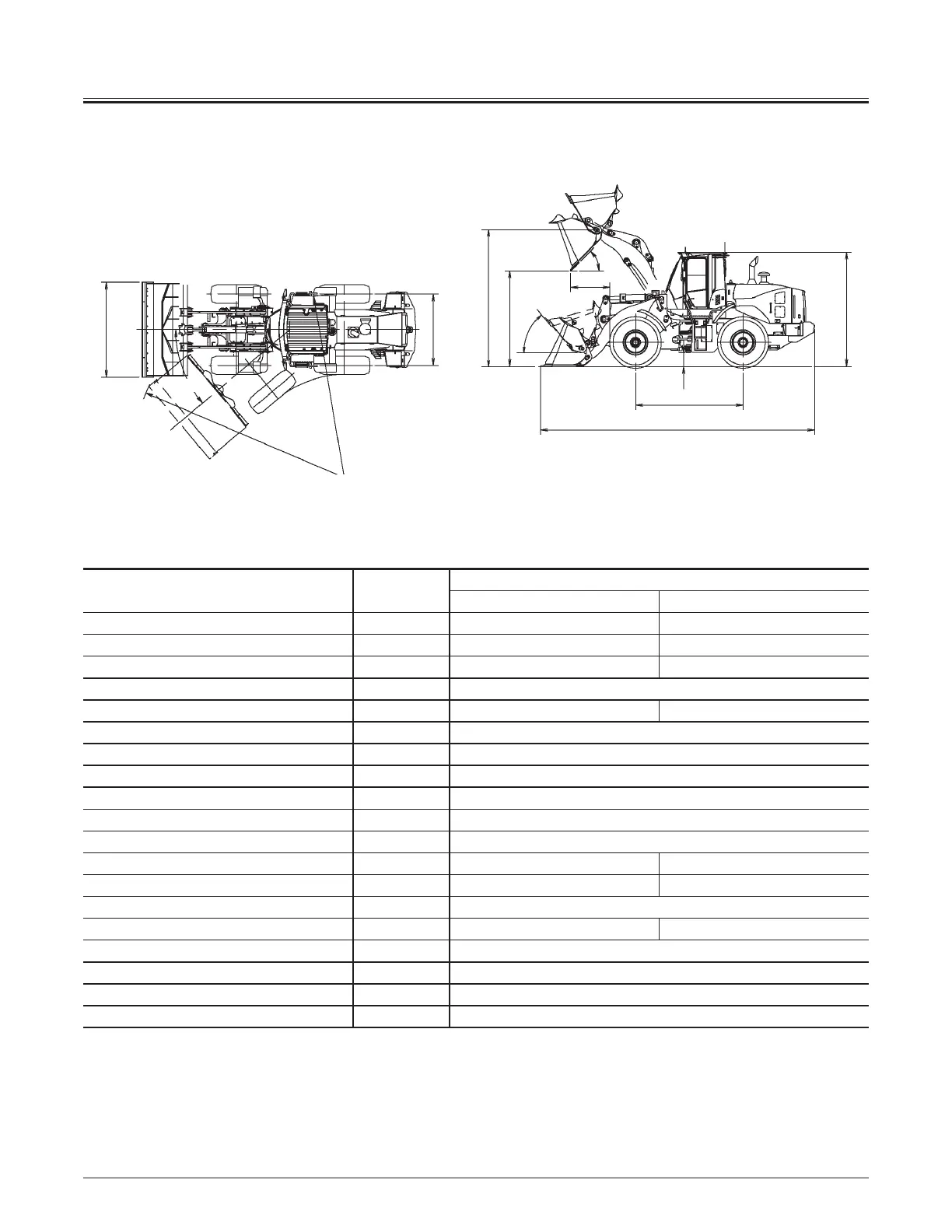

SPECIFICATIONS
12-2
Specifications
70TM7
Model -
70TM7
Quick coupler General purpose(Stock pile)
Bucket Capacity: heaped m
3
(Y
3
) 2.6 (3.4) 2.8 (3.7)
Operating Weight kg (lbs) 16170 (35650) 15910 (35080)
Tipping Load kg (lbs) 9190 (20260) 10020 (22090)
Engine CUMMINS QSB6.7
A: Overall Length mm (in) 8260 (325) 8180 (322)
B: Overall Width (Bucket) mm (in) 2730 (107)
C: Overall Height mm (in) 3350 (132)
D: Wheel Base mm (in) 3100 (122)
E: Tread mm (in) 2050 (80.7)
F: Ground Clearance mm (in) 460 (18.1)
G: Bucket Hinge Height mm (in) 4110 (162)
H: Dumping Clearance (45 °) mm (in) 2780 (109) 2840 (112)
I: Dumping Reach (45 °) mm (in) 1360 (53.5) 1270 (50.0)
R1: Minimum Rotation Radius mm (in) 5300 (209)
R2: Minimum Rotation Radius mm (in) 6280 (247) 6260 (246)
Travel Speed Forward/Reverse km/h (mph) 41.7/31.0 (25.9/19.3)
Transmission Speeds (F/R) - 5/3
Articulation Angle (Left/Right) deg ( ° ) 40
Tire Size - 23.5-25-16PR (L3)

NOTE: x * BOC (Bolt-On Cutting Edge)

x These specifications are subject to change without notice.
B
G
C
40°
40°
50°
R2
R1
E
H
45°
I
F
D
A
MNDB-12-003
