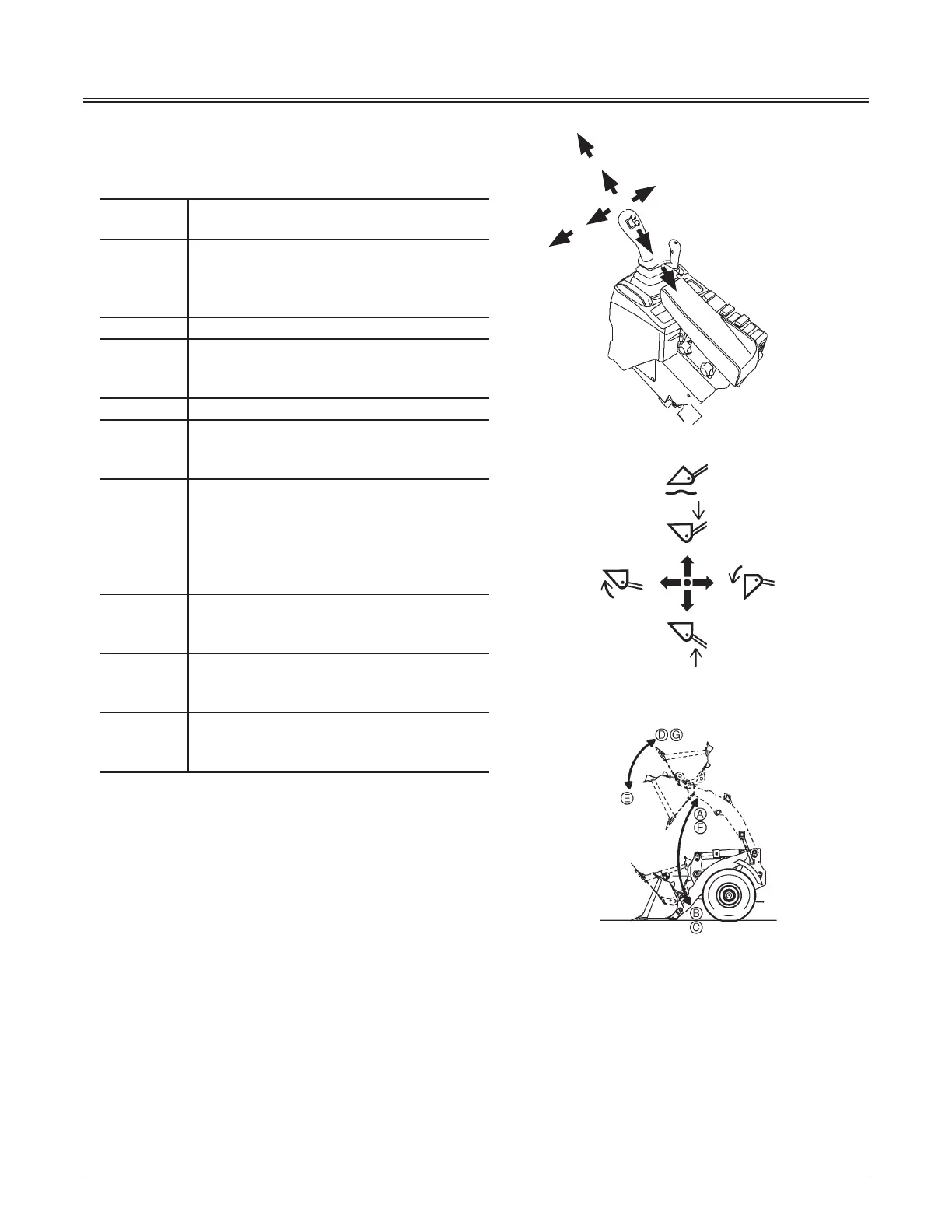

Loading Multi-Function Joystick Lever (Optional)
The multi-function joystick lever is used to operate the lift
arm and/or bucket.
Lever
Position
Lift Arm/Bucket Operation
C
Float (Detent):
The lift arm free falls and can be moved as
loads are applied. The lever will stay in this
position.
B Lift Arm Lower
N
Hold:
The lift arm is stopped and held in that
position.
A Lift Arm Raise
F
Detent:
The lift arm is held in the raise position with
the detent.
G
Detent:
When the multi-function joystick lever is
moved from the bucket dump position to
the bucket tilt position, the multi-function
joystick lever is held in this position with the
detent.
D
Bucket Tilt (or Roll Back):
The bucket is tilted back, taking the
transportation position.
N
Hold:
The bucket is stopped and held in that
position.
E
Bucket Dump:
The bucket is tilted forward to dump the
bucket load.
M4GB-01-073
M4GB-01-074
C
B
E
N
A
D
E
D
C
B
N
A
F
G
