TRANSPORTING
6-8
Procedures
WARNING:
y Once the parking brake is released, the machine
becomes impossible to stop with the parking brake
system.
y Chock all tires to prevent the machine from moving.
y Before restarting to operate the machine, consult
your nearest authorized dealer to have the parking
brake adjusted.

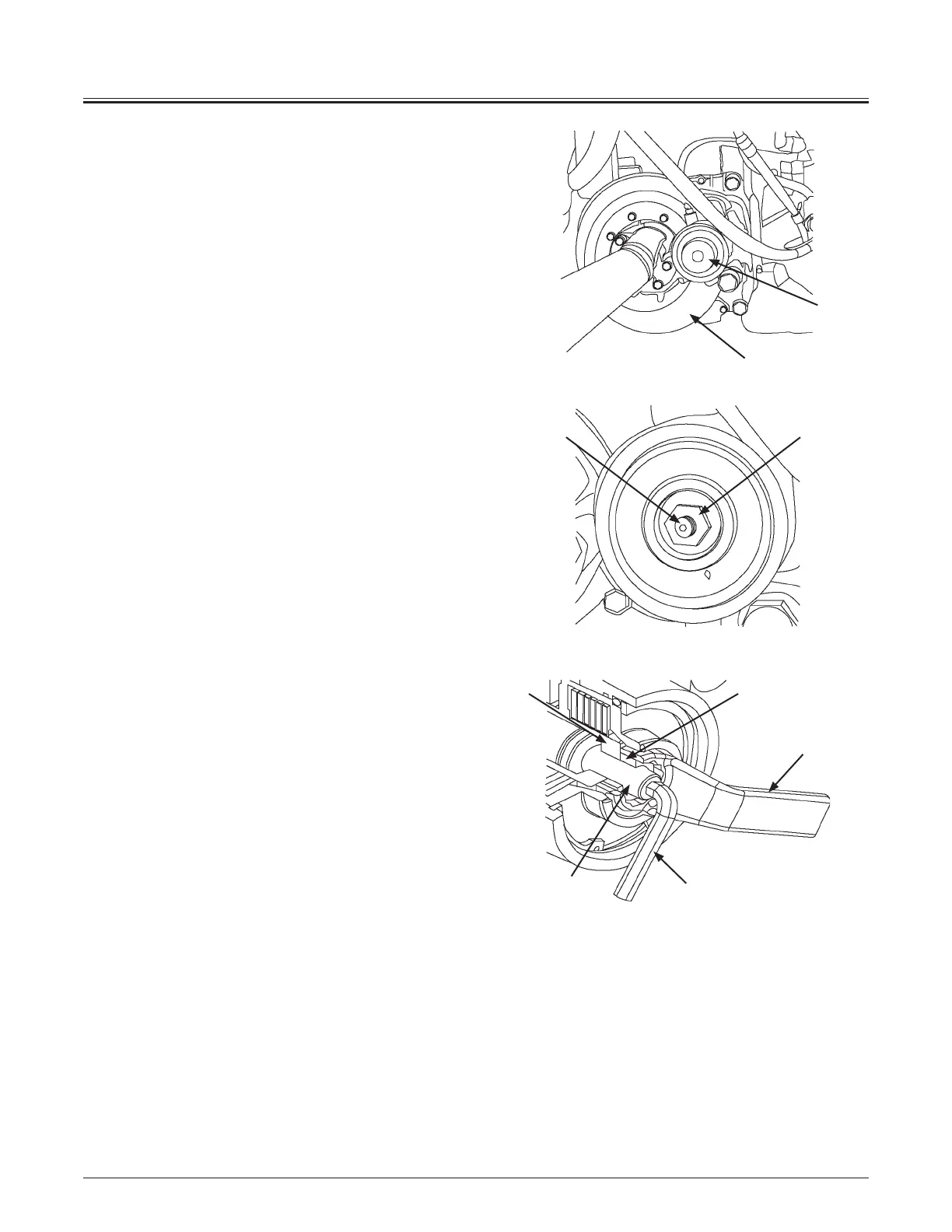

1. Rotate cap (1) counterclockwise and remove cap (1).
2. Rotate lock nut (2) counterclockwise by using tool (3)
and remove lock nut (2).
Wrench Size: 24 mm (0.08 in)
3. Rotate set bolt (4) counterclockwise with allen wrench
(5) until brake disk (7) becomes completely free.
Wrench Size: 8 mm (0.03 in)
4. Install and tighten lock nut (2) until it contacts piston (6).
Apply torque of 70 N·m (7.1 kgf·m, 52 lbf·ft) to nut (2).
5. Install cap (1) and lightly tighten it to prevent dust from
adhering to the lock nut.
MNEC-06-003
MNEC-06-004
MNEC-06-005
1
7
2
4
3
2
6
5
4
To Next Page
