MAINTENANCE
7-58

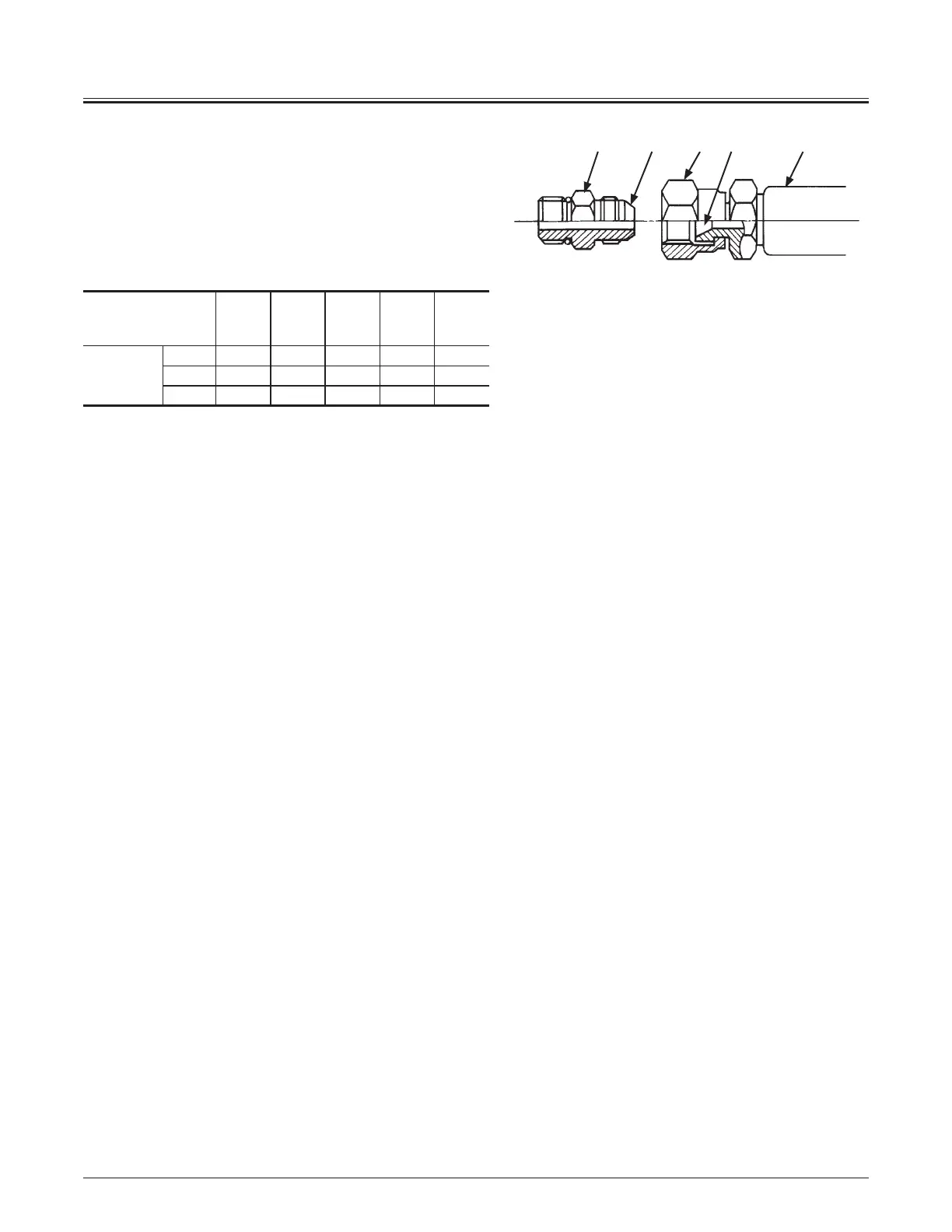

Metal Face Seal Fittings
Fittings are used on smaller hoses and consist of a metal
flare and a metal flare seat.
1. Tighten fitting (7) by hand.
2. Tighten fitting (7) or nut (8) to the torque values shown.
Do not allow hose (5) to twist when tightening fittings.
Width across flats
(mm)
17
(0.67
in)
19
(0.75
in)
22
(0.87
in)
27
(1.06
in)
36
(1.42
in)
Tightening
torque
N·m 24.5 29.5 39 93 175
(kgf·m) (2.5) (3) (4) (9.5) (18.0)
(lbf·ft) (18.5) (22) (29) (69) (132.5)
79810 5
M202-07-051
