13-3
Quick Coupler
OTHER ATTACHMENTS AND DEVICE

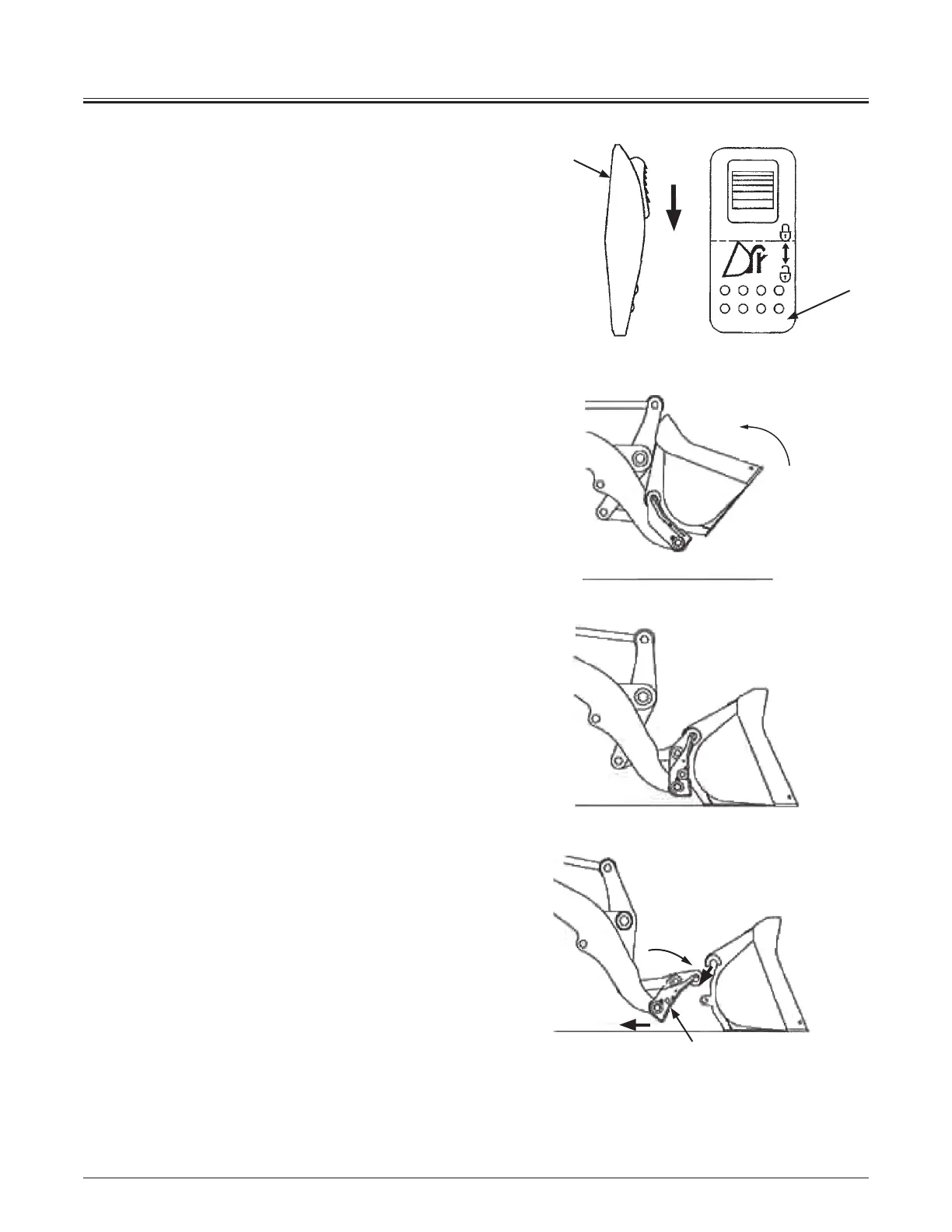

Uncoupling from Attachment
WARNING: PINCH HAZARD.
Keep clear of coupler cylinder plungers. Coupler lock
pins will extend to locked position when switch is in
"lock" position and electrical power is shut-off. Serious
injury could occur.
1. Press hydraulic coupler switch (1) down to "unlock"
position (2).
2. Hold the bucket control lever in “Rollback” position until
locking plungers have fully retracted.
3. Lower the attachment onto the ground.
4. Roll coupler (3) forward to "dump" position while
slowly moving the machine backward away from the
attachment.
M4GB-01-175
1
2
90Z7-13-05
90Z7-13-06
Rollback with
attachment
90Z7-13-04
3
Dump
To Next Page
