OPERATOR'S STATION
1-29
y Engine Oil Filter Hour Meter
Screen P and time screen Q indicating the remaining hours up
to engine oil filter replacement are alternately displayed
When the remaining hour reading becomes 0 hour,
maintenance indicator (4) will light.
While displaying screen Q, when monitor display selector (2) is
pressed, the screen is returned to time screen B. When monitor
display selector (3) is pressed, screen R of “Fuel filter hour
meter” is displayed.
Refer to page 1-30 for the resetting of oil change and filter
replacement intervals.
y Fuel Filter Hour Meter
Screen R and time screen S indicating the remaining hours up
to fuel filter replace are alternately displayed
When the remaining hour reading becomes 0 hour,
maintenance indicator (4) will light.
While displaying screen S, when monitor display selector (2) is
pressed, the screen is returned to time screen B. When monitor
display selector (3) is pressed, screen T of “Axle oil hour meter”
is displayed.
Refer to page 1-30 for the resetting of oil change and filter
replacement intervals.
y Axle Oil Hour Meter
Screen T and time screen U indicating the remaining hours up
to axle oil change are alternately displayed
When the remaining hour reading becomes 0 hour,
maintenance indicator (4) will light.
While displaying screen U, when monitor display selector (2) is
pressed, the screen is returned to time screen B. When monitor
display selector (3) is pressed, screen A of “INFO” is displayed.
Refer to page 1-30 for the resetting of oil change and filter
replacement intervals.

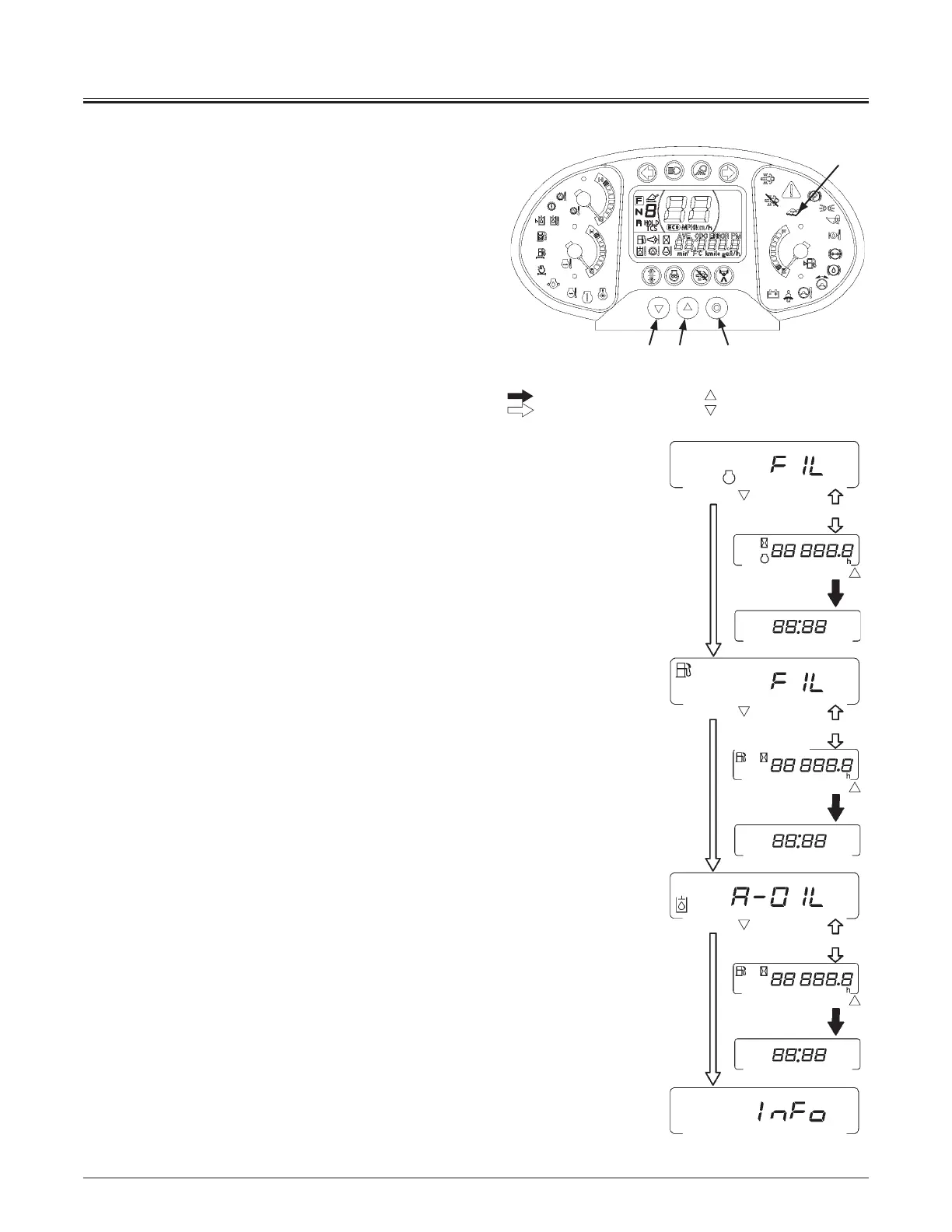

Engine Oil Filter
