Keysight 81160A - Page 135

Features and Functions
81150A and 81160A User’s Guide 135
Front Panel
Operation

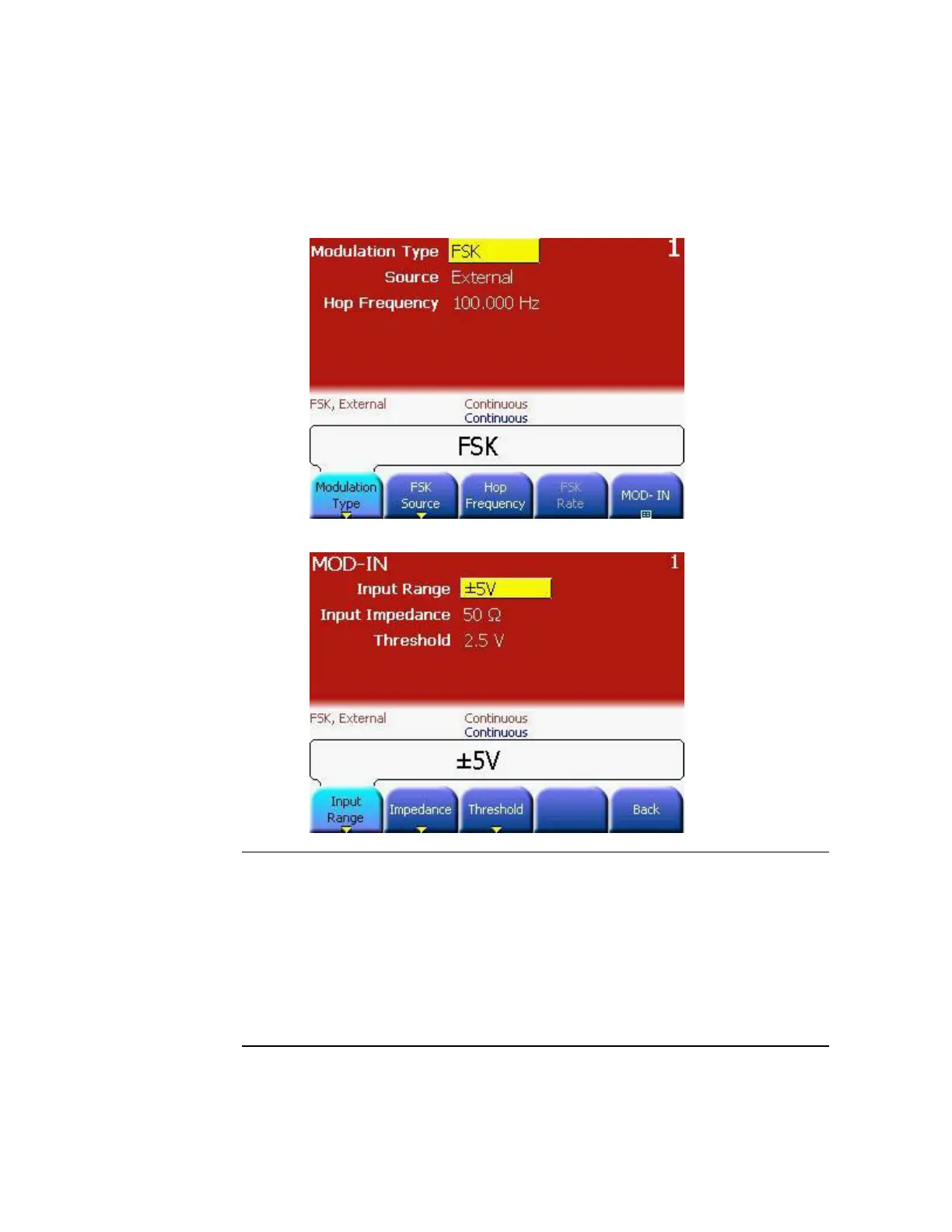

 Press the MOD-IN softkey to go to the Modulation In screen.
 Press the Input Range softkey.
Remote Interface
Operation
:AM[1|2]:EXTernal:RANGe {<volts>|MINimum|MAXimum}
:FM[1|2]:EXTernal:RANGe {<volts>|MINimum|MAXimum}
:PM[1|2]:EXTernal:RANGe {<volts>|MINimum|MAXimum}
:PWM[1|2]:EXTernal:RANGe {<volts>|MINimum|MAXimum}
:FSK[1|2]:EXTernal:RANGe {<volts>|MINimum|MAXimum}
