4-4.3 Systems Using Discharge Delays
Discharge delays prevent a system from discharging until a specified time has expired.
Discharge delay systems use nitrogen from a nitrogen pilot cylinder for activation of the
cylinder valves. Use an electric control head to open the valve on the pilot cylinder. The
nitrogen then travels to the discharge delay. The discharge delay prevents the nitrogen from
pressurizing the activation line until after the delay has expired. The discharge delay can be
bypassed by using a manual lever operated control head on the discharge delay. Figure 4-4
illustrates a system with a discharge delay.

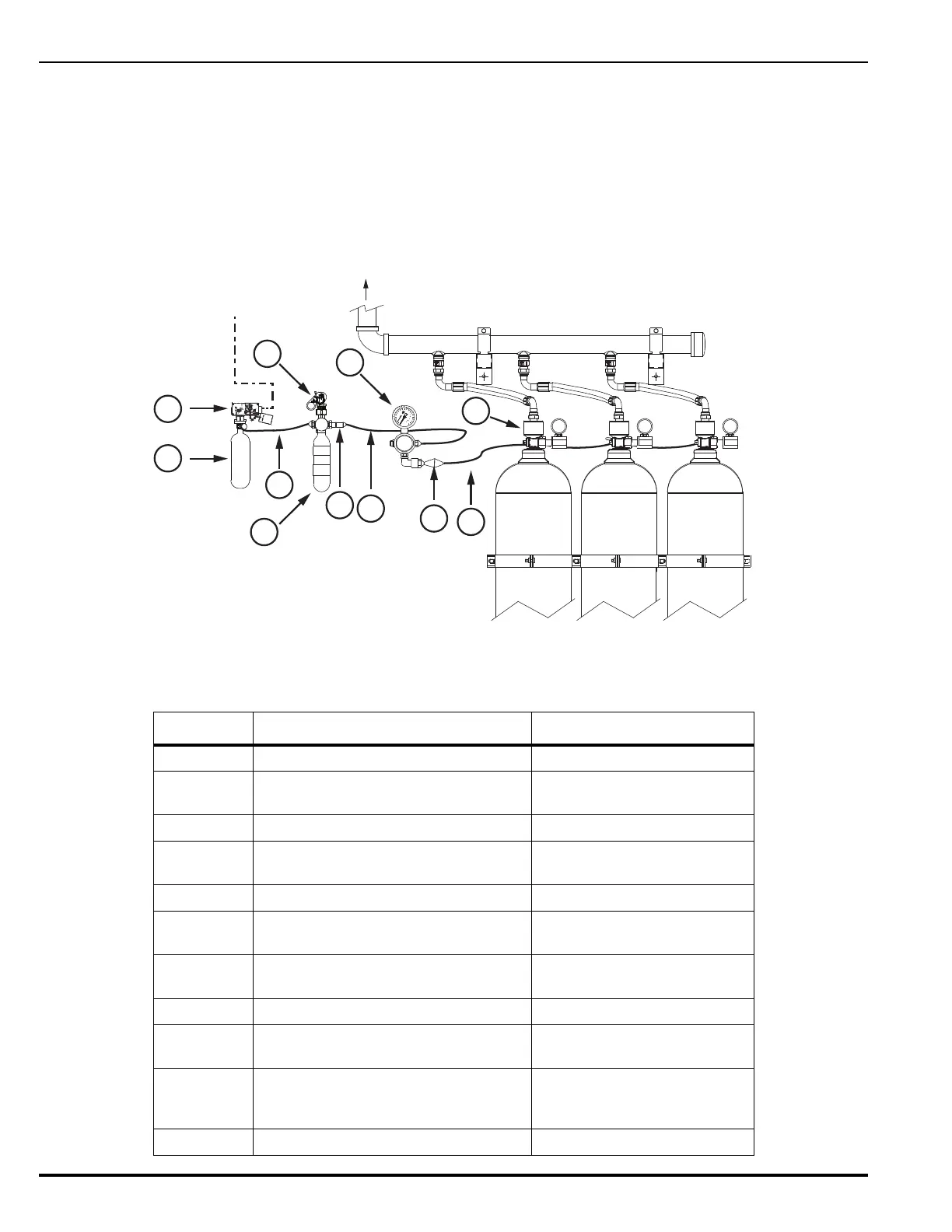

Figure 4-4. System with Discharge Delay
Table 4-4. Discharge Delay System Components
Number Description Part Number
1 104 cu. in. Nitrogen Pilot Cylinder 06-129773-001
2 Electric Control Head Kit with Control
Head Monitor
85-890181-000
3 30” Actuation Hose WK-264986-000
4 Nitrogen Discharge Delay Kit 34 sec.: 38-401140-030
61 sec.: 38-401140-060
5 Lever Operated Control Head WK-870652-000
6 3/4” NPS to BSP Adapter Included in Nitrogen
Discharge Delay Kit
7 Back-Plate Manifold Hose Included in Nitrogen
Discharge Delay Kit
8 Pressure Regulator 01-6017-0000
9 BSP to Festo Adapter Included in Nitrogen
Discharge Delay Kit
10 Pilot Line Actuation Hose 38-401110-X00
or
38-401130-X00
11 1st Cylinder with Slave Gauge Varies
NOTE: Components not to scale
To Distribution
Pipe Work
11
1
2
3
4
5
6
7
8
9
10
Wiring to
Control Panel
To Next Page
