Component Descriptions
April 2020 2-36 06-237619-001

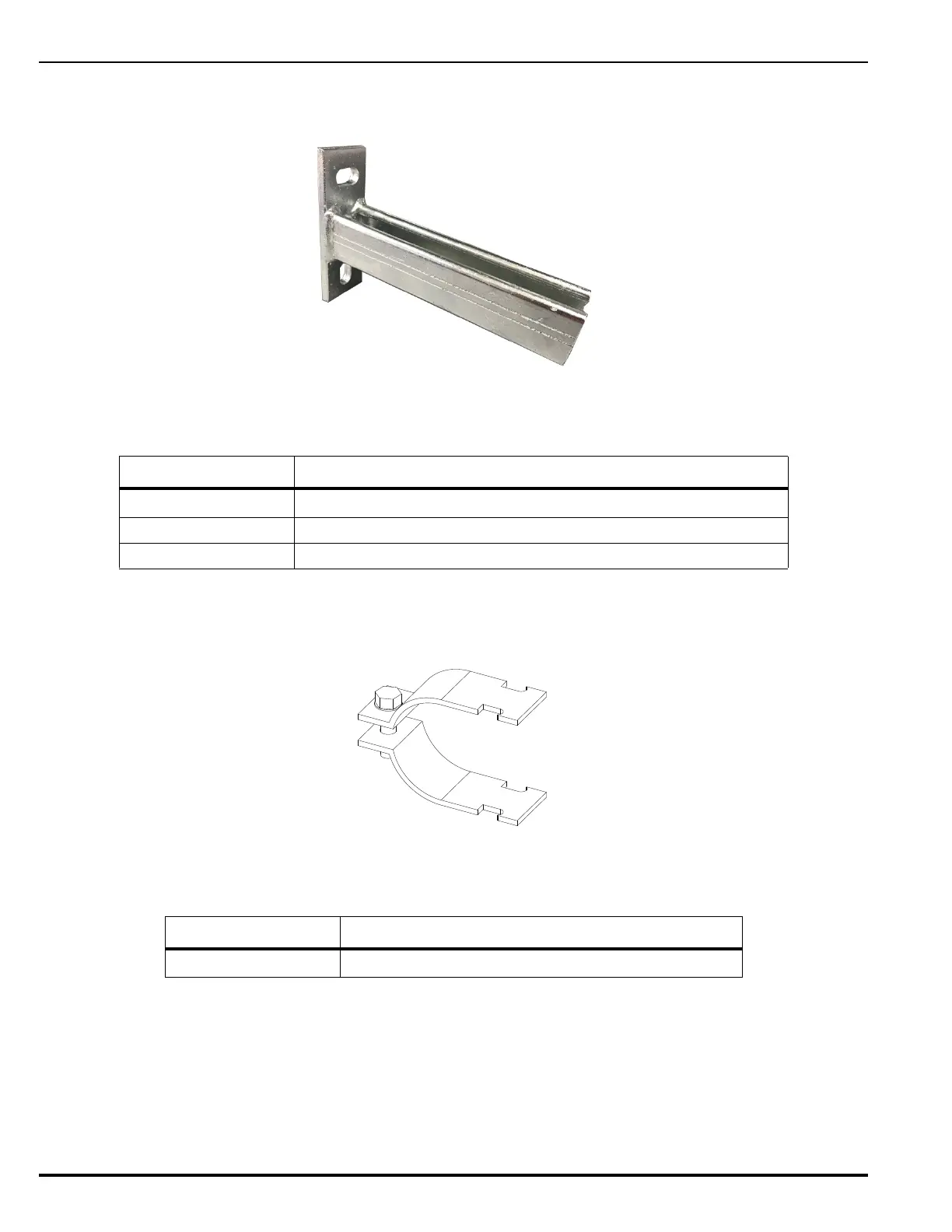

2-10.1 Manifold Bracket
Use to support the manifold.
Figure 2-42. Manifold Bracket
2-10.2 Manifold Clamp
Use to clamp the manifold to unistrut channels.
Figure 2-43. Manifold Clamp
2-10.3 2" Adapter, BSPT (F) to NPT (F)
Use this female-to-female adapter (P/N 38-351000-001) to convert the BSPT manifold piping
to NPT piping.
Table 2-28. Kidde IGS Manifold Bracket Part Numbers
Part Number Description
01-8160-0200 Bracket for 80L Cylinder manifold 1 Row 200mm (inc 2" Clamp)
01-8160-0520 Bracket for 80L Cylinder Manifold 2 Rows 520 mm (inc 2" Clamp)
01-8160-0830 Bracket for 80L Cylinder Manifold 3 Rows 830 mm (inc 2" Clamp)
Table 2-29. Kidde IGS Manifold Clamp Part Numbers
Part Number Description
01-8143-0000 2" Pipe Clamp ø58.7 - ø63.5 mm
