Component Descriptions
06-237619-001 2-17 April 2020
2-4.10 Main and Reserve Nameplates
The main and reserve nameplates, Part Nos. WK-310330-000 and WK-310340-000 respective-
ly (Figure 2-21), are used to identify the primary and backup agent cylinders.

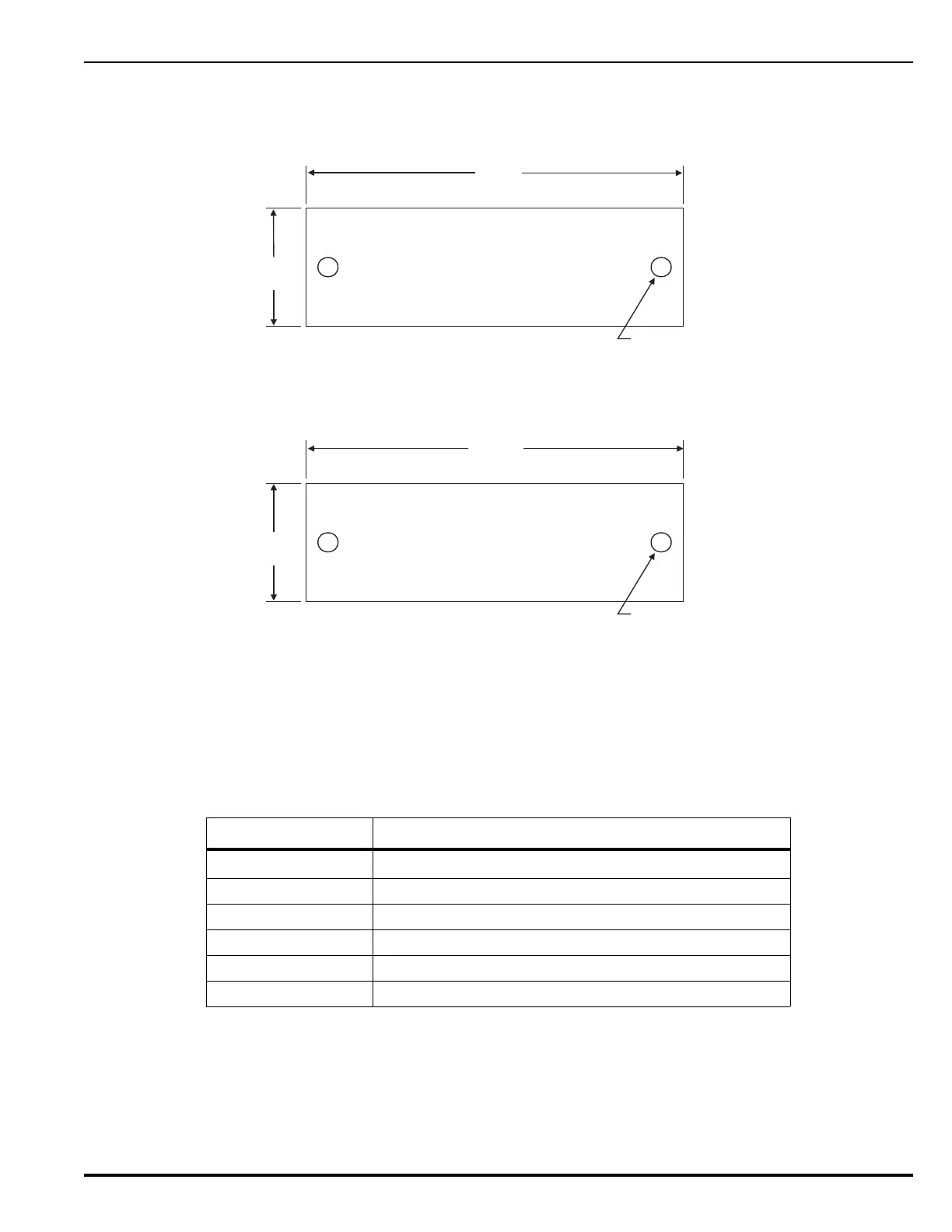

Figure 2-21. Main and Reserve Nameplates
2-4.11 Caution Signs
There are two warning signs available for use with Kidde IGS systems, a caution sign used for
entrances to the protected area, and one for the exits from the protected area.
Table 2-11. Kidde IGS Discharge Accessories Part Numbers
Part Number Description
01-2173-0200 Caution Sign - Evacuate on Alarm Sound (BS Compliant)
01-2172-0200 Caution Sign - Vent Keep Clear
K4076-2 Caution Sign - Entrance Inert System (BS Compliant)
K4076-1 Caution Sign - Manual Actuation Point (BS Compliant)
85-909300-001 Caution Label - Entrance
85-909300-002 Caution Label - Exit
RESERVE
MAIN
(2) 9/32 in. (7 mm) DIA
MOUNTING HOLES
5 in.
(127 mm)
1-5/8 in.
(41 mm)
1-5/8 in.
(41 mm)
5 in.
(127 mm)
(2) 9/32 in. (7 mm) DIA
MOUNTING HOLES
