2-11.2 Front Clamping Bar
The front clamping bar presses the cylinders against either the rear wooden spacer or center
wooden spacer.

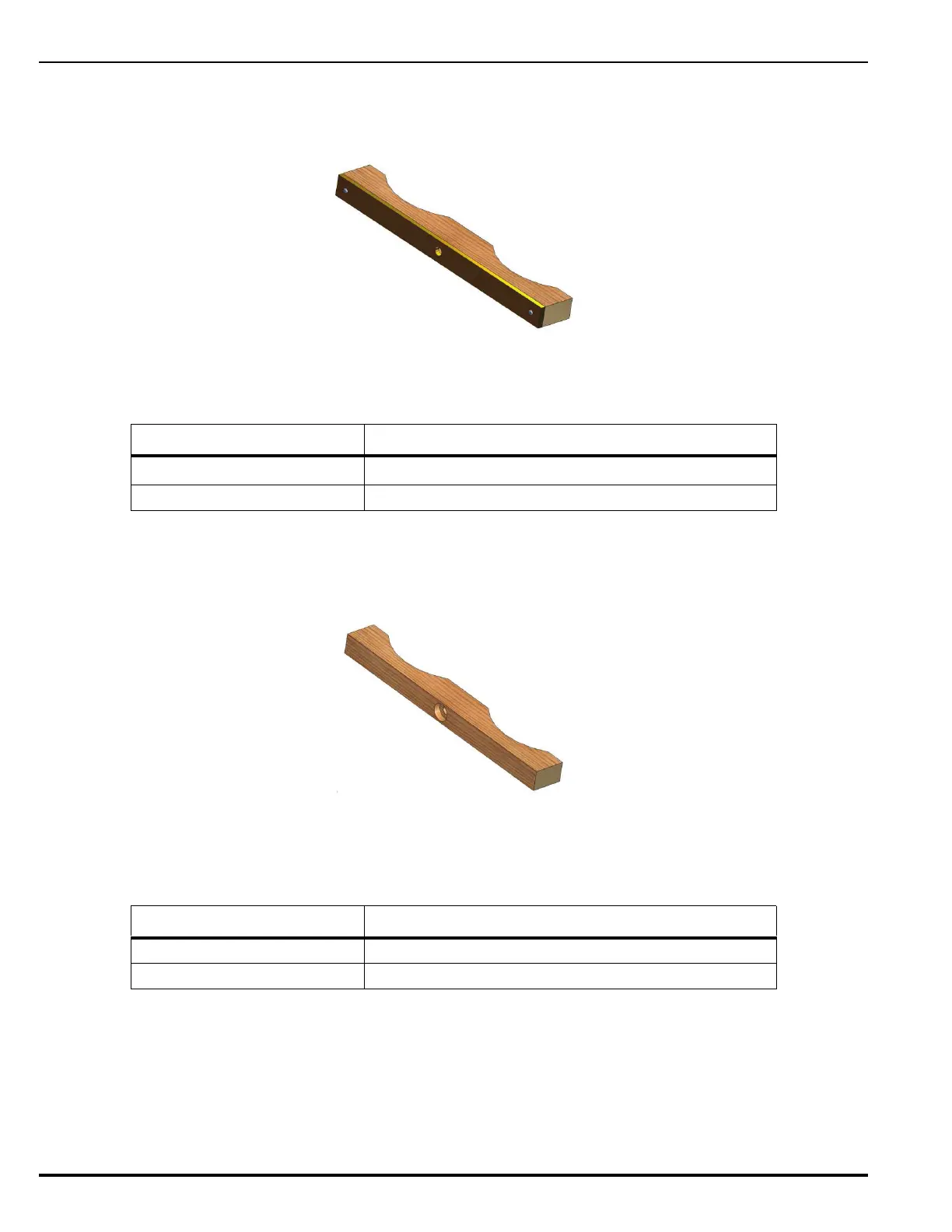

Figure 2-45. 2 Cylinder Front Clamping Bar
2-11.3 Rear Wooden Spacer
The rear wooden spacer sits between the cylinder and the Unistrut.
Figure 2-46. 2 Cylinder Rear Wooden Spacer
Table 2-31. Kidde IGS Front Clamping Bar Part Numbers
Part Number Description
03-8266-0000 Clamping Bar 1 x 2 for 80 L Cyl (Front)
03-8267-0000 Clamping Bar 1 x 3 for 80 L Cyl (Front)
Table 2-32. Kidde IGS Rear Wooden Spacer Part Numbers
Part Number Description
03-8162-0000 Wooden Spacer 1 x 2 for 80 L Cyl (Rear)
03-8163-0000 Wooden Spacer 1 x 3 for 80 L Cyl (Rear)
