Kidde IG-100 User Manual

Installation
06-237619-001 4-35 April 2020
4-14 TYPICAL WIRING DETAILS

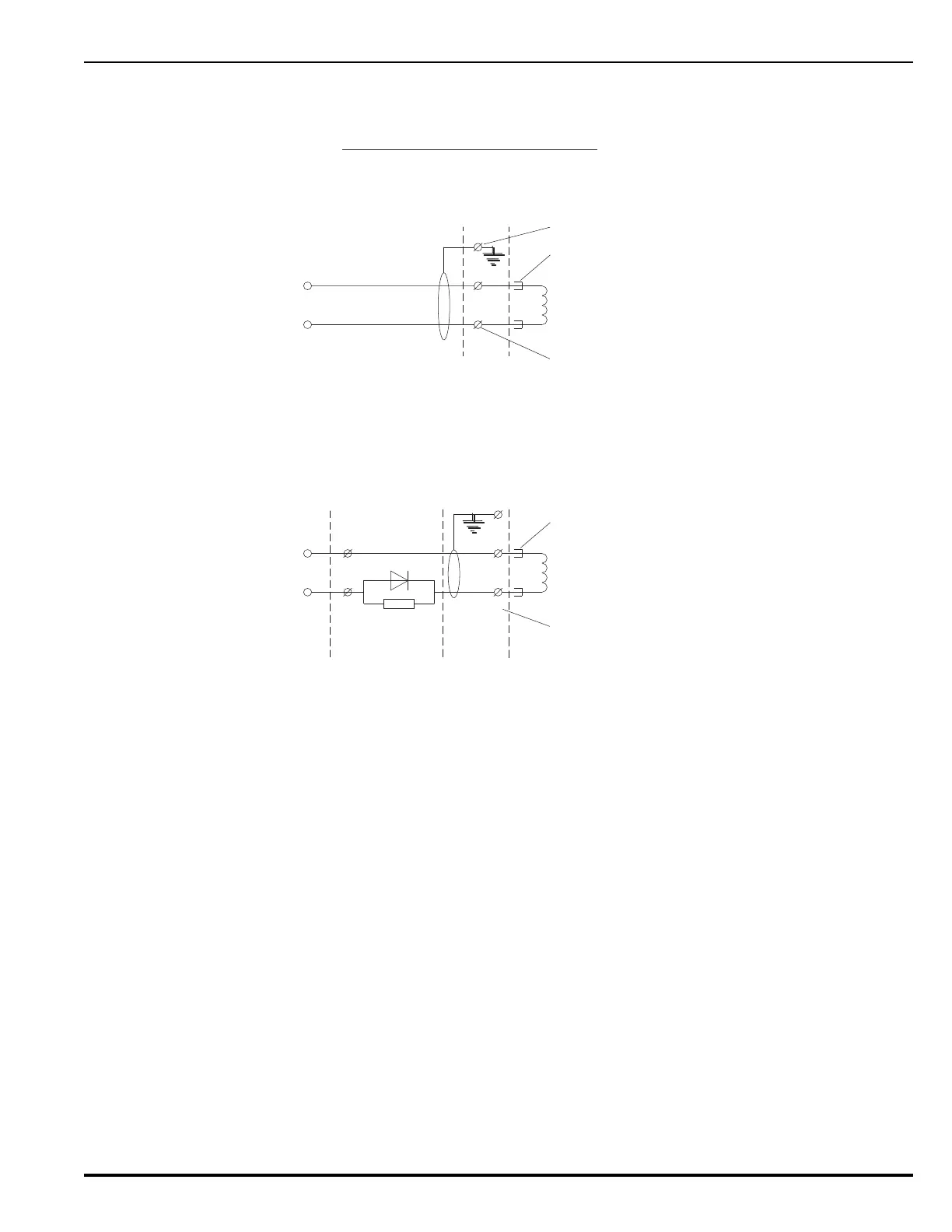

Figure 4-24. Typical Wiring Details
Note: For more details, refer to the control panel manuals.
COIL
CONNECTION COIL UNIT PLUG
1
2
(3)
IN-LINE RELEASING
DEVICE
+
-
PANEL OUTPUT JUNCTION BOX
SOLENOID CONNECTOR
-
PANEL OUTPUT
+
COIL
CONNECTOR 1 AND 2 FREE CHOSEN
CONNECTION COIL UNIT PLUG
SHIELD CONNECTOR
SOLENOID CONNECTION
24V DC SOLENOID CONNECTION TO NON POWER LIMITED RELEASE CIRCUITS:
24V DC SOLENOID CONNECTION TO REVERSIBLE VOLTAGE
MONITORING OUTPUTS, GK TYPE 3010-1010
OTHER EOL VALUES POSSIBLE, REFER TO PANEL SPECIFICATIONS.
IN-LINE RELEASING DEVICES TO BE POSITIONED CLOSE TO COIL.
NOTE: A MAINTENANCE BYPASS SWITCH MUST BE USED ON EACH
AGENT RELEASE CIRCUIT
