Component Descriptions
April 2020 2-30 06-237619-001
2-8.4.1 Lever Operated Control Head (P/N WK-870652-000)
Use the lever operated control head on top of the time delay to bypass the delay. The lever
operated control head is equipped with an operating lever that is secured in the closed position
by a safety pull pin. By removing the safety pin, the lever can be manually rotated to the open
position, thereby opening a valve inside the discharge delay, bypassing the delay. (see
Figure 2-37).

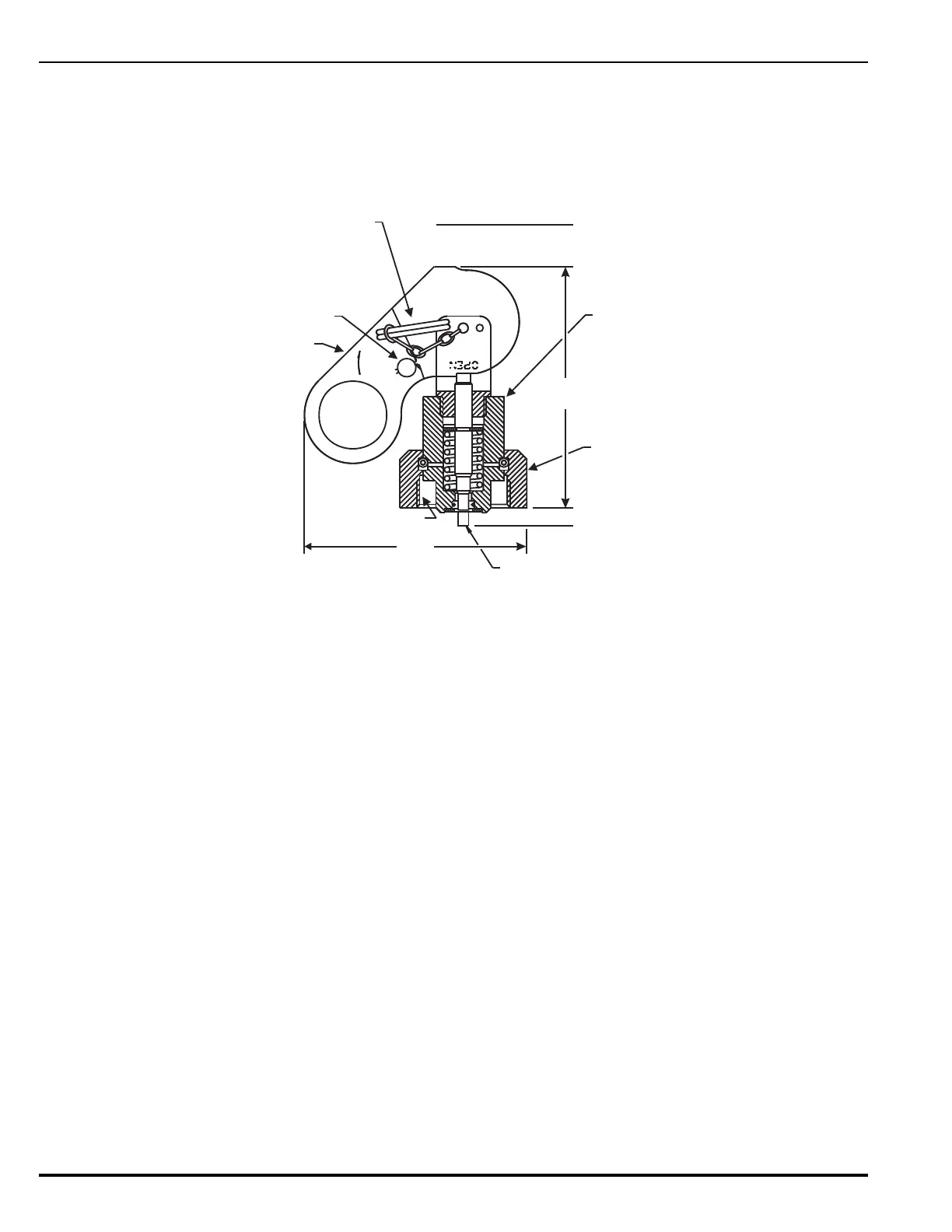

Figure 2-37. Lever Operated Control Head
CLOSED
OPENTO
LOCKING PIN
SEAL WIRE
LEVER
BODY
SWIVEL
NUT
1.50"
(38 mm)
1-1/4"-18 NF-3
FEMALE
3.17"
3.00"
(81 mm)
(76 mm)
ALLOW APPROX. 2" (50 mm)
CLEARANCE FOR
OPERATION OF LEVER
SET
OPERATED
STEM
