Component Descriptions
April 2020 2-10 06-237619-001
2-4 DISCHARGE ACCESSORIES
2-4.1 Discharge Hoses
Use the discharge hoses to route the Agent from the storage cylinders to the manifold piping.
The hose is connected to the discharge outlet of the Agent cylinder valve and terminates at the
system piping or discharge manifold (see Figure 2-12, and Table 2-8). Use the 16.1” (410 mm)
hose with 80L cylinders. A straight to straight hose option is available when needed.
Note: An alternate to the straight to straight hose (38-400110-300), is to use a hard pipe
(3/4" BSPT male) connecting the discharge port with a union at one end and coupling
at the manifold end.

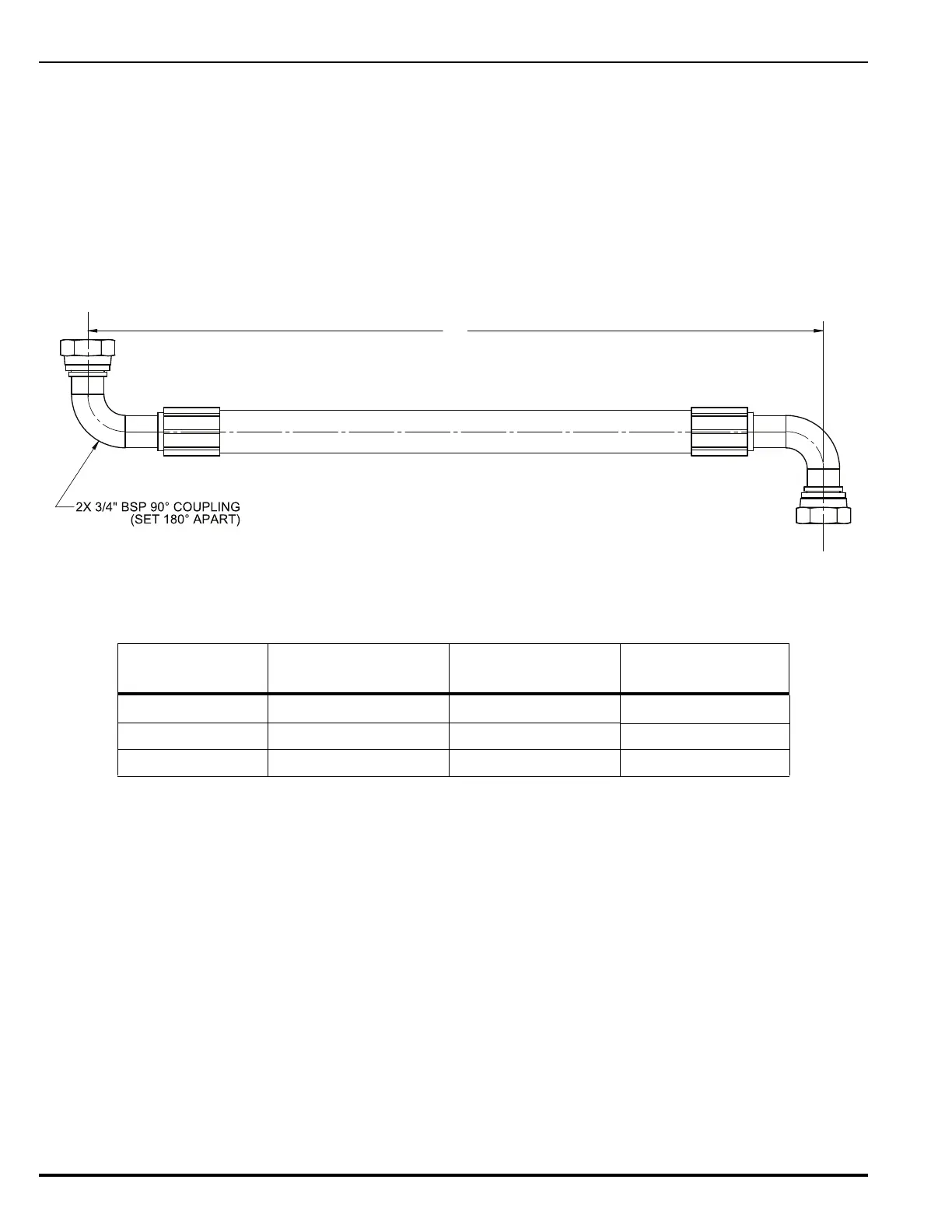

Figure 2-12. Discharge Hose with
90° to 90° Couplings
Table 2-8. Dimensions, Flexible Discharge Hoses
Part Number Connection Angle Dimension A
Min. Bend
Radius
38-400330-410 90° to 90° 16.1” (410 mm) 9.6" (240mm)
38-400330-510 90° to 90° 20.1” (510 mm) 9.6" (240mm)
38-400110-300 Straight to Straight 11.8” (300 mm) 9.6" (240mm)
