Component Descriptions
06-237619-001 2-11 April 2020
2-4.2 Manifold Safety Device
The manifold safety device (P/N 38-400006-002) consists of a safety disc housed in a threaded
body. The safety disc is designed to relieve at a pressure of 90-100 Bar. Manifold safety devices
are available with NPT or BSP threading.
Use the manifold safety device in systems with selector valves and lockout valves where the
design of the system creates a closed section of piping. The safety outlet is installed in the pip-
ing upstream of the valve(s) to prevent over pressurization in the event of entrapment of Agent
in the closed pipe segment. The safety device may also be piped to vent directly to atmosphere
or to vent to the pipe network downstream of any selector valve.

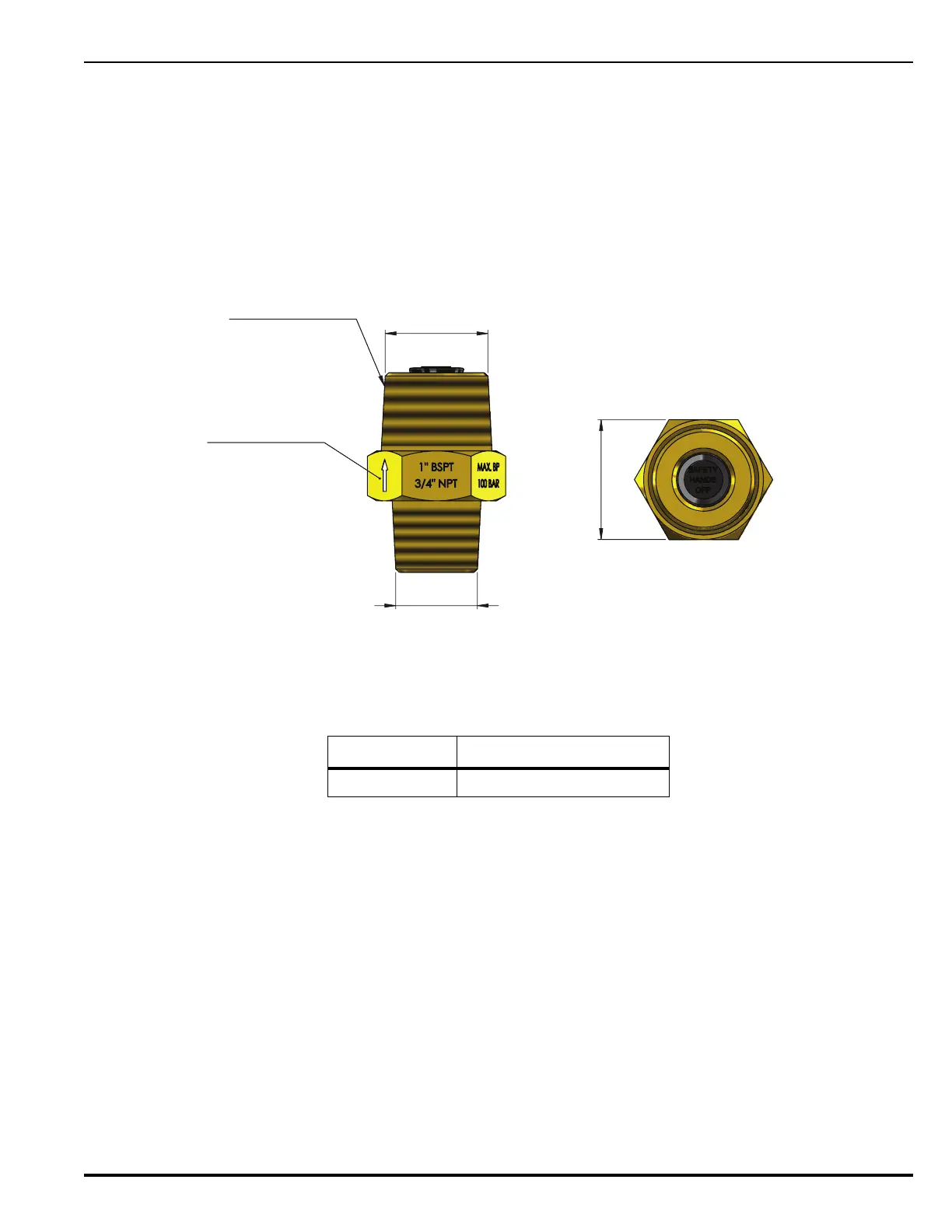

Figure 2-13. Manifold Safety Device
2-4.3 Manifold Pressure Gauge
The manifold pressure gauge (P/N 01-7221-0300) is a gauge that is connected to the manifold
to provide pressure indication.
Table 2-9. Kidde IGS Discharge Accessories Part Numbers
Part Number Description
38-400006-002 BSP Manifold Safety Device
1" BSPT
3/4" NPT
FOR ATTACHMENT
OF SOCKET OR ELBOW
DIRECTION OF RELIEF
36 A/F
OF SOCKET OR ELBOW
Vent This Side
to Atmosphere
Connect this Side
to System Piping
