2-11 RACKING COMPONENTS
The racking system for the Kidde IGS systems is modular and can be adjusted to fit any
number of cylinders in a variety of row combinations. This section outlines the components
used in the racking system. The components include:
• Section 2-11.1, Unistrut
®
Wall Rail
• Section 2-11.2, Front Clamping Bar
• Section 2-11.3, Rear Wooden Spacer
• Section 2-11.4, Center Wooden Spacer
• Section 2-11.5, Single Cylinder Clamping Bracket
• Section 2-11.6, Clamping Bolt
• Section 2-11.7, Endcover
• Section 2-11.8, Distance Pipe
2-11.1 Unistrut
®
Wall Rail
Unistrut is used in conjunction with cylinder bracketing to support the cylinders. Secure the
unistrut from a solid structure such as a brick or concrete wall or a free standing steel frame
structure secured to floor and ceiling where possible.
Note: The length of unistrut needed depends on the number of cylinders used, but is the same
whether using the clamps or the wooden racking components.

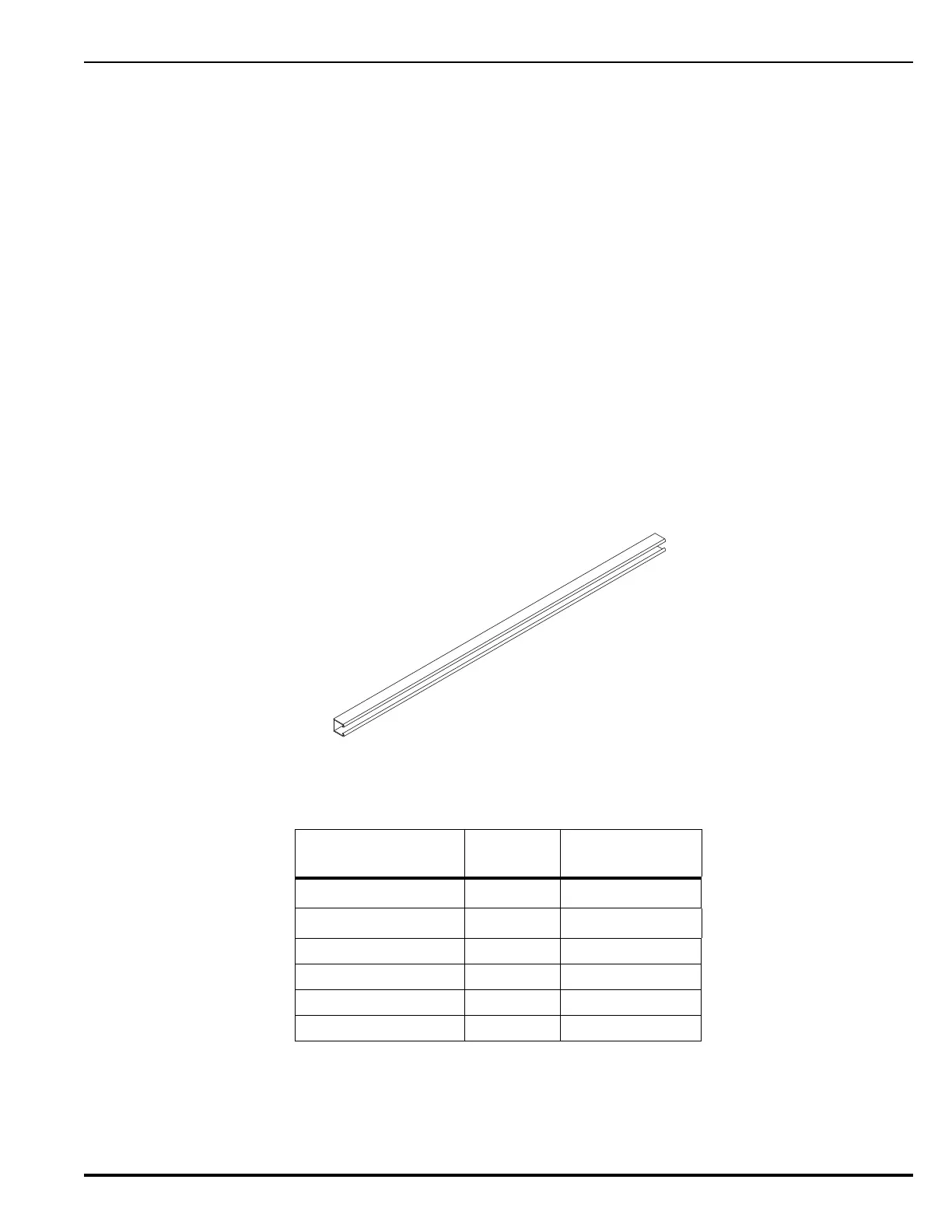

Figure 2-44. Unistrut
Table 2-30. Kidde IGS Unistrut Part Numbers
Part Number Length
Holds X 80 L
Cylinders
01-8121-1000 400mm 1
01-8122-1000 650mm 2
01-8123-1000 950mm 3
01-8124-1000 1250mm 4
01-8125-1000 1550mm 5
01-8126-1000 1850mm 6
