Installation
April 2020 4-8 06-237619-001
4-5.2 Racking Install Diagrams
Use the following diagrams when planning out the install.
4-5.2.1 Clamp Racking Layouts

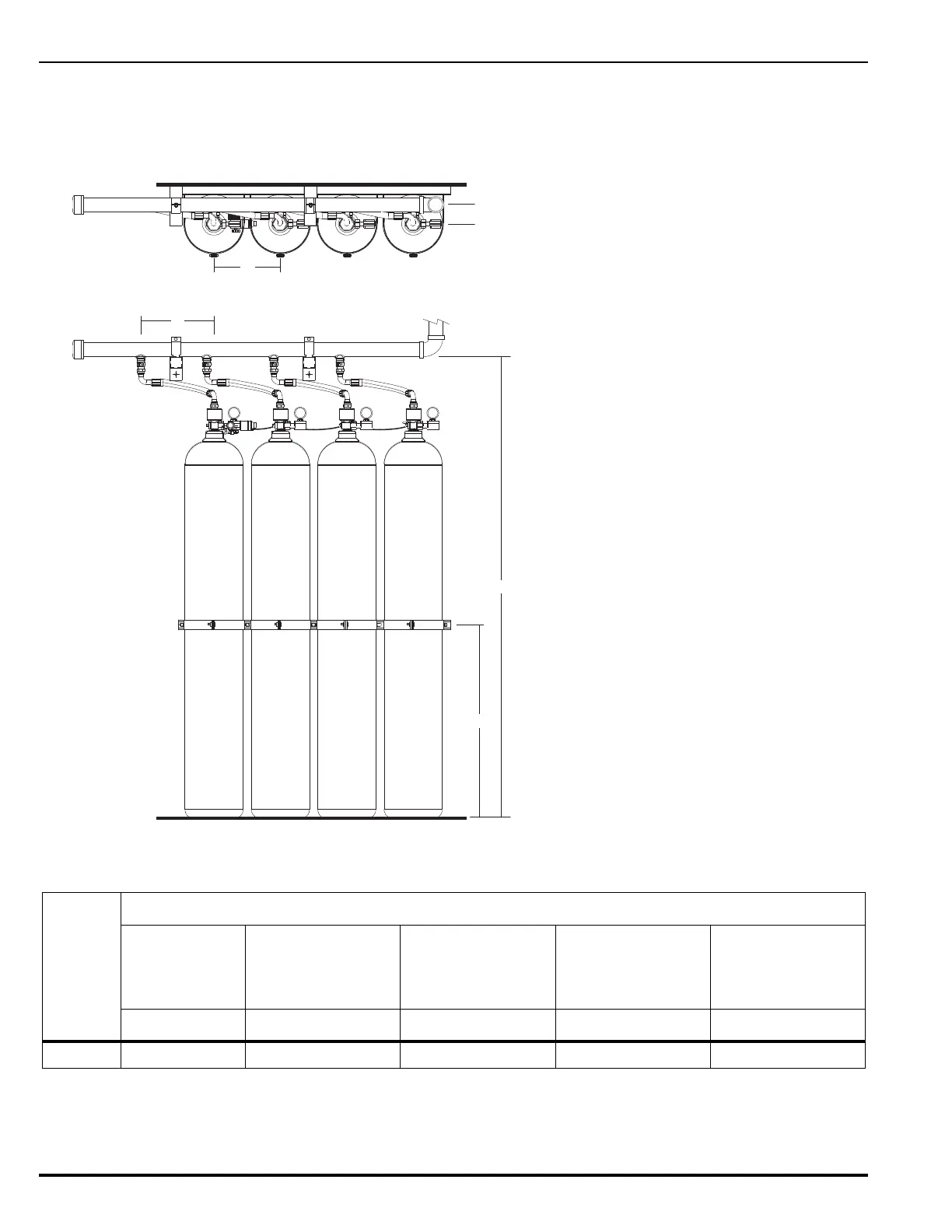

Figure 4-5. Single Row Racking System with Clamps
Table 4-6. Dimensions for Racking Systems with Clamps
Cylinder
Size
Dimension in inches (mm)
Floor to
Clamping Bar
Floor to Bottom of
Manifold
Center Cylinder to
Manifold Check
Valve
Cylinder Centers
(Side to Side)
Centre of Cylinder
to Manifold
Centre Offset
(Minimum)
AB C D E
80 L 43.3 (1100) 78.7 (2000) 14.4 (365) 12.0 (305) 3.9 (100)
Note:
• Manifolds can be offset Front or
rear of cylinder centre
• Manifolds can be offset to the
left (as illustrated) or to the
right of the cylinders.
