Component Descriptions
06-237619-001 2-7 April 2020
2-3.5 Actuation Hoses
The Actuation Hoses are used in multiple cylinder systems. Pressure is directed to the valve on
each agent cylinder using an actuation hose (see Figure 2-7, Figure 2-8, and Table 2-5). These
hoses include Quick Connect fitting for ease of installation and maintenance. The grove on the
festo connector provides additional grip surface when the connector is installed into the mated
connection.
Note: During discharge, a continuous pressure of 8 bar is required in the actuation hose. This
pressure is supplied from the Agent cylinder.

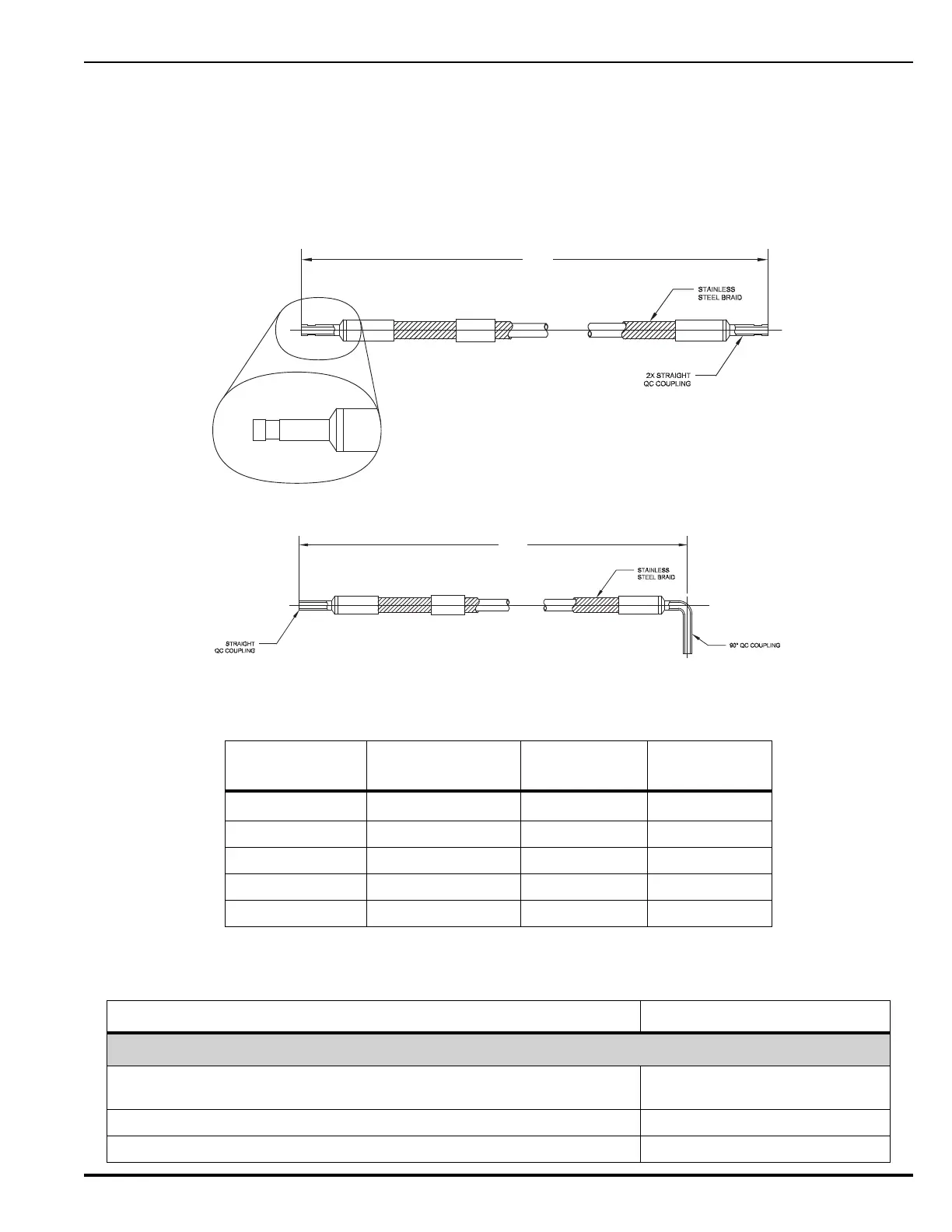

Figure 2-7. Flexible Actuation Hose with Straight to Straight Couplings
Figure 2-8. Flexible Actuation Hose with
Straight to 90° Couplings
When connecting multiple cylinders using the actuation hoses, use the following:
Table 2-5. Dimensions, Flexible Actuation Hose
Part Number Connection Angle Dimension A
Min. Bend
Radius
38-401110-400 Straight to Straight 15.75” 3" (76 mm)
38-401110-500 Straight to Straight 19.68” 3" (76 mm)
38-401110-600 Straight to Straight 23.62” 3" (76 mm)
38-401130-600 Straight to 90° 23.62” 3" (76 mm)
38-401130-700 Straight to 90° 27.56” 3" (76 mm)
Table 2-6. Actuation Hose Usage
Connection Type Actuation Hose Used
80 Liter Cylinders
Release Unit to Cylinder Valve 38-401110-400
38-401110-500
Interconnecting Valves in the same row (inline valve to valve) 38-401110-500
Interconnecting Valves in different rows (inbetween cylinder rows) 38-401130-600
