Component Descriptions
06-237619-001 2-29 April 2020
2-8.4 Electric Control Heads Kit, P/N 85-890181-000
The Electric Control Head provides electric actuation of the 1040 cu. in. Nitrogen pilot cylinder’s
“I” valve or the 108 cu. in. Nitrogen pilot cylinder’s valve. It is operated electrically from a
detection and control system, a remote manual station, or locally with a manual lever on the
electric control head. See Figure 2-36 and Table 2-25.
The Electric Control Head kit includes the following items:

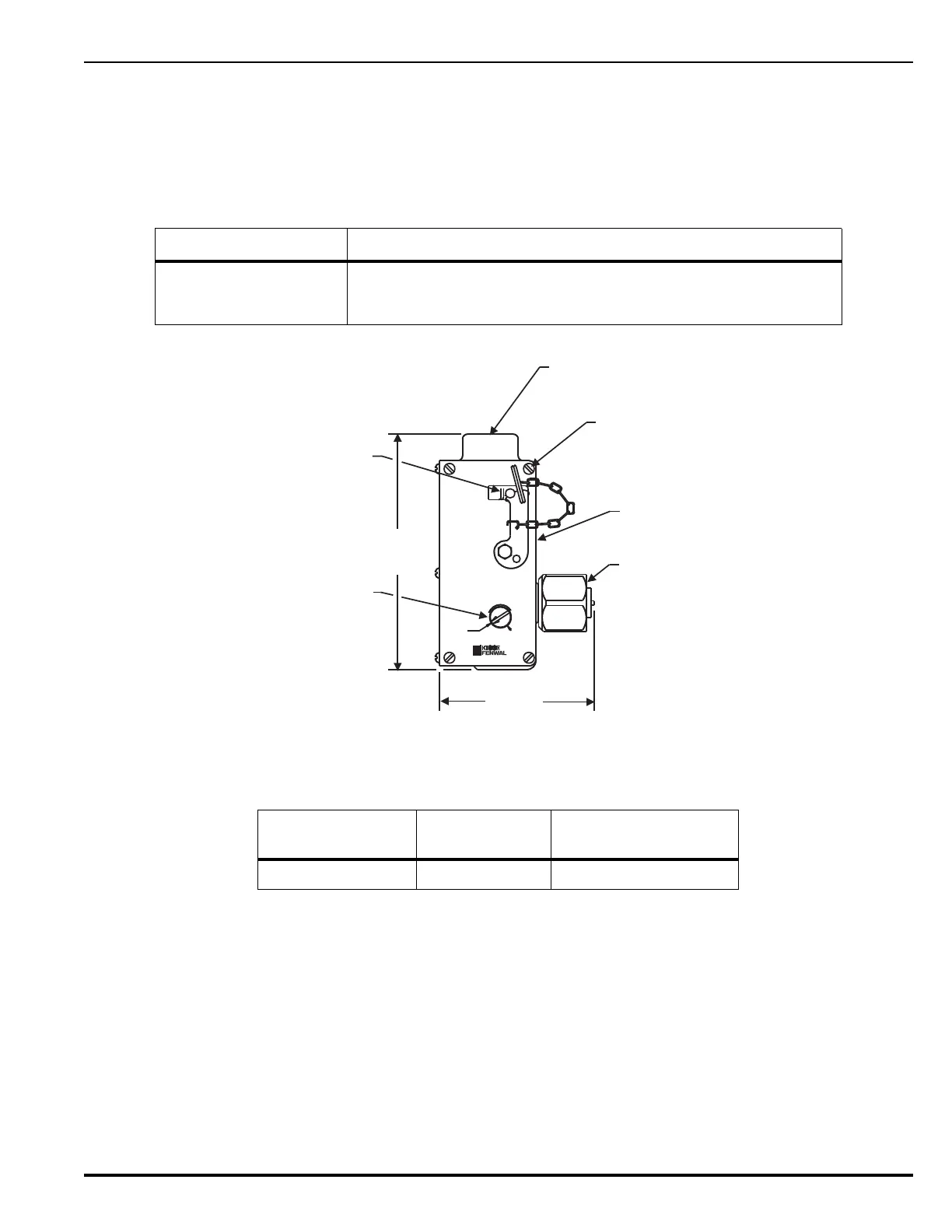

Figure 2-36. Electric Control Head
Part Number Description
85-890181-000 Kit, Includes:
Control Head Monitor, P/N 85-100000-100
Electrical Control Head, 24 VDC, P/N WK-890181-000
Table 2-25. Electric Control Head Specifications
Part Number
Nominal
Voltage
Current
WK-890181-000 24 VDC 2.0 A momentary
PU
ELECTRIC
CONTROL HEAD
VOLTS
AMPS
PART NO.
SET RELEASED
MADE IN U. S. A.
TO RESET
USE SCREWDRIVER
CONNECTION FOR FLEXIBLE
ELECTRIC CONDUIT -
3/4 in. (18 mm) NPT FEMALE
LOCKING PIN
LOCAL MANUAL
RELEASE LEVER
SWIVEL NUT
KIDDE-FENWAL, INC.
400 MAIN STREET
ASHLAND, MA 01721
INDICATOR AND
RESET STEM
6-3/16 in.
4 in.
(102 mm)
(157 mm)
SEAL WIRE
